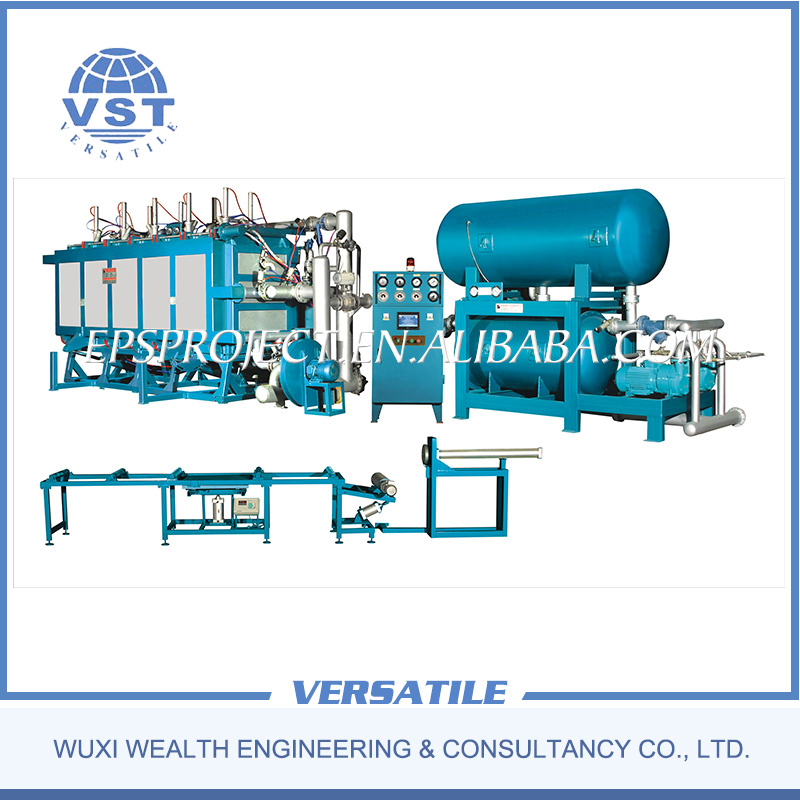

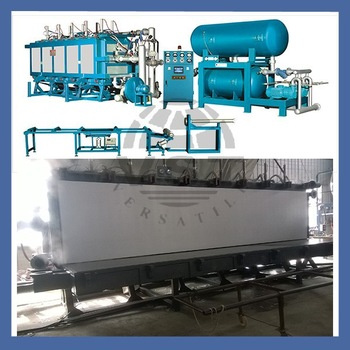

Main Features:
1,Strong Structure:
Machine is made of high-strength square tubes and thick steel plates.
Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
Machine with PLC and touch screen for easy operation.
TECHNICAL DATA |
|
|
|
|
|
|
Item |
| PSB-DF200 | PSB-DF300 | PSB-DF400 | PSB-DF600 | PSB-DF800 |
Mould Cavity Size |
| 2040*1240*630(mm) | 3060*1240*630(mm) | 4080*1240*630(mm) | 6100*(1240-940)*630(mm) | 8120*(1240-940)*630(mm) |
Block Size |
| 2000*1200*600(mm) | 3000*1200*600(mm) | 4000*1200*600(mm) | 6000*(1200-900)*600(mm) | 8000*(1200-900)*600(mm) |
Steam | Entry Consumption Pressure | DN40 20-30kg/cycle 0.8MPa | DN65 30-40kg/cycle 0.8MPa | DN100 45-55kg/cycle 0.8MPa | DN100 60-70kg/cycle 0.8MPa | DN150 80-100kg/cycle 0.8MPa |
Compressed Air | Entry Consumption Pressure | DN40 1-1.5m³ /cycle 0.6MPa | DN40 1.5-1.8m³ /cycle 0.6MPa | DN40 1.8-2m³ /cycle 0.6MPa | DN40 2-2.3m³ /cycle 0.6MPa | DN40 2.2-2.5m³ /cycle 0.6MPa |
Drainage | Steam Vent Blower exit | Φ 100mm Φ 100mm | Φ 125mm Φ 125mm | Φ 200mm Φ 150mm | Φ 200mm Φ 150mm | Φ 200mm Φ 150mm |
Throughout | 15kg/m³ | 12min/cycle | 15min/cycle | 18min/cycle | 18min/cycle | 18min/cycle |
Connected Load |
| 9.5Kw | 9.5Kw | 13Kw | 13Kw | 13Kw |
Overall Dimension |
| 4000*2150*2120(mm) | 5030*2270*2120(mm) | 6040*2270*2250(mm) | 8100*2500*3100(mm) | 11300*2600*3300(mm) |
Weight |
| 4200kg | 6000kg | 8500kg | 9500kg | 13800kg |
Room Height Required |
| 6000mm | 6000mm | 6000mm | 6000mm | 6000mm |
Fuyang Wealth Imp&Exp Co., Ltd. Was founded in 2009, dealing with different kinds of equipment and engineering projects. Our main products are EPS raw material production line, EPS machines, cold room, Sandwich panel line, and some food processing equipment etc. Apart from our main equipment, we also help clients to search professional manufacturer for their required products. We offer one-station service to our clients, including factory checking and selection, production follow-up, product inspection, container loading supervision, after-sales service.
We stick to the principle of Service first, Quality first and develop our business heartfully and responsibly. We have technical person to check factories, to inspect products, and to communicate with manufacturers. We pay whole life responsibilty to the products we sell to our clients. We sincerely hope establishing long and friendly business relationship with clients from all over the world.
For those who suffer from distinguishing suppliers from long lists in B2B websites, and who have large range of products request but hesitate to pay multiple visits in China due to distance and time cost, we could therefore serve as your deputy in sourcing in China. We will share with you our experience and knowledge in market, make factory vsit and arrange every details well for you in China. We will be fast responser for any of your communication.
We are looking forward to your cooperation!
