Product Specifications
| Prod Model: |
ES12-S/ES13-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Usage: |
Maximum Demand Meter |
Product Description

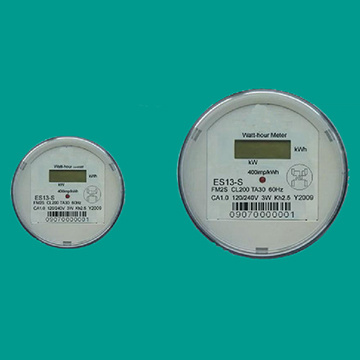

ES12-S/ES13-S
Single-phase Socket Type Electricity Meter
General Description
The Meter is a solid-state, single-phase residential watt-hour meter that provides utilities with unparalleled digital accuracy,reliability, serviceability and cost-effectiveness. It complies with ANSI C12.1, ANSIC12.10 and AN51 C12.20
Characteristics
l Electronic LCD register display format is optional.
l Active E.C measurement
l Reverse energy register (separately record or add to forward register optional)
l Maximum demand & instantaneous demand (optional)
l Display remains operative in the event of power failure (optional)
Technical Data
Connection Type 1 phase 2-wire or 3-wire
Meter from: 1s(2s)
Meter class: class 100, class 200
Voltage rating: 12/240V
Operating voltage: ±20%
Rated frequency: 50Hz or 60Hz
Accuracy class: 0.5 or 1.0
Operating temperature range: -30ºC to +70ºC
Current power consumption: <0.40VA
Voltage power consumption: <0.5W, <4VA
Dielectric strength: 4KV 1min
Impulse Voltage: 6KV
Relative humidity: ≤95%
