Esp Cable Protectors
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |

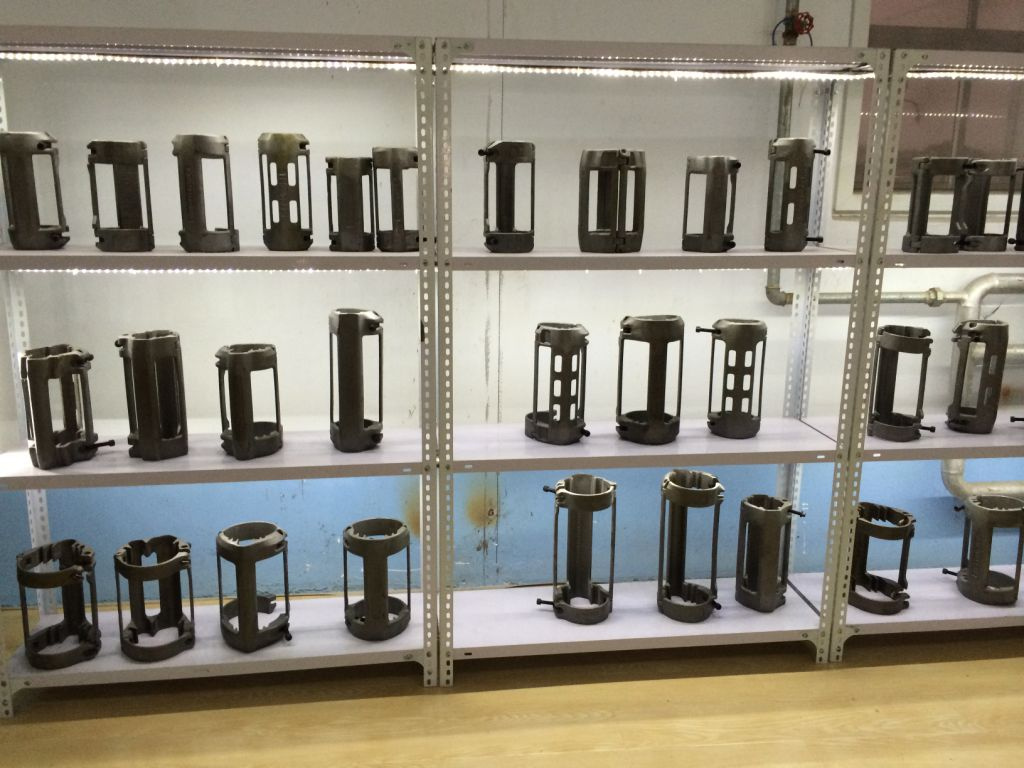

ESP cable protectors:
ESP cable protectors are reliable products to protect cable, control line and hydraulic line during oil production and drown-welling. Now both the outlook and property have been improved greatly. Our products are recognized well by our users not only in China, but also Europe and Middle East.
|
Pipe Size |
Connection type
of Tubing |
Cables |
Length
(mm) |
Max. Projection Diameter (mm) |
|
2-7/8" |
UP
TBG(EUE) |
No. 1, No. 2 and No. 4 flat cable |
227 |
142 |
|
No. 1, No. 2 and No. 4 round cable |
227 |
142 |
TBG
(EUE) |
No. 1, No. 2 and No. 4 flat cable |
225 |
137 |
|
No. 1, No. 2 and No. 4 round cable |
225 |
144 |
|
FOX |
No. 1, No. 2 and No. 4 flat cable |
225 |
132 |
|
No. 1, No. 2 and No. 4 round cable |
225 |
140 |
|
NK3SB |
No. 1, No. 2 and No. 4 flat cable |
325 |
135 |
|
No. 1, No. 2 and No. 4 round cable |
325 |
140 |
|
3-1/2" |
UP
TBG(EUE) |
No. 1, No. 2 and No. 4 flat cable |
240 |
154 |
|
No. 1, No. 2 and No. 4 round cable |
240 |
163 |
TBG
(EUE) |
No. 1, No. 2 and No. 4 flat cable |
234 |
148 |
|
No. 1, No. 2 and No. 4 round cable |
234 |
156 |
|
FOX |
No. 1, No. 2 and No. 4 flat cable |
280 |
135 |
|
No. 1, No. 2 and No. 4 round cable |
280 |
145 |
|
VAM |
No. 1, No. 2 and No. 4 flat cable |
308 |
140 |
|
No. 1, No. 2 and No. 4 round cable |
308 |
155 |
|
NK3SB |
No. 1, No. 2 and No. 4 flat cable |
313 |
140 |
|
No. 1, No. 2 and No. 4 round cable |
315 |
157 |
|
BGT1 |
No. 1, No. 2 and No. 4 flat cable |
270 |
140 |
|
4-1/2" |
UP
TBG(EUE) |
No. 1, No. 2 and No. 4 flat cable |
250 |
188 |
|
No. 1, No. 2 and No. 4 round cable |
253 |
172 |
TBG
(EUE) |
No. 1, No. 2 and No. 4 flat cable |
245 |
160 |
|
No. 1, No. 2 and No. 4 round cable |
245 |
180 |
|
FOX |
No. 1, No. 2 and No. 4 flat cable |
315 |
162 |
|
No. 1, No. 2 and No. 4 round cable |
312 |
180 |
|
VAM |
No. 1, No. 2 and No. 4 flat cable |
340 |
162 |
|
No. 1, No. 2 and No. 4 round cable |
340 |
185 |
|
NK3SB |
No. 1, No. 2 and No. 4 flat cable |
332 |
168 |
|
No. 1, No. 2 and No. 4 round cable |
358 |
185 |
| Prod Model: |
3-1/2", 4-1/2", 2-7/8" EUE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Oil (',Gas) Production Machinery |
| Certification: |
ISO |
| Type: |
Esp Cable Protector |
Qingdao O&G International Trading Co., Ltd. Specializes in marketing of oilfield drilling equipment and complete drilling rig packages. We supply the full line of AC and SCR drive rigs, conventional and fast moving rigs (truck-mounted, trailer-mounted and skidding type rigs), drilling equipment, rig accessories and parts.
O&G provides a full line of API certified drilling rig components and drilling equipments. These include drawworks, mud pumps, top drives, rotary tables, traveling system, hydraulic and manual handing tools, BOP's, manifold and closing units, mud system and solid control equipment. We also provide rig accessories (air hoists, wireline units, etc. ) and mud pump parts.
1. Mud Pumps, Plunger Pumps and Parts
O&G specializes in supplying quality mud pumps, plunger pumps and expendable parts.
The made-in-China mud pumps and plunger pumps meet the requirements of the same manufacturing technique and quality level as those of mud pumps made by OEM. They feature advanced structural design, reliable use, easy maintenance and compact occupied area. Now, F series mud pumps (from F-500 to F-1600), PZ-9 mud pumps, PAH-275 mud pumps, HT400 plunger pumps, W600 plunger pumps have been produced and sold to many abroad oilfields. O&G's export-orientated mud pump parts, including liners, pistons, piston inserts, valve inserts, oil seals, rod packing, fluid ends, and also power ends, such as crank shaft, pinion gear and bull gear, cross head, belt wheel etc...All of them meet or exceed API standards and have been exported to USA, Canada, Middle East, Poland, Romania and many other countries.
2. Drilling Rig Packages
O&G specializes in supplying quality mechanical, DC or AC drilling rig packages including truck or trailer mounted rigs, skid mounted rigs, XJ250, XJ350, XJ450, XJ550, XJ650, XJ750, ZJ20, ZJ30, ZJ40, ZJ50, ZJ70, etc...We can supply different types of drilling rigs such as sling-shot type, swing up type, box on box type, telescoping trailer mounted type, cantilever type and bootstrap type. Our quality and reliable drilling rigs drill up to 7000 meters and are suitable for different applications for land shallow water and offshore. Our drilling rigs conform to API specifications and are allowed to use API monogram.
3. Drilling Equipments
O&G specializes in supplying quality drilling equipments including Drawworks, Crown blocks, Traveling blocks, Hooks, Swivels, Rotary tables, Disc brakes, API drilling lines, Drilling motors, Top drives, etc. All the drilling equipments we supply conform to API standard and have been exported to many countries such as USA, Canada, Middle East, India, Malaysia and are high praised by the customers.
4. Well Control Equipments
O&G specializes in supplying quality well control equipments including BOP stacks, choke and kill manifolds, BOP handling systems and BOP closing Koomey control systems. The BOP stacks we supply are either metric or imperial. Consumable parts of the BOP are interchangeable with American OEM parts.
5. Handling Tools
O&G specializes in supplying all kinds of quality handling tools, including drill pipe tongs (hydraulic or manual), elevators, Hydraulic Cathead, Pneumatic spinning wrenches, Kelly spinners, Roller kelly bushing, Master bushing, DDZ type Drill pipe elevators, Side door casing elevators, Safety clamps, Rotary slips, Drill collar slips, etc. The handling tools we supply conform to API standard and are world wide used.
6. Rig Accessories:
O&G specializes in supplying rig accessories including wireline unit, air hoist, hydraulic hoist etc. The rig accessories we supply comform to API standard and are world wide used.
