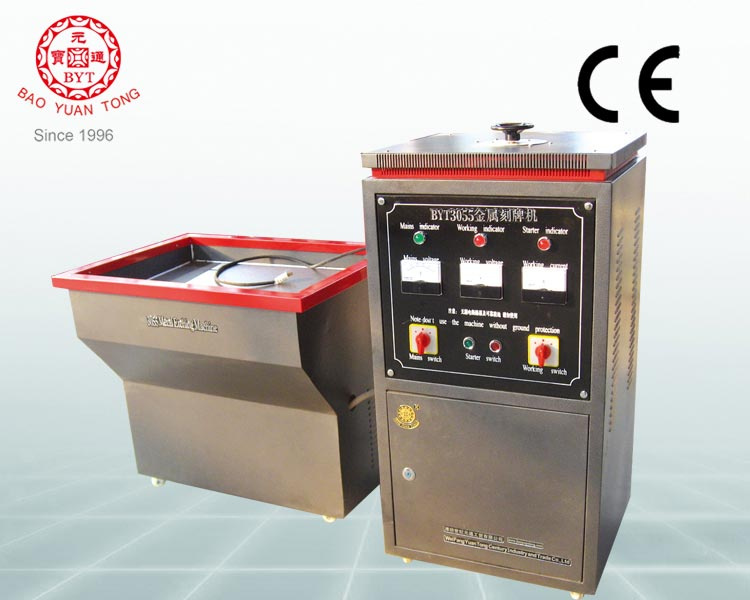

Etching Machine, Zinc Plate Etching Machine

Product Specifications

Prod Model:	BYT-3055
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	3kw
Warranty:	1 Year
Engraving Machine Type:	Metal Etching Machine
Control:	CNC
Usage:	Metal
Voltage:	220V 50Hz 1p, Adjustable
Working Area:	1.22*3.05m
Packing Size:	2cbm
Weight:	150kg
Material:	All Conductive Metal
Type:	Electrical Etching Machine
Object:	Metal

Product Description

etching machine,zinc plate etching machine

Features:
1) Work by ionization effect to strip the metal

2) Processing all conductive metal, like stainless steel, titanium plate, copper, aluminum, etc.

3) The processing area is not limited.

4) The etching depth can be controlled at will.

5) Etch various patterns and letters on metal, can get colored etching products by painting.

6) Ultra-precision in image-text processing and strong power.

7) High speed, it takes 3-10mins to etch a 40x60cm plate.

8) You can arbitrarily choose the place, only 5 square meters is ok.

9) You can get high profit with low investment. Power consumption is 1-2 degree/hour, and the material is easy to get.

10)Environmental friendly. Without excitant odour, non-toxic, no corrosion edge and leakage phenomenon

11) It could work all day long without any break.

12) One person can finish whole working process, saving manpower.

Application:
BYT3055 metal etching machine is used to etch patterns,letters and other types of characters directly into metal sheeting surface.

Suit for the different size of etching, such as advertisement,sign brand, equipment panel , metal crafts & gifts, etch various patterns and letters in the stainless steel, titanium board, zinc,aluminium, magnesium, gold, silver, copper and any conductive metal.

Model	Overall size	Power	Weight	Voltage current
BYT-3055	530*590*1130mm/640*850*820mm	3kw	150kgs	Adjustable as your need(common used is 220v50hz)

Comparison between BYT Series Metal Etching Machine and Traditional:

Content	BYT series Metal etching machine	Traditional Corrosion craft
Working scope & processing mode	Process all metal, simple operation, the processing area is not limited, the depth to be etched can be controlled at will, which is easy to use, convenient and quick.	Only some active metal is suitable, and it's danger to operate, it's hard to process big label. You must compound corrosive liquid each time, it is very trouble .
Technical process	Environmental friendly craft, some new types of decorate materials (titanium plate, stainless steel plate )are also suitable. Save many complex process, such as cleaning the surface, polishing and glossy overprint.	After corrosion, you also need to clean up the surface and polish the surface.
Process cost	Can rapidly process titanium plate, stainless steel plate, copper, and aluminum plate. The area is wide, and there is broad market, every hour power consumption is only 1-2 degrees, the cost is low.	Suitable for processing copper and aluminum plate, but the price of copper and aluminum sheet is getting higher, which makes the processing materials narrower. The price of raw material is also raised, which makes the processing cost greatly increased.
Scrap rate	Simple to operate and easy to learn, no corrosion edge, no leakage, low scrap rate.	It is not easy to control the processing  process, layout protective film may easily react with corrosion liquid, which causes corrosion  edge, and the scrap rate is very high.
Pollution	Without excitant odour, non-toxic, no corrosion edge and leakage.	Strong corrosion, pungent smell. Do harm to human health and environment .
Working condition	You can arbitrarily choose the working site, housing and door head room, the working site is clean, only 5 square meters is ok.	Need larger venues and Do harm to human health.
Labor intensity	low	high
Processing time	3-10min per piece(40x60cm).	Take long time to process one piece.

Afte-sales service

1.One year quality guaranty. The machine with main parts (excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agent price when you need replacement.

 5.Engineers speaking English 12 hours on line service each day, free technical support. We
will solve your problems immediately by E-mail, fax, MSN, Skype, or telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.
