Product Specifications
| Prod Model: |
OM-E01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Workstation |
| Type: |
Fiber |
Product Description

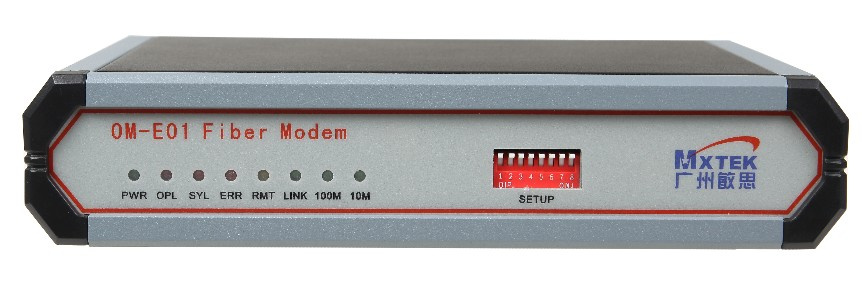

Ethernet Modem
Item No.: OM-E01
Ethernet modem is the device which to modulate a N× 64K Ethernet data signal directly over single- or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into an E1 data signal. E1 interface may be directly connected with the E1 interfaces of image and data terminals or the WAN ports of MUX, exchanger and router for a dedicated network setup or a LAN connection.
Ethernet Fiber Modem provides 64K~2M bandwidth data transmission channel for Ethernet over fiber optic cable, it is suitable for many situations, such as LAN expansion, networks isolation, WAN access, it can connect Ethernet to telecom transmission network, special network or WAN.
Features of Ethernet modem
1. Ethernet modem can be connected with E1 optical modem, V. 35 optical modem and FE1/10BaseT protocol converter.
2. Realize E1 signal transmitting over fiber in transparent and multi-frame mode, and wideband is 64Kbps~2048Kbps
3. Any frame number can be set up at random during transmit in multi-frame mode
4. Support Ethernet auto-sensed and full/half duplex function
5. Support MDI/MDI-X auto-sensed
6. Enable to manage and supervise working in Internet system as well as the situation of the device settings
Optical interface of Ethernet modem
Transmit Mode: Single/ Multi-mode
Module: Single/Double Fiber
Interface: FC(SC/ST optional)
Wavelength: 1310nm/1550nm
Distance: 2Km/40Km/60Km/120Km
General characteristics of Ethernet modem
Power: 220V± 20%, -36 ~ -72V
Power Consumption: < 5W
Environment Temperature: 0° C~60° C
Size: 205x130x45mmNet
Weight: 600g
Packing List of Ethernet modem
Ethernet Optical Modem
One Power cord (Note: -48V no with power cord)
Manual book
