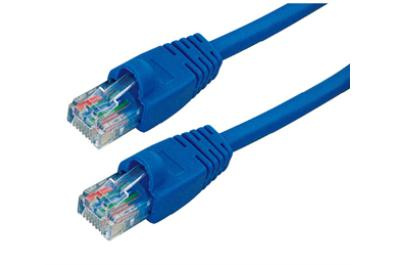

1.Used in Ethernet
2.CCA and CU conductor
3.RoHS Complied PVC, PE or LSOH Jacket
4.Complied to TIA/EIA-568B & ISO/IEC 11801
Application
Ethernet 10Base-T,100Base-T4,100Base-TX,
100Base-VG-ANYLAN, 155 Mbps ATM,
622Mbps ATM, 1000Base-T
Telephone
Multimedia
Trunk wiring
10Base-T,100Base-T4,100Base-TX,
100Base-VG-ANYLAN, 155 Mbps ATM,
622Mbps ATM, 1000Base-T
Technical Parameters
1)Each pair individual shielded to perform excellent protection against noise.
2)Triple-layer extrusion (Skin/Foam/Skin) on insulation core to perform perfectattenuation
3)10dB ACR at 600MHZ Positive ACR at 750MHZ
4)Tested up to 750MHZ
5)LSOH version in conformity with IEC 332.3 Cat. C fire retardancy requirements
Performance Data Sheet
1) Characteristic Impedance: 100~150 Ohms @ 64KHZ
85~115 Ohms @1~300MHZ
75~125 Ohms @300~600MHZ
2)Velocity of Propagation: 0.78C @1~100MHZ (This cable comes with a retail packagefor the length 3, 7, 15, 25, and 50) blue, black, green, grey, purple, pink,orange, red, white, and yellow colors are available
Cable Parameters:
Item No. | Construction | Nominal Conductor Dimension
(MM) | Nominal Insulation Dimension
(MM) | Pairs | Overall Diameter
(mm) | Type of Jacket | Remark |
| 2001 | UTP | 0.575 | 1.03 | 4 | 5.8 | PVC/LSZH |
|
| 2003 | UTP | 0.575 | 1.03 | 4 | 6.1 | PE | Outdoor cable |
| 2006 | UTP | 0.575 | 1.04 | 4 | 7.5 | PVC+PE | Outdoor Double Jacket |
| 2005 | UTP | 7/0.25 | 1.06 | 4 | 6.3 | PVC/LSZH |
|
Technical data
Inner Conductor | Number of Pairs | 4 |
| Total Number of Conductors | 8 |
| Conductor Material | BC-Solid Bare Copper |
| Wire Gage | 23AWG |
| Conductor Diam. (ø)mm | Φ0.575±0.03mm |
| Elongation | ≥15% |
| Insulation | Insulation Material | HDPE – Polyethylene |
| Nom. Thickness | 0.233mm |
| Insulation Dia. | Φ1.03±0.05mm |
| Elongation | ≥300% |
| Color Cord | Pair 1: White-Blue & Blue;
Pair 2: White-Orange & Orange
Pair 3: White-Green & Green;
Pair 4: White-Brown & Brown |
| Paired | Length of Lay | <20mm |
| Spacer | Material | HDPE |
| Diameter | 4.5*0.45 |
| Cabling | Order of the Pair | See the Cross Section |
| Out Sheath | Sheath Material | PVC ( Flame Retardant / RoHS …) |
| Color | Blue |
| Rip Cord | 200D×3 |
| Nom. Thickness | 0.60±0.05mm |
| Min. Thickness | 0.55mm |
| Max. overall Dia. | Φ6.0±0.3mm |
