Product Specifications
| Prod Model: |
TP832-416 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
Expandable,4 to 8 Co Lines,16 to 32 Exts |
| Wireless: |
1-4 GSM /CDMA Trunk Lines(Optional) |
| Transfer To Mobile: |
Yes |
| External Broadcasting Music: |
Yes |
| Caller ID: |
Yes |
| Intercom System: |
Yes |
| PC Billing Software Management: |
Yes |
| Backup Battery: |
Yes |
| Ogm: |
60s Three Paragraph |
| Application: |
Universal Type |
| Information Transmission Method: |
Simulation |
| Connection Mode: |
Time Connection |
| Brand: |
Excelltel or OEM |
| Type: |
Pabx |
Product Description

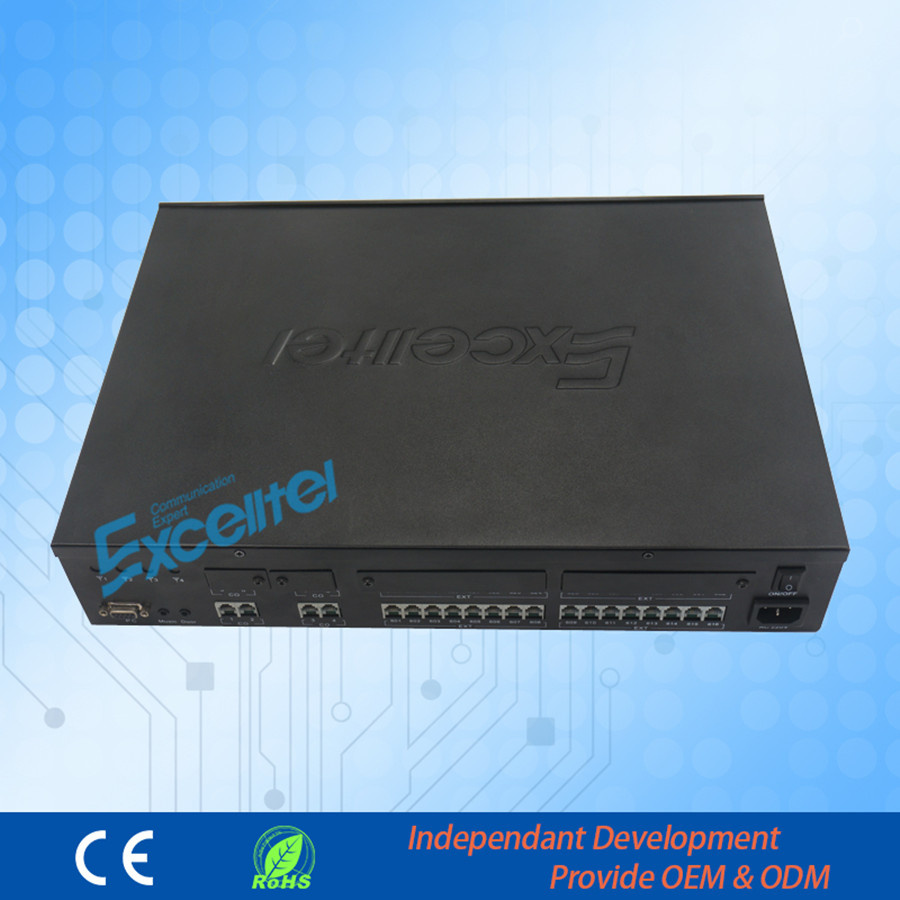

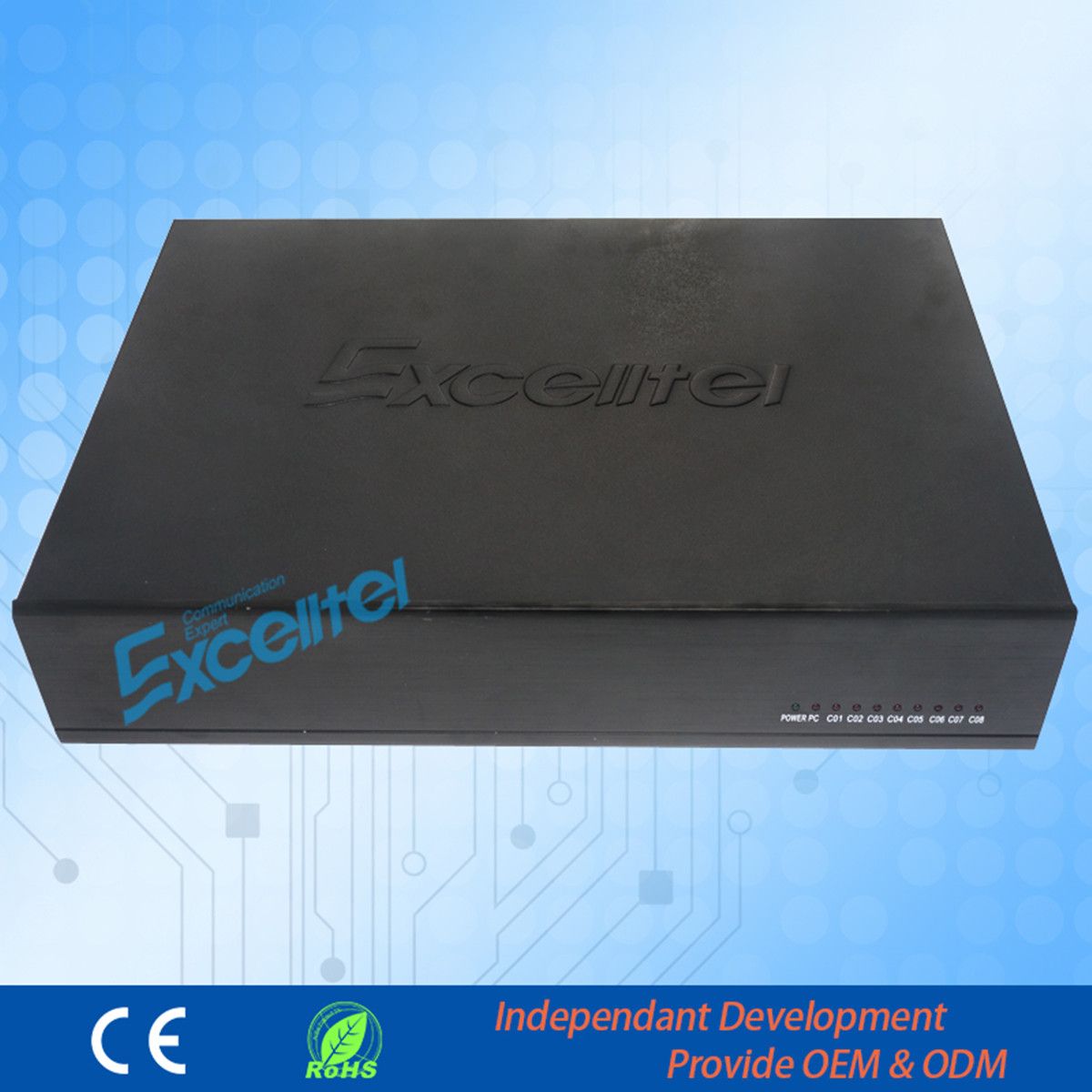

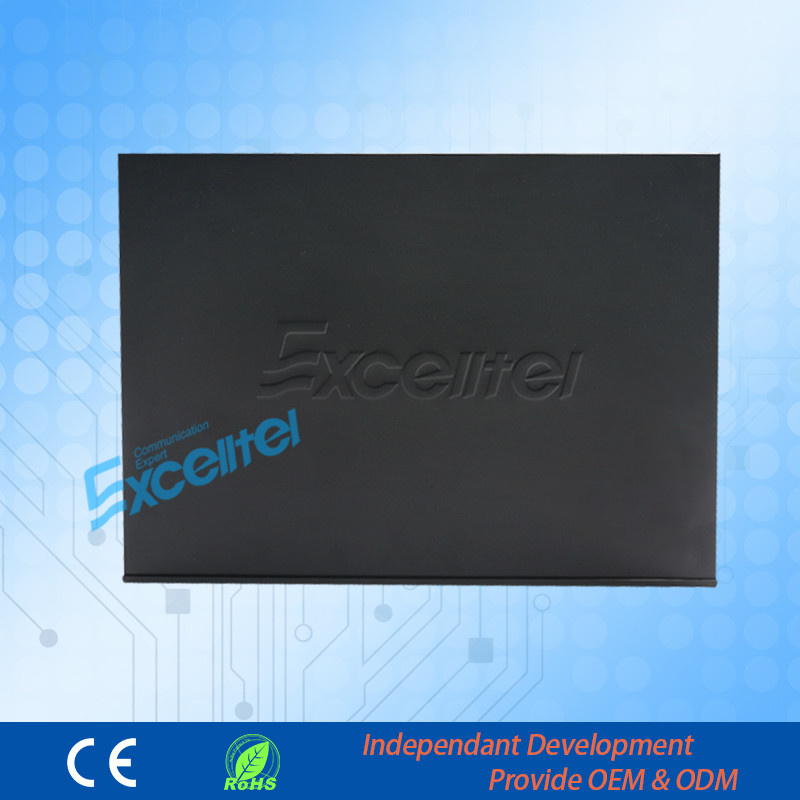

Excelltel PABX Hybird telephone system GSM Wireless Metal pabx TP832 -416 PC billing software management/External broadcasting music
Model name: TP832-416Capacity:
4 to 8 CO lines, 16 to 32 extensions. Expandable2 CO lines per CO card
8 extension line per extension card
1-4 GSM /CDMA trunk (optional)Function:
PC Billing Software ManagementBackup battery External broadcasting music
OGM: 60s three paragraphCaller ID 7 Multiple Communications ChannelBasic Functions:
| Capacity | CO Capacity(min/max) | 4/8 |
| Extension Capacity(min/max) | 16/32 |
| Expandability | Yes |
| No.of Port on C.O. Card | 2 |
| No.of Port on EXT. Card | 8 |
| Wireless Expansion Board | optional |
| Wireless Trunk type(GSM/CDMA) | GSM/CDMA |
| Max Wireless Trunk Lines | 1-4 |
| External Hardware Interface | Keyphone Interface | optional |
| Door Phone | Yes |
| Door Lock Opener | optional |
| External Broadcasting Interface | Yes |
| External Music On Holding | Yes |
| RS232 Series Port | optional |
| Backup Battery Interface | optional |
| Operator | Keyphone Interface | optional |
| Operator/auto-attendent Mode | Yes |
| Operator Designation | One/Two |
| Day/Night Mode(Auto) | Yes |
| Day/Night Mode(Manual) | Yes |
| Music & Ringing | Recordable OGM(outgoing message) |
|
| 20 seconds | optional |
| 50 seconds | optional |
| 60 seconds | Yes |
| 90 seconds | optional |
| Internal Music On Holding | Yes |
| External Music On Holding | Yes |
| Ring assignment(CO-Ext group) | Yes |
| Ring Identify | Yes |
| System CRBT | Yes |
| Caller ID | External Caller ID | Yes |
| Intercom Caller ID | optional |
| Transfer Caller ID | optional |
| Call operation | Call Transfer | Yes |
| Call Forwarding | Yes |
| Outgoing Call Transfer | Yes |
| CO to CO Transfer | Yes |
| Call Switch(pickup in conversation) | Yes |
| Call Pickup(External call) | Yes |
| Call Pickup(Internal call) | Yes |
| CO Line Reservation(Call waiting) | Yes |
| CO Line Booking | Yes |
| Specific CO Line Dialing | Yes |
| Call all Extensions | Yes |
| Three way conference | Yes |
| Do Not Disturb | Yes |
| Auto/Manual Dial-Out Mode | Yes |
| Internal Hot Line | Yes |
| Internal Fast Dialing | Yes |
| Abbreviated Dialing | Yes |
| Auto IP Dialing | Yes |
| Private password | Yes |
| Redial in Indirect-dailing-out Mode | Yes |
| Billing&Management Software | Billing Software(Include program) | optional |
| Reverse Polarity Signal | Yes |
| Alarm Clock | Yes |
| Other Feature | Call Restriction | Yes |
| Call Duration Control | Yes |
| CO Line & Exts Monitor | Yes |
| Exts Groups | Yes |
| External Line Group | Yes |
| Ringing Assignment | Yes |
| Real Time Clock | Yes |
| Intelligent Routing(LCR) | Yes |
| Flexible Coding(Change Ext.No.) | Yes |
| Automatic Ext. Reporting | Yes |
| Flash Time Choice | Yes |
| System Password | Yes |
| Automatic C.O.Line Detection | optional |
| Remote Programming | Yes |
| Menory Protect While Power Off | Yes |
| Multiple Communications Channel | 8 |
| Fax Detection | optional |
| Power Failure Transfer | Yes |
| Lightning Protecting | Yes |
| Housing Material | Metal |
| Power Supply | Switch Power | Yes |
| Backup Battery Interface | optional |
Packing Details:
Weight: 5.1~5.5KGS/PC
Quantity: 5PCS in one carton
Giftbox size: 45x29.5x10.5cm
Carton size: 56.5x47x31.5cm
