Product Specifications
| Prod Model: |
YB2-(63~225) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing: |
Cast Iron(Ht250) or Aluminium Alloy(Zl102) |
| Color: |
Blue/Green/Grey/Silvery White |
| Bearing: |
China Famous Brand(Hrb, C&U) |
| Shaft: |
40cr |
| Rotor: |
Cast Aluminium |
| Stator: |
100% Copper Wire |
| Phase: |
Three or Single |
| Mounting: |
B5/B3/B35 |
| Intake Pressure Impulse: |
Without This Requirement |
| Number Of Cylinders: |
Without This Requirement |
| Piston Movement: |
Without This Requirement |
| Number Of Strokes: |
Without This Requirement |
| Ignition Mode: |
Without This Requirement |
| Cylinder Arrangement Form: |
Without This Requirement |
| Fuel: |
Without This Requirement |
Product Description
Motors advantage:
Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.

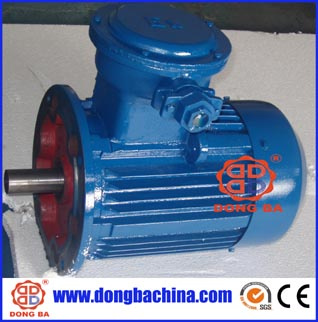

This series motors are designed and manufactured into explosion proof type and the explosion proof property conforms to China National Standards:
GB3836.1-2000 Electrical Apparatus for Explosive Gas Atmospheres-General Requirements.
GB3836.2-2000 Electrical Apparatus for Explosive Gas Atmospheres- Explosion proof Enclosure d and standards IEC79-1, BS4683 and EN50018.
ExdI- safe for use in the non-mining surfaces of underground coal mines where the explosive mixtures of methane or coal-dust are present.
ExdIIAT4 - safe for use in plants where the explosive mixtures of IIA Class, TI, T2, T3 or T4 are present.
ExdIIBT4 - safe for use in plants where the explosive mixtures of IIB Class, TI, T2, T3 or T4 are present.
ExdIICT4 - safe for use in plants where the explosive mixtures of IIC Class, TI, T2, T3 or T4 are present.
1. Ambinent tempertuer should not be more than 40 Centigrade
2. The elevation should not be exceed 1000 meters.
3. The relative humindity should not be more than 90%.
4. Rated Frequency: 50Hz
5. Rated voltage: 380V, 660V, 380V/660V
6. Operation mode is S1
7. Protection degree: IP55, Insulation class: F
Ordering Informations
1. Please indicate the motor type, rated output, rated voltage, rated frequency, synchronous speed, Explosion proof Mark, mounting type, rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment, normailly we think is CW roration and used indoor.
2. When user have special requirments, For example: Dispose the stator, bearing explosion proof and bearing temperature sensors, space heater, Plateau use, specical frequency, mounting size change, special output, the user must, order can be confirm after signing the technical agreement with engneering department.
3. The catalogue is only fpr reference, and there may be variations.
4. This range of motor can also be made into Variable-Frequency motors, the range of frequency of which is 0-100HZ, the output and overall dimensions should be confirm separately.
|
Ambient Temperature |
Between 15ºC-40ºC |
|
The Average |
≤25ºC |
|
Elevation |
≤1000m |
|
Rated Voltage |
220-660v |
|
Working system |
SI |
|
Cooling Type |
IC0141 |
|
Connection Methods |
Y(≤55kw) or ≥55kw |
Zhejiang Dongba Transmission Co., Ltd. Specilizes in design, development, production and sale of transmission equipment: Speed Reducer, Gearbox, IEC Electrical Induction Motor, following the quality policy of "progressing dongba enterprise, making a first-rate brand". Depends on idea of modern managerment and dealing, has been quickly developing professional manufacturer with cosmically and strength. Dongba is a member of China Deceleration Association and China Gear Manufacturers Association. Dongba is creditable enterprise of Wenzhou, famous star company of Younjia, firstly accredited to the ISO Quality Control System and CE Approval in the industry.
Our products (speed reducers) include:
DR, DF, DS, DK, DT series Gear Reducer,
NMBV Worm Gearbox,
MB Planetary Stepless Gear Motor,
X, B, BJ cycloid pin-wheel planets,
WB miniature cycloid pin-wheel planets,
DX93 mixed, specially used dual-shaft dual-speed output cycloids,
DH/dB Big Power Industrial Gearbox,
DP series planet gear decelerators.
More than 10 series, hundreds of varieties and thousands of specifications.
They are used for food package, beer and beverage, building and ceramic, pharmacy and leather making, electron and meter, petroleum and chemical industry, metallurgy and mine lifting and transportation and vertical parking equipment industries. Our self-developed and designed MBX rotary-arm planet frictional type stepless gearshift has been awarded with a national patent for new technique. With a lot of excellent talents, advanced technological equipment, first-rate managing groups and years'production experience, we have made great progress and our operation achievement is enhanced year by year.
Donba has been establishing sale network in Chinese main center cities, In oversea market, Dongba brand products has been sold to more than 20 countries.
We sincerely welcome persons from enterprises and commercial circles to visit and cooperate with us for a brilliant future.
