HONGHE HW - 1 oil abrasion tester
Thebest lubricant wear testing machine
Mycompany production of lubricating oil rattling machine quality first-class,dare to challenge any manufacturer of machine quality, technology, durability,we are the champions
Choosehonghe Triumphdeveloped!
Seeing isbelieving, hope to every a customer want to buy oil lubrication and weartesting machine to we see here, after shopping around before deciding to buy,
Your machinerepresents the image of your company, it is according to the national standardproduction test of lubricating oil quality index of the national experimentalapparatus, so the appearance of fine, the experimental results of accurate,high-end products is your key to expand the market. Ifwith the failure of the testing machine, the customer is very disappointed withthe quality of the lubricating oil for you, so if you want to let you of thelubricating oil to obtain customers' trust, please choose our tester.
We are professional manufacturer of lubricatingoil resistant tester, technical force is abundant, the production of HONGHE - 1 type lubricating oil wear testing machinestructure is compact, the style is novel, the experimental effect is good, wearresistance and the oil temperature machine combination, optional), is the firstselection of lubricating oil distributor, is that you open the market, stablemarket, promote the sales of the indispensable tools, this equipment has"seeing is believing, breathtaking" sales promotion effect, it can makeyour sales performance to the next level. Also are lubricating oil abrasiontester, our products are more suitable for your lubricating oil and therequirement of the market, because we are more professional.
Chooseour reason

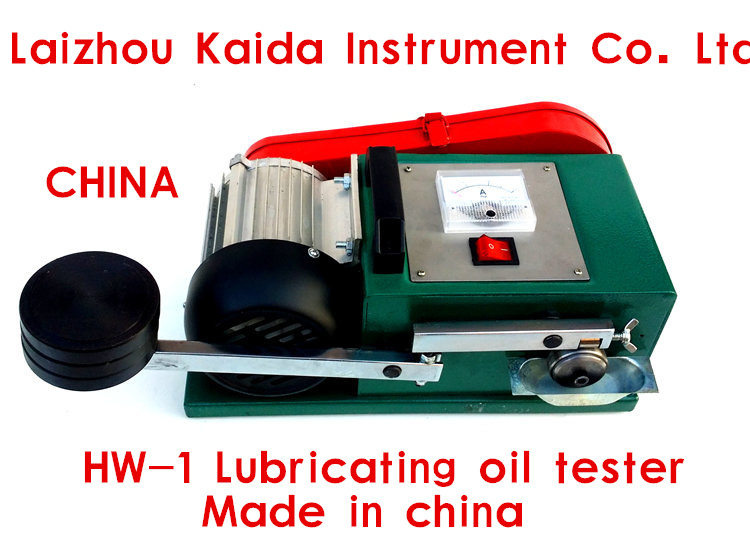

HONGHE - 1, rattlingmachine, 230 w motor, a pointer type current meter, mirror technology lever,iron oil cup,
Motor, the whole aluminum material,big power, compact structure, beautiful appearance, good heat dissipation, novibration, no leakage, set inside overheating protection device and greatlyprolong the service life of the machine.
Shell, streamline appearance,multi-channel processes, electroplating coating technology, spray paint,beautiful and not to drop paint
3.Ownprocessing center, all of the shaft, we all through special craft processing,ensure that in use process will never be out of shape. Leverage, we passedthrough add hard processing (rigid), ensure the durability of the experiment.
4. The bearing weuse special technology, to ensure the concentricity of the machine and reducethe vibration of the machine.
5.All theelectric elements, we use the best quality products, to ensure the service lifeof the machine
6. Magneticallyshielded meters, ensure the accuracy in the experiment in the process of experiment.
7.Position of the screw on the lever can change,to adapt to any kind of lubricating oil test, the user can according to thecharacteristics of the lubricating oil, turn the screw to the bestposition.Experiment, lubricating oil so that we can do the best the mostsuccessful.
8. In order to supplydifferent user groups, we equipped with two kinds of steel ball, 14 * 14, 12 *12 two types,
9. Iron cup, alifetime will not damage
Logistics delivery
Logistics expenses shall be borne by the customer,fewer default by air, if choose shipping quantity, eventually we will todeliver goods according to customer requirements.
Delivery time must be carefully check and accept, check whetherthere is any damage on the appearance of the box and accessories.If there isany breakage, must to inform logistics, because we have insurance on the cargo.
About us
Laizhoukaida instrument co., LTD
Address:
China.shandong. yantai .laizhou city
Contact phone: 0086-0535-2219377
Fax: 0086-0535-2219377
Phone: 0086-13306456277
HW - 1 oil rattling machineinstructions
Put through power supply, start the motor.With oil stone withordinary lubricants (such as mobil, shell lubricants) grinding bearing coatthoroughly, polishing when the thumb even you push hard on the oil stone, afterpolishing, clean bearing coat, turn off the motor.The purpose of polishing isto eliminate the oil film or nano membrane on the result of the experiment.
1. Fix the steel ball tester short lever sag,join ordinary lubricating oil in the oil box, the lubricating oil box and thelength of the lever installed.
2. Start the motor, first run 2 minutes.Andthen every once in a while (10 seconds), one by one on long levers with weight,each weight is equal to the friction parts of bearing 100 kilograms ofpressure.Record number of weights, see the change of the ammeter pointer,pointer, prove that electricity consumption increasing, consumption ofelectricity consumption is oil.Noise increases gradually, continue to addweight (about 3, 4) until the grinding wheel stop, machine lock, quickly turnoff the power supply.Removed, remove the short lever, to observe the grindingcrack depth of steel ball grinding, grinding crack area and roughness.
3. Install the steel ball in an Angle, lever.Grinding bearing coatagain, because wear and tear, the experiment made bearing coat had beensmoothed.
4. Join us in the oil box business wearresistant lubricants.
5. One by one at the end of the long leverwith Jordan farmar, 1 piece, 2 pieces...Ordinary oil plus 4 piece, the machinewill stop running, and we are operating a wear-resistant lubricating oil morethan 4 pieces of machine running as usual.See the ammeter pointer, just alittle bit moved.Current x = power consumption, voltage ammeter pointer changeis very small, save electricity is fuel efficiency.Gradually add weight to 12piece of machine running as usual.
(this machine is equipped with our infrared thermometer, can dothe oil temperature experiment. Step is: put three, on the long pole tolubricating oil heated to boiling, down from heated to boiling time to start,the longer, the quality of the lubricating oil, the better.)
. Every time a change of lubricating oil mustbe used stone clean, burnish of bearing a coat if polishing not clean themachine will shake, and is accompanied by the noise, influence the experimentresult.
7. Remove the ball from the previous ordinaryoil test of steel ball grinding crack.
The packing list |
The body |
Abrasion tester |
Weight |
12 |
Oil cup |
3 |
Sharpening stone |
3 |
The power cord |
1 |
Steel ball |
50 |
