Product Specifications
| Prod Model: |
SXL7045T4+1.3MP digital camera |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera System: |
External Digital Camera 1.3MP(CMOS) |
| Operation System: |
Windows XP/Vista/7/8, Mac OS X & Linux |
| Total Magnification: |
7X-45X(Max160X with Auxiliaty Objective) |
| Viewing Head: |
Trinocular Head |
| Ocular: |
Extra Wdie Field Wf10X/20 Eyepiece |
| Objective Lens: |
Zoom Objective 0.7X-4.5X |
| Zoom Ratio: |
1:6.4 |
| Working Distance: |
100mm |
| Illumination: |
Natural Light Illumination |
| Warranty: |
3year Mechanical, 1year Electronics |
| Magnification: |
<50X |
| Type: |
USB |
| Number Of Cylinder: |
≥Three |
| Mobility: |
Desktop |
| Shape: |
Pentagonal Prism |
| Principle: |
Optics |
| Principle Of Optics: |
Brightfield Microscopy |
Product Description

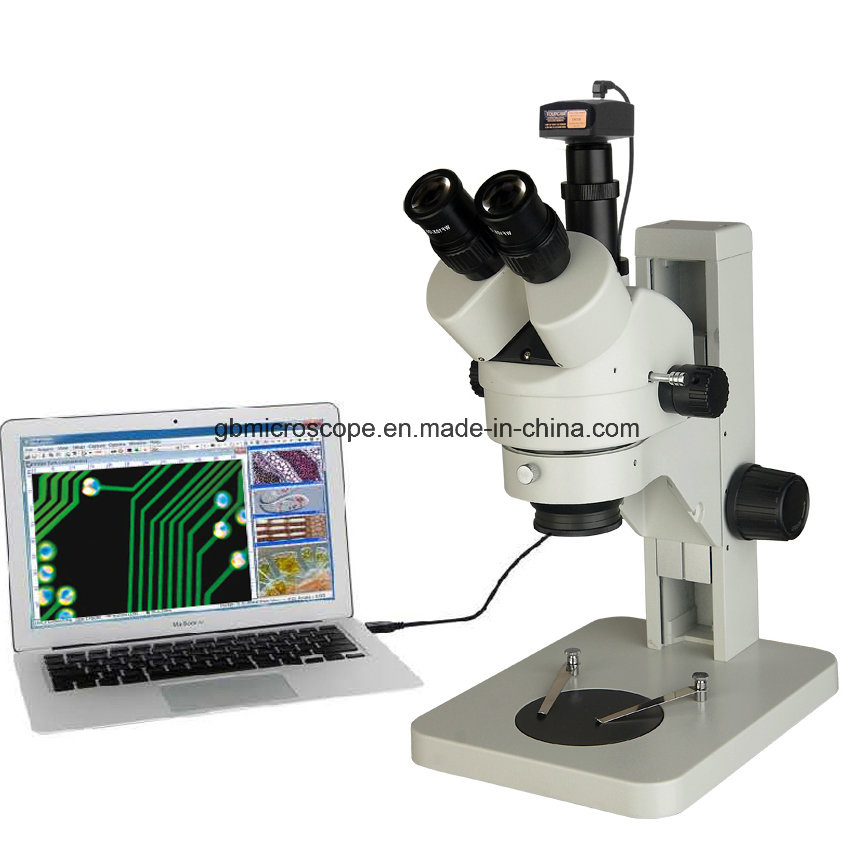

External Digital Zoom Stereoscopic Microscope: SXL7045T4+1.3MP digital Camera:
Description:
The External Digital camera dissection stereo zoom microscope SXL7045T4 with 1.3MP USB digital Camera is made up of the stereo zoom microscope SXL7045T4 and professional high resolution 1.3MP digital camera with USB2.0 connection, The included 1.3mega pixel camera comes with basic measuring software that allows image capture and this kind of external digital microscope is more flexible compared to the build-in or integrating digital camera microscope. The external digital microscope lends greater flexibility - you can use different cameras on the same microscope and vice versa. And the digital camera could be added on other regular microscope too. And it is more convenient.
Features:
Zoom Stereo Microscope SXL 7045 series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance,clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, and agricuture, as well as in electroniccomponent manufacturing . Specially suited for LED, PCB inspecition, pressing plating and electronic component inspection.
This microscope system SXL7045 series are great for many applications in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry. It comes with first-class quality and affordable price
| SXL7045 | Standard Specification | T1 | T2 | T3 | T4 |
| Viewing Head | Trinocular head, Inclined at 45° ,360°rotatable, interpupiillary distance : 55-75mm, both of ocular tube with diopter adjustable+/-5° | √ | √ | √ | √ |
| Binocular head, Inclined at 45° ,360°rotatable, interpupiillary distance : 55-75mm, both of ocular tube with diopter adjustable+/-5° | O | O | O |
|
| Eyepiece | Wide Field Eyepiece WF10X/20 , with Eyepiece guard | √ | √ | √ | √ |
| WF15X, WF20X | O | O | O | O |
| Objective | Zoom objective:0.7X-4.5X | √ | √ | √ | √ |
| Auxiliary Lens | 0.5X, 1.5X, 2X | O | O | O | O |
| Zoom ratio | 1:6.4 | √ | √ | √ | √ |
| Up & down mechanism | Pillar style | √ | √ | √ |
|
| Arm curved style |
|
|
| √ |
| Base/working stage | Large flat base, size:320x260x16mm |
|
| √ |
|
| Square base, Dia95mm black& white board with clips | √ |
|
| √ |
| Highfoot Square base, Dia95mm frosted glass with clips |
| √ |
|
|
| W.D. | 100mm | √ | √ | √ | √ |
| Focus system | Coarse Adjustment | √ | √ | √ | √ |
| Light source | Natural Light | √ |
| √ | √ |
AC220/110V , Reflected and transmission 12V/15W halogen
lamp, Brightness adjustable. |
| √ |
|
|
| Optional Accessories | High resolution digital camera: 2.0MP, 3.0MP, 5.0MP With Softare | O | O | O | O |
| Annular LED Light Lamp | O | O | O | O |
| Annular fluorescent lamp: 8W, 10W | O | O | O | O |
Note:"√" standard outfit,"O" Optional
Optical Data:
| Eyepiece | Standard Specifications | Auxiliary 0.5X | Auxiliary 1.5X | Auxiliary 2X |
| Working Distance:100mm | Working Distance:165mm | Working Distance:45mm | Working Distance:30mm |
| Magnification | Viewing Field | Magnification | Viewing Field | Magnification | Viewing Field | Magnification | Viewing Field |
| WF10X/20 | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14X | 14.3mm |
| 45X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90X | 2.2mm |
| WF15X/15 | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21X | 10.7mm |
| 67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135X | 1.7mm |
| WF20X/10 | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28X | 7.1mm |
| 90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180X | 1.1mm |
Camera System Technical Specification:
High Resolution CMOS Digital Camera 1.3MP
| Max Resolution | 1280X1024(Approx 1300000 pixels) |
| Image Sensor | 1/3 CMOS |
| Pixel Size | 3.6μmX3.6μm |
| Sensitivity | 1.0V/LUX-SEC(550nm) |
| Dynamic Range | 71 dB |
| SN Ratio | 44dB |
| Video Format &Frame Rate | 15fps @1280X1024,26fps@640X512,50fps@320X256 |
| Exposure | 0.14-2000ms, ROI Manual o&Auto |
| Binning | 1X1,2X2,4X4 |
| White balance | ROI balance/Manual Temp Tint Adjustment |
| Capture/Control API | Native C/C++, Direct show, Twain and labview |
| Record System | Still picture and movie |
| Operation Temperature | -10ºC~50ºC |
| Storage Temperature | -20ºC~60ºC |
| Operation Humidity | 30~80%RH |
| Power Supply | DC5V by USB Port |
| Operation System | Microsoft windows XP/VISTA/7/8(32&64 bits)
OS X(Mac OS X), Linux |
| PC requirement | CPU: Equal to Intel core2 2.8GHz or Higher |
| Memory 2GB or More |
| USB port: USB 2.0 High speed port |
| Display:17 or Larger |
| CD-ROM |
