Price: | US $ 12-15/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 300/Set |
Pay Type: | L/C,T/T,D/P |

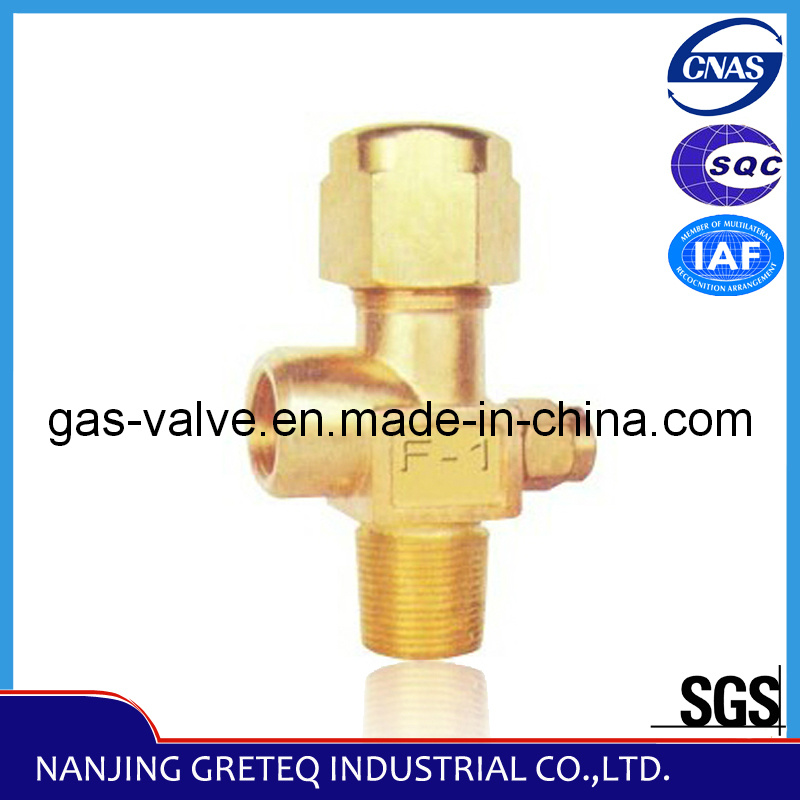

Prod Model: | F-1 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Standard Or Nonstandard: | Standard |
Structure: | Control |
Pressure: | Middle Pressure |
Power: | Manual |
Material: | Brass Hpb59-1 |
Temperature Of Media: | Normal Temperature |
Port Size: | Outlet Female Thread W23*1/14, Inlet GB8335 Pz27.8 |
Loading Port: | Shanghai Port |
Delivery Time: | Within 10 Days |
NO. | Type No. | Product Name |
Suitable medium |
PN (Mpa) |
DN (mm) |
Outlet thread(mm) |
Jiont thread to cylinder (mm) |
Temp/pressure of safety device ( Mpa) |
1 | F-1 | Brass Flapper Type Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead W23 x1/14 | GB8335 PZ27.8 | 21±1.5 |
2 | F-2 | Brass Flapper Type Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead W23 x1/14 | JIS B 8246 V2 | 21±1.5 |
3 | F-2A | Brass Flapper Type Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead G5/8 | JIS B 8246 V2 | 21±1.5 |
4 | F-2A1 | Brass Flapper Type Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead W23 x1/14 | 1-111/2-NGT | 21±1.5 |
5 | F-2B | Brass Flapper Type Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead W23 x1/14 | GB8335 PZ27.8 | 21±1.5 |
6 | F-3 | Brass Shaft coupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead G5/8 | BS 341 1X1/14 | 21±1.5 |
7 | F-4 | Brass Shaft coupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead G5/8 | BS 341 1X1/14 | 21±1.5 |
8 | F-7 | Brass Shaft coupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | Femal threead G5/8 | JIS B 8246 V1 Ø28 | 21±1.5 |
9 | DF-4 | Brass Shaft coupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | G5/8 | GB8335 PZ27.8 | 21±1.5 |
