Product Specifications
Prod Model: |
F CONNECTOR(F-1)-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: |
0 to 1GHz |
Type: |
Generally Coaxial Connector |
Coupling Mechanism: |
Threaded Connection |
Product Description

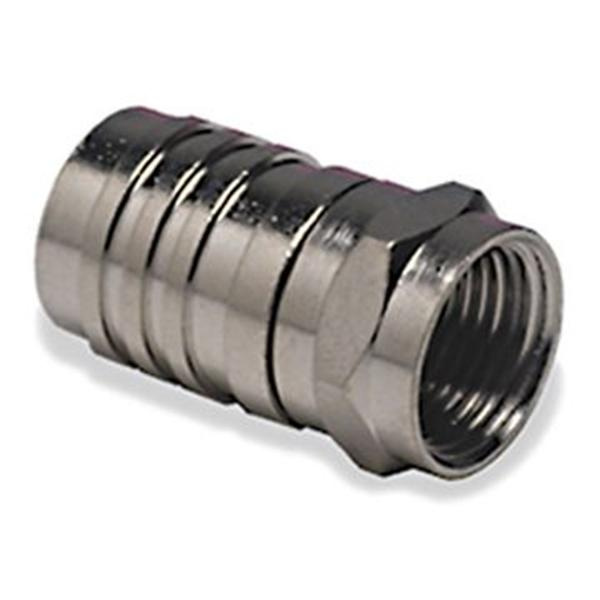

F Connector with Superior RF Performance and Excellent Insertion, Made of Brass
Coupling nuts and body: Brass
Contact: Be Cu
Ferrule: Brass
Insulator: Polypropylene
Plating:
Body: Tin lead
Contact: Bright tin
Ferrule: Tin-lead
Mating: 3/8-32 threaded
Cable attachment: Hex braid-crimp
Cable retention: 20lb minimum
Type F receptacles specifications:
Impedance: 75Ω
RF leakage: -100dB minimum at 1GHz
Temperature range: -40 to +140° F (-40 to +60° C)
Type F bulkhead jacks specifications:
Impedance: 75Ω
Frequency range: 0 to 1GHz
RF leakage: -100dB minimum at 1GHz
Temperature range: -40 to +140° F (-40 to +60° C)
Type F adapters specifications:
Impedance: 75Ω
RF leakage: -100dB minimum at 1GHz
Temperature range: -40 to +140° F (-40 to +60° C)
