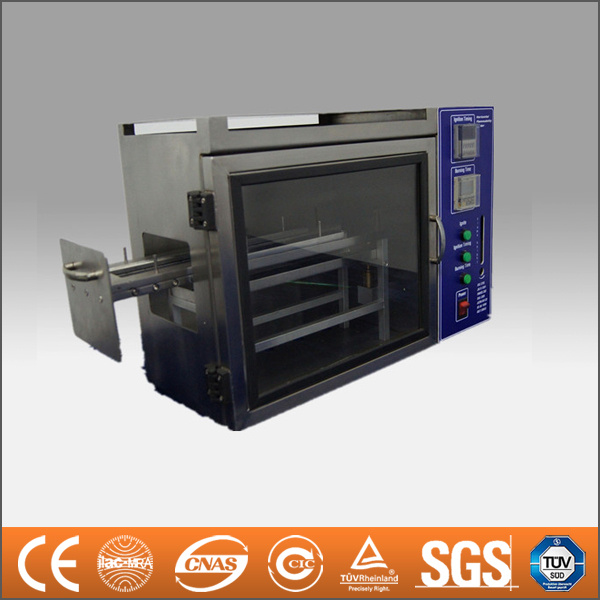

GT-C34 Horizontal Fabric Flammability Tester
Flammability Tester, Fabric Flammability Tester
1. Horizontal Fabric Flammability Tester
2. Free For One Year Maintain
3. CE, ISO Calibration Certificate
4. SGS Audited supplier
Application
To determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
Flume-Hood
1. Outline border material: Aluminium alloy.
2. Especially using for the GT-C34 Horizontal Flammability Tester. It is fastened to the body chamber.
3. System easy observation window, with a thickness ≥ 5 mm diameter.
Why choose us?
1. Considering different countries plugs, manually change thevoltage from 110V to 220V, insurance indicator.
2. Excellent Aftersale Service:
16 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Pakaging:
Simulation Animatronic Costom Triceratops are covered with air bubble fim before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Key Specification |
Model |
GT-C34 |
Time range |
0-999.9s |
Time resolution |
0.1s |
Temperature range |
0-99degree |
Temperature resolution |
1degree |
Ignition time |
15s |
Inner diameter of burner head |
9.5mm |
Ignition height (burner top to specimen center) |
19mm |
Flame height |
38mm+/-2 |
Dimensions |
450 x 310 x 510mm (LxWxH) |
Weight |
24kg |
Standards |
ASTM D5132 ISO 3795
FMVSS 302 |
