Product Specifications
| Prod Model: |
DW-I350-T4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Item: |

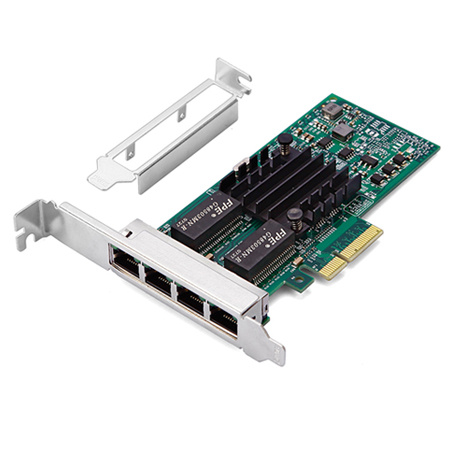

PCI Express Network Card |
| Chip: |
Intel I350 |
| LED Indicator: |
Link/Act |
| Interface Port: |
4X RJ45 |
| Key Word: |
Quad Port Network Card |
| OEM&ODM: |
Welcomed |
| Certificatio: |
CE/FCC/RoHS |
| Warranty: |
24 Months |
| Package: |
Kraft Box |
| Type: |
Wired |
| Bandwidth: |
1000Mbps |
| Interface: |
PCI Express |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Server |
| Type Of Network: |
Gigabit Ethernet |
| Field: |
Server |
Product Description
Product performance and features:
1. Each port can send and receive eight queue
2. Up to 86 pieces of queue receiver to adjust (RSS) in multiple processor system can minimize the use of the CPU
3. Support 8 pool of each port 's (a single queue) virtual machine device queue (VMDq)
4. Support the SR - IOV function
5. Support direct cache access (DCA)
6. Support the Intel I/O V3.0 acceleration technology
7. TSO interleaved technique is to reduce the delay
8. To minimize the equipment I/O interrupt using MSI and MSI - X
9. The UDP and TCP and IP checksum partial load
10. The UDP and TCP send piecewise load (TSO)
11. SCTP receiving and sending check and partial load
12. The packet combination of interrupt and timer (packet timer) and absolute - interruption delay timer is to send and receive operation
13. Support PCI Expess base specification 2.0 (5 GTs)
14. Intel I350AM4 double integrated MAC + PHY and SERDES chip controller with high performance, high reliability and low power consumption characteristics
15. Super depth, based on the packet buffer per channel can reduce the use of the CPU
16. Hardware acceleration can be partial load task from the main processor. The controller can be used for partial load TCP/UDP/IP checksum TCP segment
17. Server level of reliability, availability and performance characteristics:
Link aggregation and load balancing
Relevant switches: 802.3 AD (LACP), common Trunking (GEC/FEC)
Exchange and NIC no related
Failover
Prioritization - 802.1 p layer 2 priority coding
Virtual local area network (LAN) 802.1 q VLAN
Large frame (9.5 KB)
802 x flow control
Multicast/broadcast packet replication
