Product Specifications

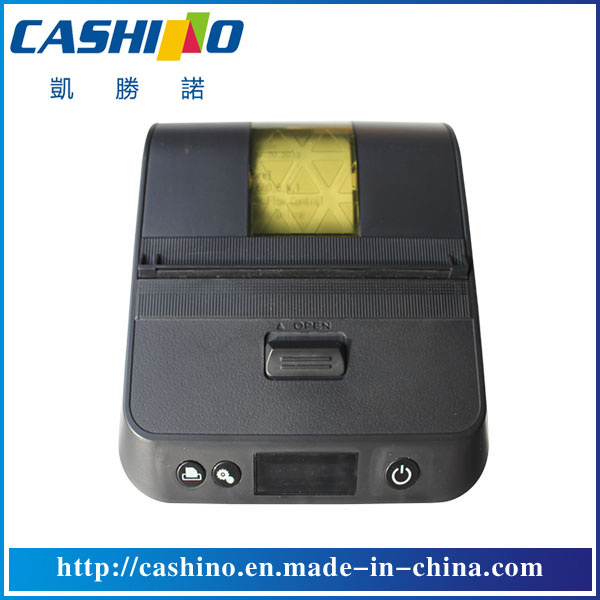

Prod Model: |
PTP-III |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Size: |
110X124X48mm |
Printing Method:G: |
Thermal Line Printing |
Paper Width: |
80mm |
Printing Width: |
72mm |
Paper Roll Diameter: |
40mm |
Print Speed: |
50~80mm/S |
Low Battery Indicator: |
7.4V,2000mAh |
Apply To: |
Mobile POS/Retail/Hospitality |
Sensor: |
Paper End Sensor |
Color: |
Black/Dark Grey |
Usage: |
Moblie POS/Rerail |
Interface Type: |
USB/RS232/WiFi |
Type: |
Thermal Line Printing |
Consumable Type: |
Thermal Paper |
Max. Paper Size: |
80mm |
Style: |
Thermal Printing |
Product Description
Xiamen Cashino Electronic Technology Co., LTD. Is highly specialized in designing, developing, manufacturing and marketing of printing equipments; And provide the professional printing solution. With the factory located in Xiamen city.
With rich of experience and professional R&D team, Cashino successfully launched a series of printing equipments. Such as portable printer, bluetooth printer, micro panel printer, Kiosk printer, POS receipt printer, barcode label printer, as well as printer mechanism( thermal & impact type) and so on; Our products usually are used for POS/ECR, Transport Ticketing, Instrument Analyzers, KIOSK system, Electronic medical equipment, self-service solution etc.
In recent years, as the market is increasingly mature and growing, Cashino's business have expand to oversea markets, such as Southeast Asia, South Asia, South & North America, Middle East and Europe, etc. Won the majority of worldwide customers' favor. In view of having a strong R&D team, we also provide OEM/ODM service for customers.
Cashino always keep up with the enterprise goal of "survival by quality, service for development". We are able to provide all customers with high quality products to meet their strict requirements at competitive prices. Ultimately we wish to establish and maintain a long-term relationship with every customer built on respect, confidence and Mutual benefit. Print | Printing Method | Thermal Line |
Printing Speed | 50mm-80mm/s |
Resolution | 576 dots/line |
Effective Printing Width | 72mm |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Print Font | ASCII CH(8x16,9x17,9x24,12×24,); GBK(16x16,24×24) |
Paper Spec. | Paper Type | Thermal paper |
Paper Width | 80mm |
Paper Roll Diameter | Max: 40mm |
Paper Thickness | 60-100µ m |
Paper Supply Method | Drop-in Easy loading |
Reliability | MCBF | 15 million lines |
TPH | 50km |
Barcodes | 1D | EAN-18, EAN-13, EAN-8, CODE39, CODE93, CODE128, CODABAR, ITF, UPC A, UPC B, Graphic |
2D | QR Code/PDF 417 |
Emulation | ESC/POS compatible with commands set |
Sensor | Paper End Sensor |
Interface | PTP-III/BT:RS-232C/USB +Bluetooth; PTP-III/Ir:RS-232C/USB+ IrDA/Raw IR; |
Mark position | Detecting mark position |
Battery Power | 2000 mAh rechargeable Li-ion battery |
Physical | Weight | 340g(Including battery & roll paper) |
Dimension (WxLxH) | 110 x 124 x 48mm |
Color | Black / Dark grey |
