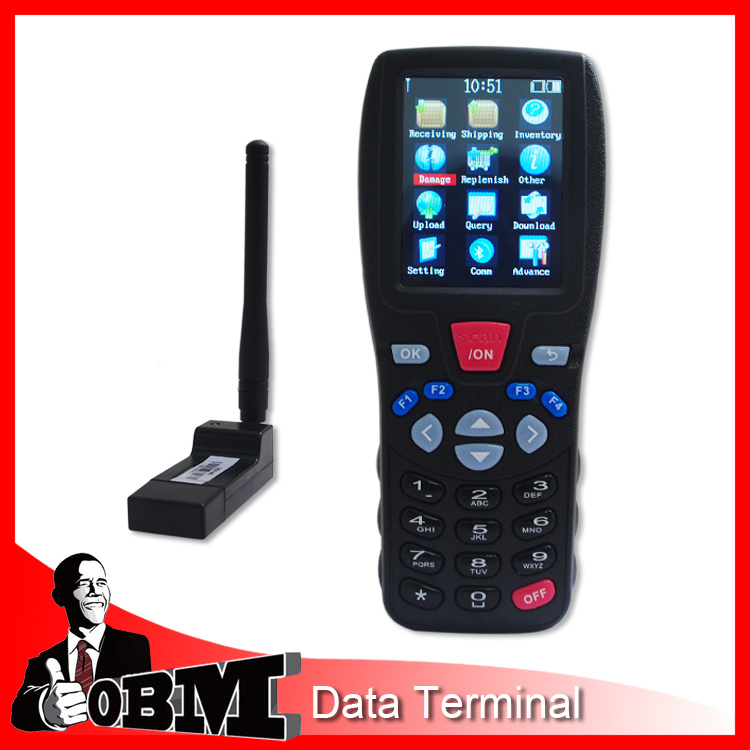

Factory Promotion Color Screen Handheld Data Collector(OBM-767)
FEATURES:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: Receiving, shipping, cycle count, replenishment and defect report
2. RECONIZABLE
Supports download of item file: Barcode scanned matches to the item automatically and displays on screen right away
3. SIMPLE
2.8" color display and graphical menu makes it easy to understand
4. EFFICIENT
Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
5. SAFE
Supports real-time, storage and batch transmission
6. WIRELESS
Adopts mainstream wireless and storage technology, free from cables
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours
TECHNICAL PARAMETERS Radio Specifications :
|
433MHz |
|
|
Frequency |
ISM band , 433MHz |
|
modulation |
GFSK |
|
Rate of Transmission |
50Kbps |
|
Output Power |
20dBm (max) |
|
Transmission Coverage |
300M visibility range ( Max. ) |
|
Antenna |
2.5DB |
Performance Characteristics :
|
Light Source |
650nm Laser Diode |
|
Scan Pattern |
Single line |
|
Scan Rate |
45±2 /sec |
|
Scan Precision |
4mil |
|
Scan Width |
20mm@window , 100mm@100mm |
|
Depth of Field |
0 ~ 250mm ( 0.33mm , PCS 90% ) |
|
Roll(Till) |
30° |
|
Pitch |
65° |
|
Skew(Yaw) |
55° |
|
Resolution |
30% minimum reflectance |
|
Operating Mode |
Continuous / itemized scanning |
|
Error Rate |
1 million-to-one |
|
Indicator |
beeper , LCD |
|
Decode Capability |
EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI^ |
|
Interfaces supported |
Mini USB receiver , optional RS232 or PS2 |
Electrical Parameters :
|
Receiver Voltage |
DC5V |
|
Receiver Current |
50mA |
|
Battery |
Rechargeable lithium ion battery (3.7V ,1900mAh) |
|
Charging Indicator |
LCDdisplay |
|
Operating current |
190mA |
|
Standby Current |
40mA |
|
Laser Safety |
national class2 regulatory |
|
EMC |
CE & FCC DOC compliance |
Physical Characteristics :
|
Memory |
16M |
|
keypad |
23 |
|
Dimensions |
160mm×68mm×29mm |
|
Material |
ABS + silicon |
User Environment :
|
Operating Temperature |
32~ 113 Fahrenheit |
|
Storage Temperature |
-4 ~ 140 Fahrenheit |
|
Humidity |
5%~95% (non-condensing) |
|
Ambient Light Immunity |
Max.5,000 Lux ( fluorescent ) |
|
|
