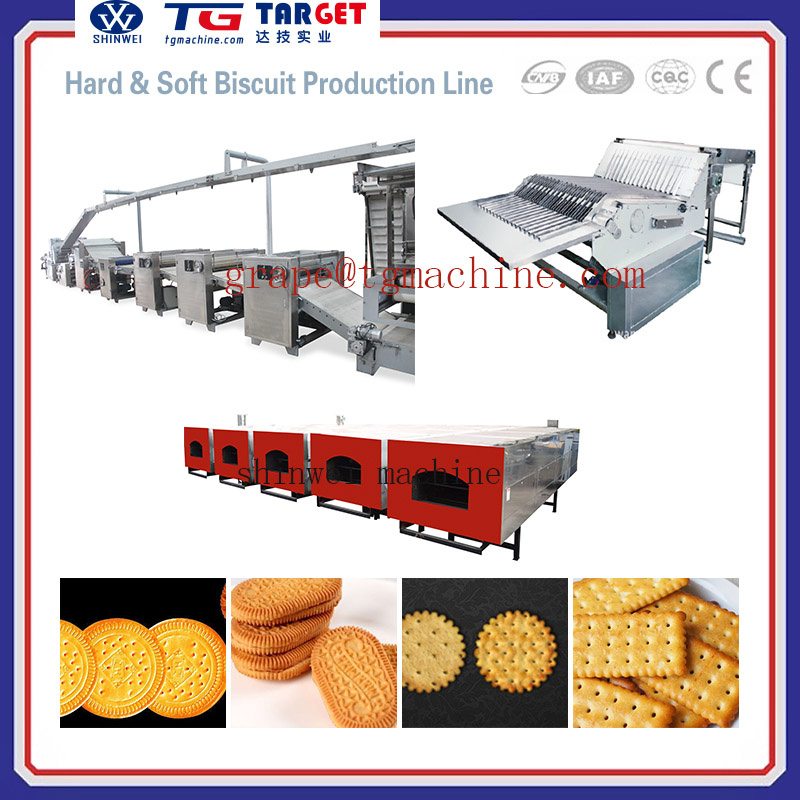

This biscuit processing line is an advanced equipment for making various kinds of biscuit, such as crisp biscuit, tenacity biscuit,
sandwiching biscuit with chocolate or cream in the middle layer, etc. It is also an ideal equipment which can produce out good quality products with saving of both the manpower and the space occupied.
Description:
This biscuit production line featured:
1. With high automaticity and stable quality;
2. Controlled by PLC,
3. Quality materials adopted and its part that touching flour is made of Stainless Steel 304.
4. Commissioning and training will be conducted by our senior technician, and the best technology formula will be also provided.
5. Our biscuit production line can produce all kinds of top-grade hard and soft biscuits in fashion.
Soft/hard biscuit forming production line process flow
Mixing flour---biscuit forming-spreading salt/sugar-baking-oil sprayer-cooling swerve --stacking biscuit---packing---into box ---to warehouse
The line is made up of
1.3color/layer making unit (option)
2.dough sheeting machine
3.Rotary cutter or double cutter
4.Reast dough conveyor
5.Vertical rotary moulder&horizontal rotary moulder
6.Driver and inlet part
7.Salt/sugar sprinkler
8.Oven drive and oven tension
9.Hot wind circulation baking or direct gas-fired oven
10.Peeling machine
11.Oil spray machine
12.180biscuit swerve conveyor
13.Cooling conveyor
14.Biscuit stacking machine
15.Packing conveyor
16.Side scrap return system
17.Reciprocating director
Model |
BCQ250 |
BCQ400 |
BCQ600 |
BCQ800 |
BCQ1000 |
BCQ1200 |
Remark |
Capacity(kg/h) |
100 |
250 |
500 |
750 |
1000 |
1250 |
Up to |
Length(mm) |
29600 |
64500 |
85500 |
92500 |
125000 |
125000 |
No U turn |
Bake temperature |
190-240ºC |
190-240ºC |
190-240ºC |
190-240ºC |
190-240ºC |
190-240ºC |
190-240ºC |
Power(kw) |
65 |
190 |
300 |
380 |
700 |
830 |
Electric oven |
Weight(kg) |
6000 |
1200 |
20000 |
28000 |
35000 |
45000 |
approx |
SHINWEI MACHINERY was from a company named Shanghai fengxian guyue food machine factory since year 1982which is a state owned enterprise for confectionery, chocolate, biscuit and packaging machinery. The founder of SHINWEI machinery is Mr. Wangzhiwei who is the director of guyue food machine factory till year 1995, after that year, the collective was restructured to Ltd and SHINWEI MACHIERY was established.
Nowadays, SHIWNEI always stand in the leader position in food machinery innovation and developing, the factory area is more than 6000square meters, five modern workshop, over 100 employees and has CNC machine, computer controlled lathe ect, in year 2005, SHINWEI PASSED ISO9001 authentication and most of the products passed European CE authentication. SHINWEI exported its products to east European, south America, Middle East, southeast Asia ect. District since year 2000, good quality products and perfect service makes SHINWEI have very good reputation and popularity.
SHINWEI MACHINERY provides not only the good quality production line for different kinds of confectionary production, but also the whole solution from making research, factory design, machinery installation and production, packing design ect. We are happy to cooperate with the new investor in food industry or experienced manufacturers. For more solution or information, please contact us or visit our website: http://www.sh-xinwei.net
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hi-tech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment. SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hitech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment.
SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
