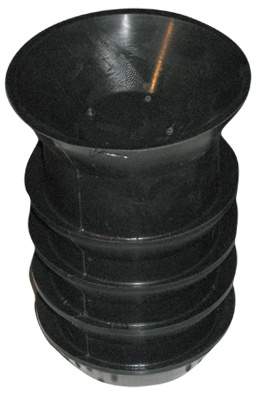

Factory Supply API Certificated Cementing Plug

Name: Factory Supply API Certificated Cementing Plug
Brand: china-manufacturer-directory.com
SKU: 661810722
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	non rotating
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	NBR
Color:	Black, Red, Yellow or as Requested
Type1:	Non Rotating
Weight:	25kg
Height:	450
Od:	317
Type:	Petroleum Drilling Tool & Accessory
Usage:	Offshore Oil and Gas Field Exploitation Machinery
Certification:	API

Product Description

PuYang Zhongshi manufactures Cementing Plugs from high-performance special elastomers and core materials. These Cementing Plugs are specially designed with a positive wiping action to ensure that the casing is clean.

Top Plugs: The Top Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the top plug initiating a positive seal. A solid rubber top plug is also available.

Bottom Plugs: Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.

Casing size(in)	casing weight range		Wiper Fin O.D
Casing size(in)	mm	in	mm	in
4 1/2"	14.14-17.26	9.50-11.60	110	4.331
5"	17.11-35.86	11.50-24.10	122	4.803
5 1/2"	20.83-39.88	14.00-26.80	135	5.315
7"	25.30-56.55	17.00-38.00	170	6.693
7 5/8"	35.72-63.69	24.00-42.00	185	7.283
9 5/8"	53.57-79.62	36.00-53.50	235	9.252
10 3/4"	60.27-97.77	40.50-65.70	260	10.236
13 3/8"	71.43-107.15	48.00-72.00	333	13.110
20"	139.89-197.93	94.00-133.00	498	19.606

Casing Size(in)	Casing Weight Range		Wiper Fin O.D		Working Temperature	Working Pressure	Burst Pressure	Hardness
Casing Size(in)	mm	in	mm	in	Working Temperature	Working Pressure	Burst Pressure	Hardness
4 1/2"	14.14-17.26	9.50-11.60	110	4.331	-30ºC to 150ºC	≥15MP	1MP-2MP	75-95
5"	17.11-35.86	11.50-24.10	122	4.803
5 1/2"	20.83-39.88	14.00-26.80	135	5.315
7"	25.30-56.55	17.00-38.00	170	6.693
7 5/8"	35.72-63.69	24.00-42.00	185	7.283
9 5/8"	53.57-79.62	36.00-53.50	235	9.252
13 3/8"	71.43-107.15	48.00-72.00	333	13.11	-30ºC to 150ºC	≥10MP
20"	139.89-197.93	94.00-133.00	498	19.606	-30ºC to 150ºC	≥10MP

We regard customer satisfaction and market cultivation as its central job of service and provides first class product and personalized service. Senior technical engineers and production backbones go deeply into the marker for investigation. And tap the potential demands of customers at the first time. We provide customers with perfect solutions.
