| Price: | US $ 123-126/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Main Feature | |||
| Mainboard | Form Factor | 3.5 Inch (115mm×155mm×20mm) | |
| CPU | Intel® Atom D525/N550/N455 processors. | ||
| Chipset | Intel® Atom D525/N550/N455 processors + ICH8M chipset | ||
| Memory | Onboard DDR3 2GB | ||
| Storage | mSATA SSD: 8/16/32/64/128GB | ||
| COM | 6*COM port | ||
| USB | 6*USB 2.0/1.1 ports | ||
| VGA | 1*VGA interface | ||
| Network | 1*1000M Ethernet RJ45 LAN port(WIFI optional) | ||
| Audio | 2*Audio(line_out & Mic_in) | ||
| Other Function | Support power booting/plug and play. | ||
| Cooling System | Fanless;aluminium shell heat conduction | ||
| Power Supply | DC_12V 5.0A/ATX 4-PIN | ||
| Operating Environment | Working | Storage | |
| Temperature | -20°C~70°C (-4°F~158°F) | -20°C~80°C (-4°F~176° ) | |
| Humidity | 10%~90% (non-condensing) | 10%~90% (non-condensing) | |
| Impact | 3G@11MS | 30G@11MS | |
| Shake | 0.4GRMS(10-500HZ) | 1.12GRMS(10-500HZ) | |
| Structure | Material | All aluminium shell | |
| Color | Black/Silver (optional) | ||
| Size | 230mm(L)*60mm(H)*160mm(W) | ||
| Weight | 2.0KG | ||
| Application Area | wall-mounted/desktop/vehicle-mounted/industrial control | ||
| Advantages | |||

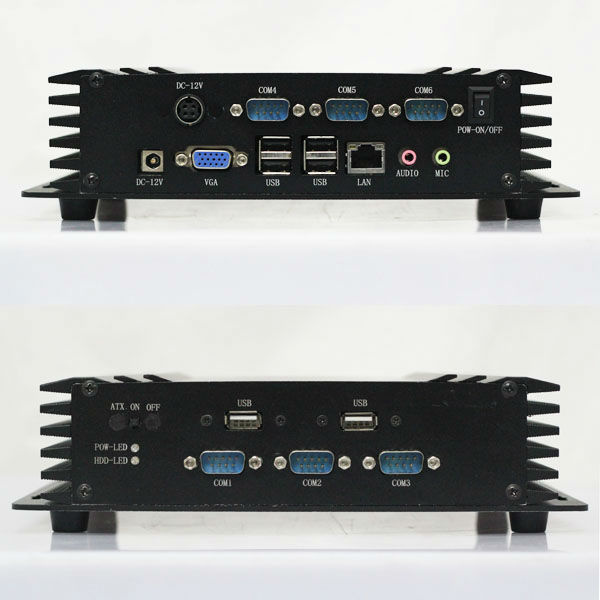

| 1.All aluminium shell,good at heat dissipation 2.Compact embedded system design;Fanless,completely mute. 3.Sealed design,dust-proof;shock-proof,very steady. 4.Support Gigabit Ethernet and WIFI. 5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application. | |||
| Prod Model: | D525-3-M3 QBOX |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bois: | Award 8MB DIP Flash ROM |
| L2 Cache: | 1MB, CPU Integrated |
| RAM: | Onboard DDR3 2GB (So-DIMM Socket Max 4GB Optional) |
| Sound Card: | Onboard HD Alc662 Chipset |
| Storage: | Mini-SATA;SATA |
| USB: | 6*USB 2.0/1.1 |
| COM: | 6*COM Expansion Headers |
| Network: | 2*1000m RJ45 Port |
| Chipset: | Intel Atom D525/N550/N455 Processors + Ich8m Chip |
| CPU: | Intel Atom D525 CPU(45nm, 1.8GHz, 1m L2 Cache) |
| Screen Size: | ≥10.1" |
| Screen Type: | Capacitive Screen |
| Operating System: | Windows |
| Memory: | 2GB |
| Network Mode: | 3G |
| Hard Disk Capacity: | 16G |
| CPU Core: | Dual-Core |
| Webcam: | Webcam |
| Battery Capacity: | ＜2000mAh |
| Built-in Bluetooth: | Without Bluetooth |
| Built-in Microphone: | Built-in Microphone |
| Card Reader: | Without Card Reader |
| Front Camera Pixel: | 0.3MP-1MP |
| Fingerprint: | Without Fingerprint |
| CPU Type: | Intel Atom |
