Product Specifications
| Prod Model: |
PA03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Intel |
| GPU: |
Intel |
| Use: |
Commercial |
| CPU Frequency: |
2.0-2.5GHz |
| Memory Capacity: |
2g/4G/8g/16g |
| HDD Capacity: |
8g/16g/32g/64G/128g/256g/512g |
Product Description
| Model | PA03 i7 5500U |
| General |
| CPU | The Fifth Generation Broadwell I7 Intel Core i7 5500u 2.4Ghz |
| GPU | Intel HD Graphics 5500 |
| Core Name | Broadwell |
| Core / thread | Dual Core Four threads |
| CPU cache | Three cache |
| Process technology | 14nm |
| TDP power | 15W |
| CPU frequency | Clocked 2.4GHz |
| Slot | Socket BGA1168 |
| L1 data cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L1 code cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L2 cache | 2 * 256KB,8-Way, 64 byte lines |
| L3 cache | 4MB, 16 Way, 64 byte lines |
| Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, HTT,EM64T,EIST,Turbo... |
| BIOS | American Megatrends Inc 5.6.5 |
| Acceleration Technology | Supports Turbo Boost Turbo technology, 3.0GHz
Bus frequency
5000MHz |
| Memory | Support Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G) |
| Storage | SSD: 8GB/16GB/32GB/64GB/128GB/256GB
HDD: 80GB/160GB/320GB/500GB/750GB/1TB
Support 2*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G*2, HDD Max. 1TB) |
| Operating System | Windows (OEM) or Linux |
| Motherboard | Intel CRESCENTBAY(Intel Broadwell-U) |
| Network | Onboard RTL8111DL10/100Mbps/1000Mpbs BaseT LAN
Optional 300M WiFI with dual antenna |
| I/O Ports |
| I/O Port | 1*DC IN
1* Power indicator and switch
4* USB 3.0 Ports
2* USB 2.0 Port
2* COM Ports(RS232)
2*HDMI
2*LAN Port(RJ45 Port)
1* MIC
1* SPK
1* SD Card Reader
1* Onboard SIM Card Slot + 1 Mini PCIE 3G/4G Slot |
| Power and Working Environment |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 12V~19V/6A |
| Operating Temperature | 0/70 Centigrade(32F~140F) |
| Storage Temperature | (-20/+80)Centigrade |
| Relative Humidity | 10%~90%(non-condensing) |
| Energy-Saving | Support Energy-saving technology, Speedstep |
| 64 bit computing | Support 64 bit computing |
| Virtualization | Support Virtualization Technology |
| Hyper-Threading | Support Hyper-Threading (Hyper-Threading) Technology |
| Product Dimension&Details |
| Noise | Fanless System |
| Size | 21*17.5*4.5CM |
| Weight | 3KG |
| Consumption | 15W-28W |
| Shell | 3 Colors, (Silver, Gloden, Black)with aluminum alloy |
| Package Box | Neutral Color Box or INCTEL Color Box |
| Content | Mini PC device, Power Adapter, Desk base, Antennas (For Optional) |
| Configuration |
| Model | PA03 |
| CPU |
Intel Core i7 5500U 2.4Ghz |
GPU |
Intel HD Graphics 5500 |
RAM | Support Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G) |
| Storage | Support 2*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G*2, HDD Max. 1.5TB) |
| Wi-Fi | Dual Band Wireless-(150Mbps or 300Mbps optional) |
| Package |
Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand |
The Fifth Generation Broadwell I7
Intel Core i7 5500u 2.4Ghz
3 Colors, (Silver, Gloden, Black)
Silver in stock,
Gloden and Black will come out in 10 days
We sill ship at random per our stock without notice

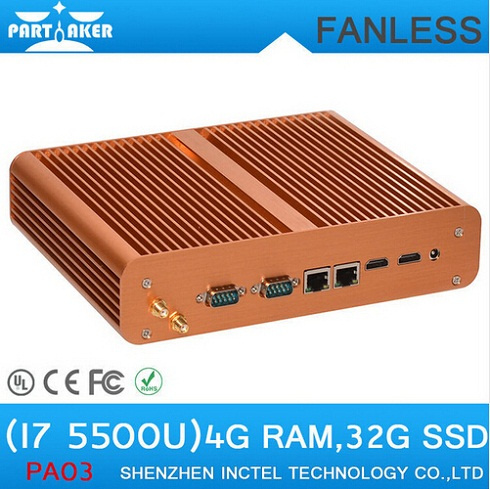

Mini PC Rear I/O:
DC
Dual HDMI
Dual Gigabit LAN
Dual COM
USB 2.0*2
USB 3.0*4
SD Card Reader
MIC Input
SPK Output
Fanless
