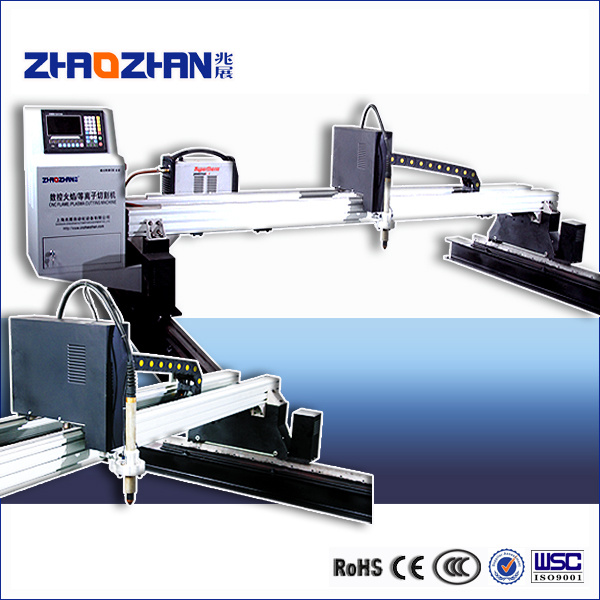

Launched by Shanghai ZHAOZHAN AUTOMATION EQUIPMENT CO. Ltd, Gantry CNC Flame / Plasma Cutting Machine CNCUT-G-SE(ST) enjoys economical, environmental, labor-saving and low-cost features which further utilize the high performance of the equipment.
Product features
1) Machine tool and beam are of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface oxidation.
2) The combination of the T-bar and tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.
3) Equipped with two movable bodies which is convenient and practical.
4) Cutting Objects: Carbon steel, stainless steel and non-ferrous metal plate.
5) With the function of cutting metal plates into any shapes.
6) With two cutting modes: Flame Cutting & Plasma Cutting.
7) Chinese, English, French, and Portuguese are ready to use.
8) Can automatically memorize and restore when power is off.
9) Can choose Plasma THC ( torch height control) device.
10) Plasma high frequency proofed which guarantees the safety of the plasma cutting.
|
Name |
GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE |
|
Model |
CNCUT-3075G-ST |
CNCUT-3375G-ST |
CNCUT-4012G-ST |
CNCUT-3075G-SE |
CNCUT-3375G-SE |
CNCUT-4012G-SE |
|
Input Power |
Single Phase AC 220V |
|
Approximately 1200W |
Approximately 1500W |
|
Cutting Modes |
Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting |
|
Transmission Style |
Rack And Gear |
|
Motor Style |
Step Motors Dual Drive |
Servo Motors Dual Drive |
|
Tracks space between |
3000mm |
3300mm |
4000mm |
3000mm |
3300mm |
4000mm |
|
Track length |
7500mm |
7500mm |
12500mm |
7500mm |
7500mm |
12500mm |
|
Track length (effective cutting length Y axis) can be customized for extending cutting length(2500mm/piece) |
|
Effective Cutting Range for each Tool X*Y |
2500*6000mm |
2500*6000mm |
3200*11000mm |
2500*6000mm |
2500*6000mm |
3200*11000mm |
|
Tool Quantity |
One Tool |
Two Tools |
Two Tools |
One Tool |
Two Tools |
Two Tools |
|
Torch Height Control Style |
Flame THC: Optional / Plasma THC: Optional |
|
One Tool just can support one Flame THC or one Plasma THC |
|
Max. Cutting Torch Quantity |
2 pieces |
3 pieces |
3 pieces |
2 pieces |
3 pieces |
3 pieces |
|
Optional Torch Style (Plasma: P Flame: F) |
P / F / P+F |
P+F / F+F / F+P+F |
P+F / F+F / F+P+F |
P / F / P+F |
P+F / F+F / F+P+F |
P+F / F+F / F+P+F |
|
Cutting Speed |
0-4000mm/min |
0-10000mm/min |
|
Torch Lifting Distance (Z) |
≤ 150mm |
|
Working Precision |
± 0.2 mm / meter |
|
Flame (Gas) Cutting Thickness |
Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm |
|
Plasma Cutting Thickness |
Depends on the cutting capacity of the Plasma Generator |
|
Flame auto igniter |
Including Flame device |
|
Gas Pressure |
Acetylene Gas or Propane Gas Max 0.1Mpa |
|
Oxygen Pressure |
Oxygen Gas Max 0.8Mpa |
|
Cutting Table And Base |
We will supply drawings of cutting table.
Base (H-beam) and cutting table are not supplied. |
Shanghai ZHAOZHAN Automation Equipment Co., Ltd specializes in design, manufacture and sale of numerical controlled equipments. Right now we supply totally 7 models machines:
(1)Environmental steel structure table style CNC flame plasma cutting machine
(2)Aluminum Structure Table Style CNC Flame Plasma Cutting Machine
(3)Gantry Style CNC Flame Plasma Cutting Machine
(4)CNC Drilling And Flame Plasma Cutting Machine
(5)CNC Pipe Flame Plasma Cutting Machine
(6)Portable CNC Flame Plasma Cutting Machine
(7)Large portable CNC flame plasma cutting machine
Our company has scientific management idea, adopts advanced technology, and specializes in the research and production of CNC cutting machines. Since the company has been established, we insist on high technology. In order to improve our technical level and service level, we have hired several technical personnel, and have established good cooperative relationship with several domestic research organizations.
On the basis of our tenet: "Quality-oriented, honesty-centered, Scientific management, harmonious development", we warmly welcome all customers both from home and abroad.
Zhaozhan will supply you with good service and support your business with might doubled.
