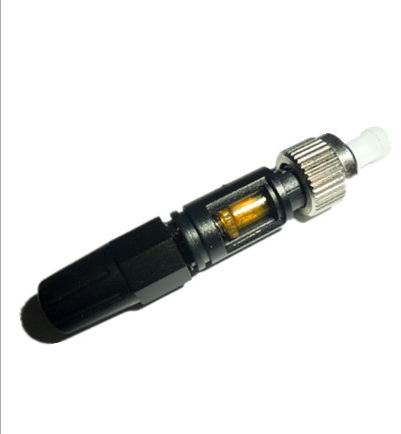

Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insertion Loss: |
<0.3dB(PC) |
| Return Loss: |
>50dB(PC), >55dB(Upc) |
| Tensile Strength (20 N): |
Il≤ 0.2dB Rl>= 50dB |
| Applicable For: |
φ 2mm/φ 3mm Cable |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
FC |
Product Description
SC Quick Connector, Fast Connector:
1) Factory price, Warranty: One year
2) Insertion loss<0.3dB, Return loss>50dB
3) Easily installed
4) 30 seconds to learn install
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
Description Parameters
Technical Specifications: *Fiber type: SM(9/125), MM(50/125, 62.5/125)*Fiber cable type: 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable*Insertion Loss: <0.3dB(PC), <0.2dB(APC)*Return Loss: >50dB(PC), >55dB(UPC), >65dB(APC)
*Bare fiber strength: >5N
*Clad strength: >10N
*Tension: >50N
*Tensile strength (20 N): IL≤ 0.2dB RL≤ 5dB
*Mechanical durability(500times): IL≤ 0.2dB RL≤ 5dB
*Operating Temperature: -5° C~70° C
*Storage Temperature: -40° C ~ +85° C
Features: 1) Factory-installed fiber stub. 2) No epoxy and polishing required, No special tools needed when installed. 3) Allows up to three re-termination result. 4) Easily installed, Quick and easy fiber termination in the field. 5) Only 30 seconds needed to learn the process of installation and making. 6) Cost effective, Warranty: One year. 7) Fast connecting and repeat, No special tools needed when installed. 8) Can be made on-site without splicing connectors. 9) Eliminates cable excess length and pigtail splice storage. 10) Can be intalled and maked repeatedly thus avoiding loss.
Applications1. Patch panels2. Distribution frames3. Maintenance or emergency restoration of fiber networks4. FTTH Outlets5. Connection at the desk for LAN environments6. Fiber Optic Patch Cord & Pigtail7. Telecommunication Devices8. Data Communications Networks9. Optical Fiber LAN and Access Network10. Industry and Military Applications
Packaging & Delivery
Packaging Detail: Transparent plastic bag or upon customer's request
Delivery Detail: Around 7 days after receipt of formal order
Why Purchase from us 1. Quality product 2. Competitive price 3. Custom made products 4. One year warranty 5. Fast delivery with bulk order 6. Low cost International shipping
We insist on the orientation of "quality, price and service" and the spirit of "solidarity, pragmatic, deploitation and creation" all along.
And we pursue to manufacture the first-class products due to the advanced technology and rigorous scientific management. If you have any question, please feel free to contact us.
Fiber type
|
SM(9/125), MM(50/125, 62.5/125)
|
Fiber cable type
|
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
|
Insertion Loss
|
< 0.3db(pc), < 0.2db(APC)
|
Return Loss
|
> 50db(PC), > 55db(UPC), > 65db(APC)
|
Bare fiber strength
|
> 5N
|
Clad strength
|
> 10N
|
Tension
|
> 50N
|
Tensile strength (20 N)
|
IL≤ 0.2dB RL≤ 5dB
|
Mechanical durability(500times)
|
IL≤ 0.2dB RL≤ 5dB
|
Operating Temperature
|
-5° C~70° C
|
Storage Temperature
|
-40° C ~ +85° C
|
Shen Zhen NXD Optical Communication EquipmentCo., Ltd. Also named as NXD Industrial (Group) Co., Ltd. is a leading manufacturer of Fiber Optics with 10 years export experience. We focus on providing a superior level of support for our customers. Our sales and support staff are equipped with an expert technical knowledge so we are able to provide the right products to suit your applications.
With our consistant efforts, now we are selling our products to more than 120 countries in the world and we have formed our stable customer groups and this is still increasing gradually. Our Fiber Optic Components and devices are with high performance due to these years experience. We are happy that many companies choose us as their stable supplier because we have helped them to win in the market.
We have been putting a lot of investments to keep pace with industry standards. With high quality raw materials, advanced manufacturing equipment adopted and our highly skilled workers, we ensure every of our products is with excellent quality and looking, and we ensure fast response and professional service. We fully understand our success is dependent on our customers' satisfaction, we are always ready to do the best to maintain the customers loyalty. You can truly count on our commitment to excellence.
Here are the advantages of our products:
1. Fast response and always timely delivery. We always keep our promise for on time delivery for all the fiber optic components and strucutred cabling products. Our products include FTTH Products, Fiber Optic Patch Cords and Pigtail, Fiber Optic Cable. Fiber Optic Adapters and Attenuators, Patch Panel and Splice Closure, Media Converter, etc.
2. High performance products quality. Our products are known due to good quality, some world leading companies choose us as their supplier for strucutred cabling products, especially for CAT6A series products...We are proud of having been offering our partners with stable good quality fiber optics and strucutred cabling products.
3. Excellent packing and looking for the goods. We understand for resellers, the packing and looking of the goods is very much important. All of our products feature good packing and looking. Bulk fiber optic cables are also available.
4. We not only make standard fiber optic products, we are also able to make special ones, such as fiber optic cable equivalent to corning fiber optic cable assemblies and 3M fiber optic cable assemblies, equivalent fiber optic transceivers, OM3 fiber optic cables, CAT6A LAN Cable, Patch Cords, Keystone Jack, Patch Panel, equivalent transition networks media converter, etc. You can get reliable standard products from us, and you can gain the advantage over the competitors by getting the latest fiber optic products from us.
5. Over 10 years of experience in designing and manufacturing of fiber cable and related fiber optic cable management and fiber optic cable installation devices. As professional fiber optic cable supplier, We have close relationship with some world leading companies and university labs. The company has been putting a lot of effort and investment on quality control, R&D of new products as well as employee treatment. We have long time stable skilled workers with most advanced equipment to make stable good quality products. We hope to be your one stop source to buy fiber optic cable.
We are struggling to do better and making progress step by step to make our products recognized by more and more customers all over the world. As professional fiber optics manufacturer and supplier, we promise to offer fast and effective service as well as reliable products, if anything you are unsatisfied with us, please let me know.
