FDA approved 300mA medical xray equipment for radiography

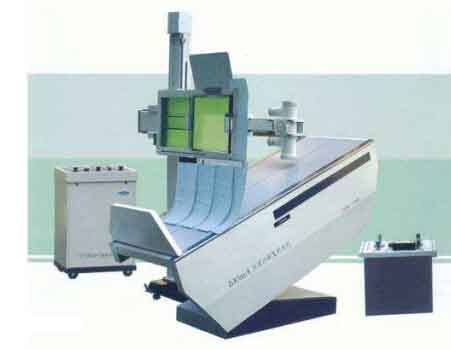

300mA Medical X-ray Machine
for Radiography and Fluoroscopy
Double Tables and double X-ray Tubes
MCX-F300RT
Quotation:USD12970/set FOB Guangzhou
Gastrointestinall radiography
General radiography
Ray-filter-ray radiograp
MAIN TECHNICAL PARAMETER
Two tables and two tubes X-ray machine is separate and special, with fluoroscopy, gastrointestinal photography, general photography, filter-ray photography.
Three parameters kV mA and s are sectional interlocked protection in capacity
Both fluoroscopy and photography are equipment with limited time protection fittings.
Equipment with protection of the manostat for filament of X-ray tube, Space charge compensating, Rotary anode starting and overrunning-temperature protection
Supply power V, fluoroscopy kV, photography kV and motor adjusts continuously.
Equipment with the electric diagnostic bed, fluorescent photography device and electromagnetism locks
The photography table can be used professionally, operated expediently, the ground-track is selected fittings when using.
| Fluoroscopy and gastrointestinal radiography X-ray tube unit | Focus(tungsten target) | Small focus1 x1mm , Big focus2 x2mm |
|
| Fluoroscopy | X-ray tube voltage | 50~95kVp adjustment continuously |
|
| X-ray tube current | 0.5~5mA adjustment continuously |
|
| Gastrointestinal radiographic unit (Diagnostic bed) | Film specification | 127mmx178mm (5″×7″) full and half |
|
|
| 203mmx254mm (8″×10″) full and half |
|
| 254mmx305mm (10″×12″) full and half |
|
| 280mmx356mm(11″×14″) full, one-third and quarter |
|
| Move horizontal (left and right) | ≥±80mm |
|
| Longitudinal direction: (up and down) | More than 400mm |
|
| Lock mode | Electromagnetic Lock |
|
| Radial range | Manual Collimator |
|
