Product Specifications
| Prod Model: |
FW789 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inch |
| Descriptiom: |
Field Monitor Film |
| Resolution: |
1280X800 |
| Brightness: |
400CD/M |
| Application: |
Broadcast Film Making |
| Input: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video,Audio |
| Output: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video |
| Backlight: |
LED |
| Type: |
Camera LCD Screen |
| Compatible Brand: |
Canon |
Product Description

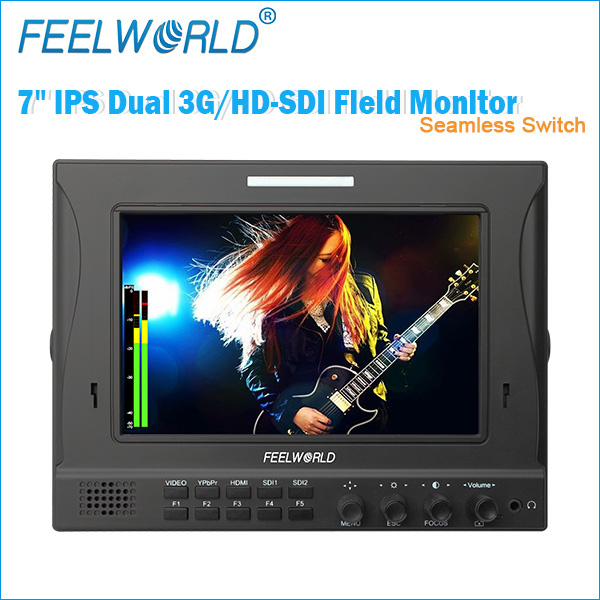

FEELWORLD Camera-on field monitor film HD SDI making model 1280*800 high resolution FW789
Advanced Features:
* Seamless Switch
*Vetor scope
*Waveform
*RGB Histogram
*Histogram
*Peaking Focus Assist
*Camera 5D II Mode
*Check Field(Mono/Red/Green/Blue)
*Scan Mode
*False Color
*Exposure
*Squared segmentation(Zoom one of the images to realize full screen)
*Pixel-to-Pixel
*Mirror image(L/D, L/R)/Freeze
*Embedded Audio
*Zoom-in
*Ratio(4: 3/16: 9)
*Center Marker/screen Marker
*Color temp-adjust
* HDMI Support Mode: 1080/24p/25p/30p; 50i/50p; 60i/60p; 720/50p/60p; 480i/480p; 576i/576p
Inputs: 3G/HD/SD-SDIx2, HDMI, Ypbpr, Video, Audio
Outputs: 3G/HD/SD-SDIx2, HDMI, Ypbpr, Video
|
Description: |
7" Fully Featured Dual 3G-SDI Camera-Top Field Monitor |
|
Model: |
FW-789 |
|
Resolution: |
1280x800 |
|
Dot pitch |
0.117(W) x 0.117(H) |
|
Brightness: |
400cd/m² |
|
Contrast: |
800:1 |
|
Aspect ratio: |
16:9 |
|
Backlight: |
LED |
|
Response time |
5ms |
|
HDMI Support Mode: |
1080/24p/25p/30p;50i/50p;60i/60p;720/50p/60p;480i/480p; 576i/576p |
|
Inputs: |
3G/HD/SD-SDIx2,HDMI,Ypbpr,Video,Audio |
|
Outputs: |
3G/HD/SD-SDIx2,HDMI,Ypbpr,Video |
|
Viewing Angle: |
89°/89°(L/R) 89°/89°(U/D) |
|
Power Consumption: |
≤ 12 W |
|
Input Voltage: |
DC 7-12V |
|
Install Way: |
1/4"-20 Thread Socket(All 4 Sides) |
|
Unit Size: |
210L × 160W ×31.5H(mm) |
|
Unit Weight: |
620g |
|
SDI Support Mode: |
Advanced Features |
|
NO. |
Resolution |
Catalogue |
*Seamless Switch |
|
1 |
1080P@60HZ/59.94HZ |
3G-SDI |
*Vetor scope |
|
2 |
1080P@50HZ |
3G-SDI |
*Waveform |
|
3 |
1080I@ 60HZ / 59.94HZ |
HD-SDI |
*RGB Histogram |
|
4 |
1080I@ 50HZ |
HD-SDI |
*Histogram |
|
5 |
1080P@30HZ/29.97HZ |
HD-SDI |
*Peaking Focus Assist |
|
6 |
1080P@25HZ |
HD-SDI |
*Camera 5D II Mode |
|
7 |
1080P@24HZ |
HD-SDI |
*Check Field(Mono/Red/Green/Blue) |
|
8 |
720P@ 60HZ/59.94HZ |
HD-SDI |
*Scan Mode |
|
9 |
720P@ 50HZ |
HD-SDI |
*False Color |
|
10 |
720P@30HZ/29.97HZ |
HD-SDI |
*Exposure |
|
11 |
720P@25HZ |
HD-SDI |
*Squared segmentation(Zoom one of the images to realize full screen) |
|
12 |
720P@24HZ/23.97HZ |
HD-SDI |
*Pixel-to-Pixel |
|
13 |
480I@60HZ/59.94HZ |
SD-SDI |
*Mirror image(L/D,L/R)/Freeze |
|
14 |
576I@50HZ |
SD-SDI |
*Embedded Audio |
|
|
|
|
*Zoom-in |
|
|
|
|
*Ratio(4:3/16:9) |
|
|
|
|
*Center Marker/screen Marker |
|
|
|
|
*Color temp-adjust |
|
Standard Accessories |
Optional Accessories |
Packing Details |
|
Plastic Sun Shade |
XLR Power Adapter |
Box size |
|
|
Sony F970 Battery Plate |
Sony V Mount Plate |
Per box G.W. |
|
|
Hot Shoe Mount |
Panasonic D28S |
Per Carton |
|
|
Mini HDMI Cable |
Panasonic Anton Plate |
Carton Size |
|
|
Tally Indicator |
BNC Cable |
N.W. |
|
|
Operation Manual |
SDI Cable |
G.W. |
|
|
|
BNC to RCA Connector |
|
|
|
|
DC Power Adapter |
|
|
