Product Specifications
Prod Model: |
1220*2440mm, 1220*4880 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Standard Size: |
1220X2440mm / 1200X2400mm |
Maximum Length: |
4880mm |
Density: |
1.2-1.4G/Cm3 1.44G/Cm3 1.5-1.7g/cm3 |
Thickness: |
4-30mm |
Incombustibility: |
Incombustible Class A1 |
Water Penetration: |
Back Side Without Water Drop After 24 Hours |
Asbestos: |
100% Free of Asbestos |
Certification: |
ISO, CE, SGS |
Raw Materials: |
Cellulose Fiber, Quartz Sand, Portland Cement |
Type: |
Fibre Board |
Material: |
Non-asbestos |
Product Description
Non asbestos Fiber Cement Board
Company and Product Introduction
We are from a big group company name Hangxiao Steel Structure Group Company. Headerboard was established in the year of 2004.
The equipment was introduced from Germany. Annual production capacity for non-asbestos fiber cement board is 20million square meters.
We offer the most innovative Fiber Cement technology and to build complete production lines and/or related consulting services with this kind of industry. Our technology can produce 100% non-asbestos flat fiber cement boards from 4 to 30 mm thickness, density from 1.1 to 1.7g/cm3 for uses like interior and exterior walls, ceiling, decks, container house, prefabricated house etc.
Based on different density/thickness and application, headerboard CCA board can be classified as light compressed board, middle denisty board, high density board, standard size is 1220*2440mmm, max size is 1220*4880mm, other sepcial size also can product.
Light compressed board: Average density is 1.4g/cm3, thickness from 4-14mm
Middle density board: Average density is 1.3g/cm3, thickness from 4-16mm
High density board: Average density is above 1.6g/cm3, thickness from 4-30mm
Other special size also can be made based on your demend.
Application

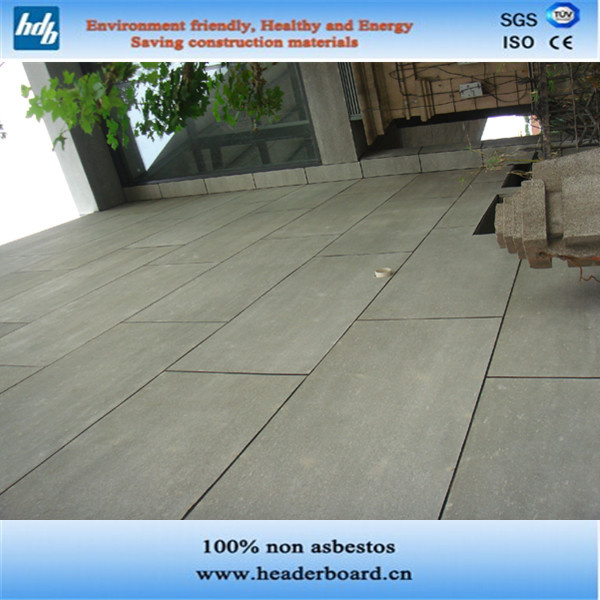

Floor System
Light weight sandwich panel can be innovatively used as floor board. Besides the basic characteristics like sound insulation, waterproof, dampproof, this system has the outstanding advantages such as hight load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc.
Villa&Exterior Wall System
Light weight sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
Interior Partition System
With excellent fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy
Installation and the like characteristics, light weight sandwich board have been widely
Applying to the special positions like partition panel of high-rise and mega-high-rise buildings.
Roof System
Light weight sandwich panel roof system brings brand-new added value and application idea to the traditional roof construction. This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc. The features of light weight and hight strength reduce the use of roof beam-column, reduce the consumption of materials, improve security; Its easy construction time, which bring out its hight integrated performance-price ratio.
Please do not hesitate to contact us in order to bring you detailed information in case you are interested.
For more Details, pls check: http://headerboard.en.made-in-china.com
Product Name |
Middle Density Fiber Cement Board |
Raw Materials |
Cellulose Fiber ,Quartz Sand, Portland Cement |
Standard Sizes |
1220*2440MM |
Maximum Width |
1250 |
Maximum Length |
4880 |
Thickness |
4-16MM |
Density |
1.1-1.4G/CM 3 (Average density is around 1.3g/cm 3 ) |
Wet Expansion |
≤0.23% |
Water Absorption |
≤40% |
Incombustibility |
Incombustible Class A1 |
Water Penetration |
Back side without water drop after 24 hours |
Flexural Strength |
Air dried condition: ≥12;Saturated Condition: ≥8 |
Radioactivity |
Decorative materials Class A |
Asbestos |
100% free of asbestos |
Certification |
ISO, CE,SGS |
Packaging |
Standard wooden pallet |
Trade Terms |
FOB Shanghai/Ningbo,CFR,CIF,EXW |
Payment Terms |
T/T, Irrevocable L/C at sight |
Delivery Time |
Within 15 days if stock not available |
Main Characteristic |
Environmental friendly materials |
Excellent Strength and toughness |
Waterproofing and fireproofing |
Antisepsis and moth-proofing |
Good acoustic insulation and weather resistance |
Good thermal and heat insulation |
Durability and long lifetime |
Application |
Cavity wall for interior partition |
Light concrete grouting wall |
Ceiling board |
Perforated board |
Aluminium lining board and insulation barriers for high-speed train |
Column coverage |
Zhejiang Headerboard Building Materials Co., Ltd., as a member of Hangxiao Steel Structure Group Co., Ltd., is one of the leading manufacturers of cellulose fiber cement flat board in China.
The company was founded in 2004. The factory introduced advanced equipment from Germany, first-class technology and high production capacity. We specialize in producing green, environmental friendly and energy-saving non-asbestos fiber cement board.
The factory covers an area of 65 acres with the building area of 100, 000 square meters. The registered capital is USD12, 659, 000. The total investment in first stage is USD45, 570, 000. The annual production ability reaches 20, 000, 000 square meters. With advanced technology and production scale, we can supply customers with high quality products.
The concept of our enterprise is to "Manufacture Superior Products and Create Nice Life". We commit ourselves to developing new building materials.
Business Type: Manufacturer, Trading Company
Main Products: Fiber Cement Board, Steel Bar Truss Deck
Location: Zhejiang, China(Mainland)
Year Established: 2004
Year start exporting: 2006
Number of Employees: 301-500people
Total Revenue: Confidential
Main Market: MID East, Domestic Market, North and South America, Southeast Asia, Eastern Asia
Certifications: GB/T28001-2001 standard, CE, China Environmental Labeling Product Certificate
Average Lead Time: 15Days
Price: USD 8 per sheet
