Product Specifications
| Prod Model: |
HSV-321 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Small Size Like a Pen |
| Wiring Devices: |
ODF |
| Type: |
Visual Fault Locator |
Product Description

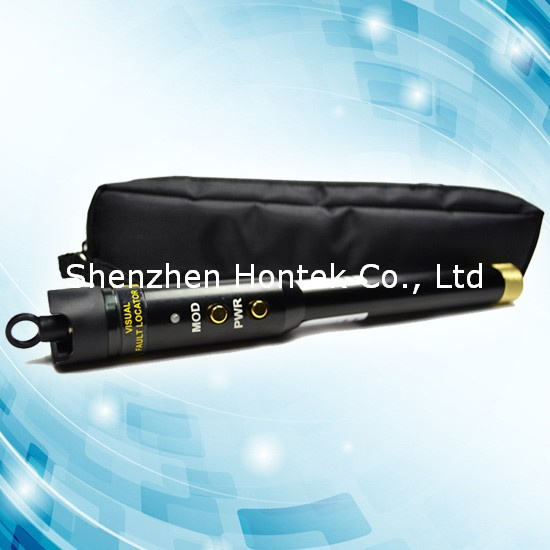

Visual Fault Locator (HSV-321)
Description:
HSV-321 Visual Fault Locator is used for the measurement of single-mode fiber or multi-mode fiber. It features rugged size, universal connector and accurate measurement. HSV-321 visual fault locator easily identifies the cutting, micro-bending of the optic fiber, passes through the jacket fiber and realizes the end to end fiber identification. It's measurement range is up to 8km. It is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in installation and maintenance of fiber optic networks.
Features:
Detects breaks, micro-bends even through jacketed fibers
End-to-end visual fiber identification
Locates fault up to 8km in fiber.
Mechanical fusion splice optimization
Compact size and light weight, suitable for field testing
Any interest, pls contact: Lynn
Mobile: 0086-18565752656
|
Type |
HSV-321 |
|
Output Power |
5mW |
|
Wavelengths(nm) |
630-650 |
|
Spectral Width(20C) |
<5nm |
|
Fiber Model |
SM\MM |
|
Emission |
CW\2Hz |
|
Optical Connectot |
FC/Universal 2.5mm adapter |
|
BatteryOperating Time |
30 hours |
|
Power Supply |
2 AAA alkaline batteries |
|
Operating Temperature(°C) |
-10~+60 |
|
Storage Temperature(°C) |
-25~+70 |
|
Dimension(mm) |
100X50X25 |
|
Unit Weight(g) |
50 |
Shenzhen Hontek Co., Ltd. is a professional international sales company for telecom test equipments. We are the agent of comway, fujikura, sumitomo, exfo, jdsu, anritsu products. At the same time, we have our own factory producing the fiber tester and fiber accessories.
Our customers spread all of the world due to our high quality products with competitive price. Moreover, we have some agents in many countries. In China market our customer include China telecom, factories, huawei, byd, military and many engineering companies.
Our main products:
1. Fusion splicer: Comway (c10/c8)
Sumitomo (type-66/-81c/z1c)
Fujikura (fsm-60s/60r/70r/80s)
Fitel (s178A/s199m12)
Chinese fusion splicer (hsv6000)
2. OTDR: Exfo (axs-100/110, ftb-1/200/500),
Jdsu (mts-2000/4000/6000/8000)
Yokogawa (aq7275)
Ethernet tester: Axs-200/610/630/635/805/850/855)
3. Power meter (ppm-350c, FPM-300, hsv300p)
Light source (fls-300, hsv-300L)
Vfl (fls-240, hsv-321)
Multi loss tester (fot-930, fot-302)
4. Anritsu site master s331L, s331e, s332e.
5. Fiber cleaver (CT-30(a)/FC-6s), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, splice protector, adapter, closure, pigtail, optical switch, patch panel, etc...
7. Maintenance and repair, calibration service for the exfo, sumitomo, fujikura, anritsu.
Shenzhen Hontek Co., Ltd. Will continue to cooperate sincerely with all customers based on our honest, service, value principles and make a better future together with our partners.
