Categories
Price: | US $ 75/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Money Gram,Western Union |
Prod Model: | JYF-F151 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
TFT Display: | 2.4 Inch HD TFT |
Fingerprint Records: | 800 |
Log Capacity: | 5000 |
Access Method: | Fingerprint ,Card and Password |
Communication: | USB,TCP, RS485 |
Output/Input: | Wiegand26/34 ( Optional) |
Download By: | USB or TCP/IP |
Product Usage: | Access Control and Time Attendance |
Communication Interface: | Wiegand26/34 |

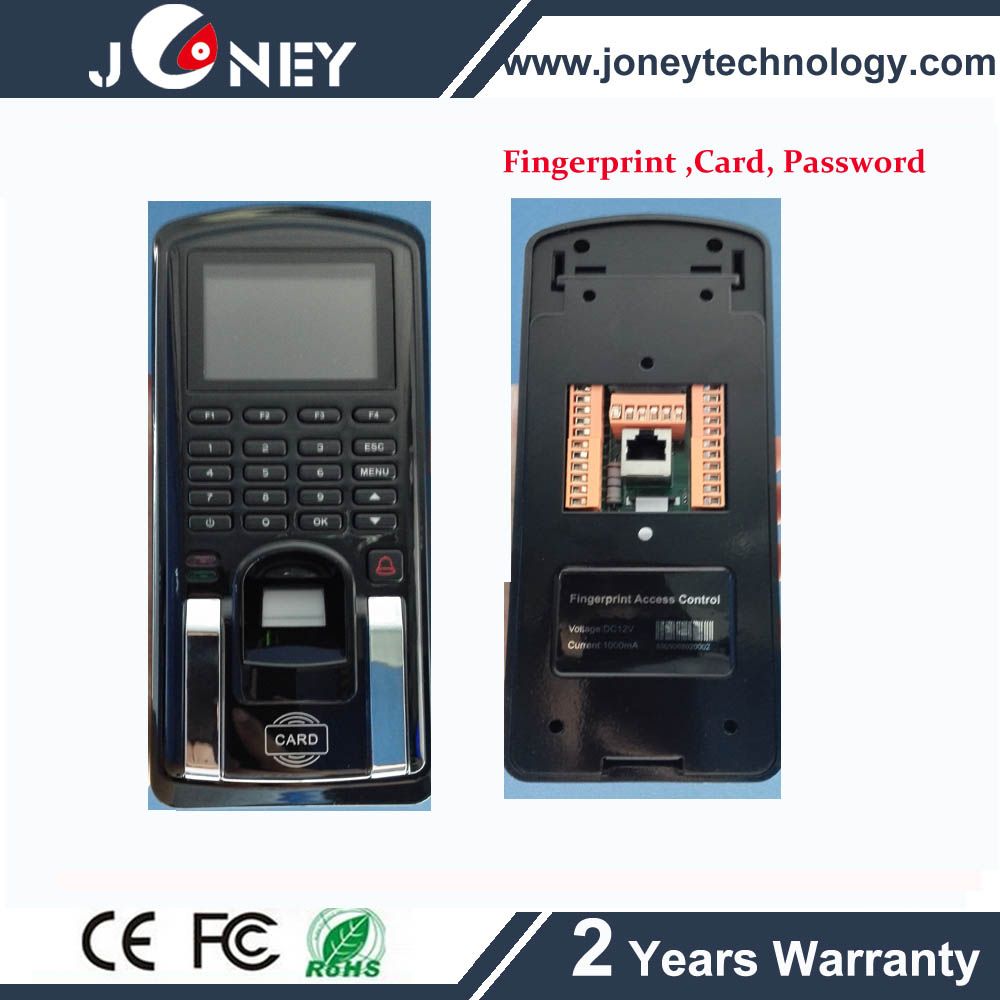

Introduction: fingerprint reader biometric fingerprint reader fingerprint access control
JYF-F151 is an affortable fingerprint access for office environments, it applies mass reliable import components and the most advanced fingerprint arithmetic in the world. Its design strictly follows domestic standard of security products, product must pass the rigid aging test before being sent to customers. It is suitable for office access control and enterprises' internal access control, it has the time attendance function as well. It's stable and safety, so it could satisfy the requirement for both fingerprint validation of access control system and identity verification.
Features: fingerprint reader biometric fingerprint reader fingerprint access control
Specification:fingerprint reader biometric fingerprint reader fingerprint access control
Model | JYF-F151 |
LCD Screen | 2.4 inch TFT (320*240) Color Screen |
Fingerprint Sensor Resolution | 500DPI (Optical sensor) |
Hardware Platform | ZDC2911 |
Algorithm Version | RSFv5.1 |
CPU | ARM926EJ CPU, Running Frequency: 200MHZ |
Communication | TCP/IP, RS485, USB Memory Disk |
User Capacity | 1,000 (optional to 2,000 or 3,000) |
Records Capacity | 100,000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz)/ Password |
Language | Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell | Built-in timing bell(can connect to external timing bell) |
Access Control Interface | Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor |
Professional Access Function | Open door by multilevel verification, anti-pass back |
Power | DC 12V/2A |
FRR | <1% |
FAR | <0.00001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
Certificates | CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm
| Terminal - 181*91*36mm Package - 246*164*71mm |
Weight | Terminal - 0.48 Kg Package - 0.812Kg |
