Fire resistant interior wall material
Advantages of JB panels:
Lightweight: Low ocean freight is always available.
Strength( 4.0MPa): Stable and sturdy.
Fire-proof material: No shape change even in 1100degree fire.
Sound&thermal insulation: Easy and comfort would never be disturbed by outside factors.
Easy installation: More faster but less labor brings lower costs.
Fast installation: 2 workers can finish around 60m2 to 70m2 per day

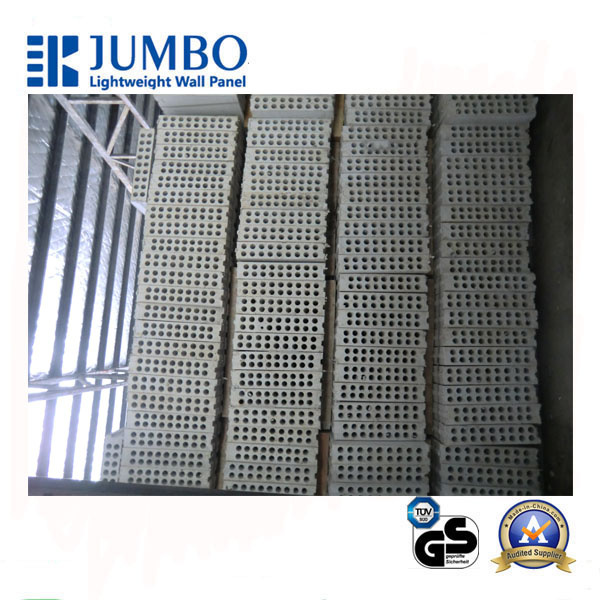

More pictures about JB panels:
Installation guidance:
1. Pop the two-side upper and lower line of control by using ink fountain after cleaning up all joint parts between GB wall panels, the roofs and floors.
2. Fill the groove of GB wall panel with plenty of mortar and then make it up to the corresponding location.
3. Panels connected to the concrete column or side walls should be fixed with a special steel clip.
4. Adjust the verticality of all panels by wedges and stuff all gaps with mortar.
5. Gap bwtween panels shoud be caulked by special mortar.
6. In order to avoid cracking on gaps between panels, cover all gaps with a layer of glass fiber mesh cloth.
Any details or requirements, please contact us without hesitates!
Address: Room2001 Injoy Masion, 188# Wuyi Zhong Rd, Changzhou, Jiangsu, China
Direct line NO.: 86-519-83385737
Fax: 86-519-86546710
|
Specification of lightweight wall panels: |
|
Model: |
JB90 |
|
Size (MM) |
2800*600*90/100/120/150 |
|
Raw material |
Mgo, Mgcl2, fiber etc |
|
Packaging |
steel belt or Ribbon Steel |
|
Sample |
For free |
|
MOQ |
1*40ft. |
With more than 15 years experience as a professional manufacturer of lightweight wall panels, which are widely used as interior walls for commercial and public buildings, such as hotels, office buildings, shopping mall and etc, we have two producing bases, located in Changzhou and Yancheng, with capacity of over 1.2 million square meters per year. We are committed to provide high quality products and looking forward to starting new business with you!
