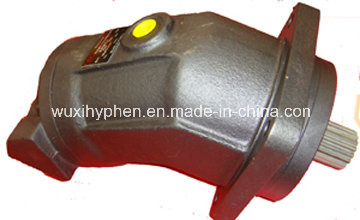

Product Specifications
| Prod Model: |
HA2FM28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Speed: |
3000rpm |
| Max Output Flow: |
45L/Min |
| Net Weight: |
6kgs |
| Type: |
Hydraulic Motor |
Product Description
Wuxi Hyphen Tech. Supply hydraulic motor, hydraulic pump and hydraulic parts, fast delivery and reasonable price.
Our product can replace completely with the following brand in size and performance:
1. REXROTH: MCR03andMCR10 series hydraulic motor, GFT series reducer
2. POCLAIN: MS series radial hydraulic motor(MS02, MSO5, MS08, MS11, MS18, MS25)
3. STAFFA: HMB, HMC series five star hydraulic motor
4. DANFOSS: OMP, OMR, OMS, OMT series orbit hydraulic motor
5. Italy SAI: GM series hydraulic motor
6. PARKER: TG, TE, 2K, 6K series orbit hydraulic motor
7. EATON: 2K, 6K series orbit hydraulic motor
8. REXROTH PUMP: A10VSO, A4VSO, A2FO, A6V, A7V etc. Piston pump
9. Rexroth gear pump, Atos gear pump, Parker vane pump
10. High speed motor: A2FE, A2FM etc
Our mission is supply you good products, supply convenience and speedy service for you, welcome dear
friends to contact us freely^.
| Size | HA2FM |
|
| 5 | 10 | 12 | 16 | 23 | 28 | 32 | 45 | 56 | 63 | 80 |
| Displacement | Vg | cm³ | 4,93 | 10,3 | 12 | 16 | 22,9 | 28,1 | 32 | 45,6 | 56,1 | 63 | 80,4 |
| Speed 1) | nmax | rpm | 10000 | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 5600 | 5000 | 5000 | 4500 |
| Flow | at nmax | qVmax | l/min | 49 | 82 | 96 | 128 | 144 | 176 | 201 | 255 | 280 | 315 | 360 |
| Torque | Δp = 315 bar | Tmax | Nm | 24,7 | - | - | - | - | - | - | - | - | - | - |
| Δp = 400 bar | Tmax | Nm | - | 65 | 76 | 100 | 144 | 178 | 204 | 290 | 356 | 400 | 508 |
| Weight (approx.) | m | kg | 2,5 | 5,4 | 5,4 | 5,4 | 9,5 | 9,5 | 9,5 | 13,5 | 18 | 18 | 23 |
| Size | HA2FM |
|
| 90 | 107 | 125 | 160 | 180 | 200 | 250 | 355 | 500 | 710 | 1000 |
| Displacement | Vg | cm³ | 90 | 106,7 | 125 | 160,4 | 180 | 200 | 250 | 355 | 500 | 710 | 1000 |
| Speed 1) | nmax | rpm | 4500 | 4000 | 4000 | 3600 | 3600 | 2750 | 2700 | 2240 | 2000 | 1600 | 1600 |
| Flow | at nmax | qVmax | l/min | 405 | 427 | 500 | 577 | 648 | 550 | 675 | 795 | 1000 | 1136 | 1600 |
| Torque | Δp = 350 bar | Tmax | Nm | - | - | - | - | - | - | 1393 | 1978 | 2785 | 3955 | 5570 |
| Δp = 400 bar | Tmax | Nm | 572 | 680 | 796 | 1016 | 1144 | 1272 | - | - | - | - | - |
| Weight (approx.) | m | kg | 23 | 32 | 32 | 45 | 45 | 66 | 73 | 110 | 155 | 325 | 336 |
