Product Specifications
| Prod Model: |
YPII-2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roller No: |
2 |
| Material Of Roller: |
Stainless Steel |
| Length Of Roller: |
2500mm |
| Roller Diameter: |
800mm |
| Motor Power: |
1.5kw |
| Steam Traps: |
Imported From Japan |
| Warranty: |
12months |
| Driven Type: |
Electric |
| Automatic Grade: |
Automatic |
| Computerized: |
Computerized |
| Placing Form: |
Horizontal |
| Type: |
Roller Pressing Machine |
| Usage: |
Sheet, Linen, Table-Cloth, Bed Cover |
Product Description

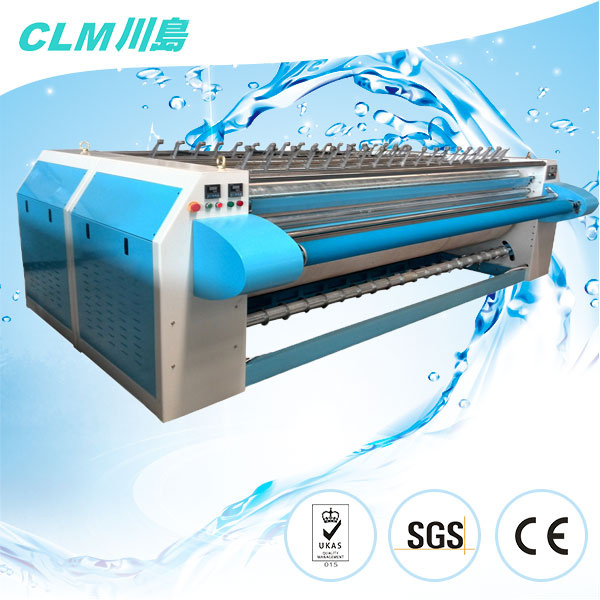

Flatwork linen ironing machine(YPII-2500)
1, The material of roller is stainless steel. And the drive shaft with high precision special steel pipe finishing
Ensures the quality of the bed cover and sheet ironing without belt slant.
2, Sheets effective wrap angle of 300 ° , increased heating area, enhancing the ironing speed, full use
Of the heat, reduce the cost.
3, Frequency control, integrated chain drive design, simple structure, smooth transmission, low failure
Rate, easy maintenance.
4, The design of conbined multi roller is convenient for customers to upgrade 3 rollers, 4rollers, 5 rollers
With increased production, without elimination or additional equipment, reduce operating costs for users.
5, Adopting tension pulley design can adjust the ironing belt tight or loose according to sheet's thickness
To ensure the ironing quality.
6, Japanese original Steam Traps, patent design of roller internal drainage, effectively ensuring the roller
Surface temperature, improve the ironing efficiency and reduce the cost.
7, Both sides of the machine cabinet made by imported CNC laser machine, ensure that all guide roller
Parallelism, making the equipment run more smoothly.
8, Three heating way is available: Steam heating, electric heating, conduction oil heating.
|
Model |
YPII-2800 |
YPI-3000 |
YPII-3000 |
YPIII-3000 |
YPIV-3000 |
YPV-3000 |
|
Maximum Ironing Width(mm) |
2800 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Diameter of Roller(mm) |
800 |
800 |
800 |
800 |
800 |
800 |
|
Number of Roller(pcs) |
2 |
1 |
2 |
3 |
4 |
5 |
|
Ironing Speed(m/min) |
≤16 |
≤10 |
≤16 |
≤28 |
≤30 |
≤30 |
|
Pressure of steam(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Steam Consumption(kg) |
220 |
110 |
220 |
330 |
440 |
550 |
|
Electric-heating power(kw) |
- |
32.4 |
64.8 |
97.2 |
- |
- |
|
Main motor power(kw) |
1.5 |
0.75 |
1.5 |
2.2 |
2.2 |
3.0 |
|
Length(mm) |
3860 |
4060 |
4060 |
4100 |
4060 |
4060 |
|
Width(mm) |
2605 |
1605 |
2605 |
3605 |
4605 |
5605 |
|
Height(mm) |
1630 |
1630 |
1630 |
1630 |
1630 |
1630 |
|
Net weight(kg) |
3300 |
1500 |
3600 |
4000 |
5500 |
7000 |
