Product Specifications
| Prod Model: |
mt. 4631 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Fast Delivery |
| Material: |
Polyester Film |
| Structure: |
Double-Sided FPC |
| Application: |
Aviation and Aerospace |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
Product Description

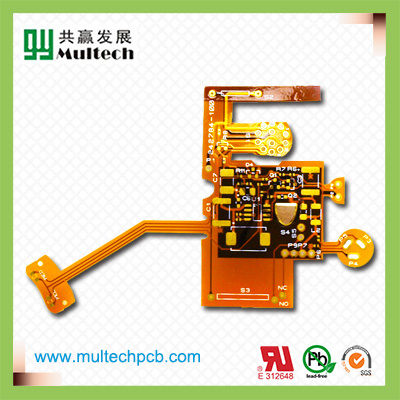

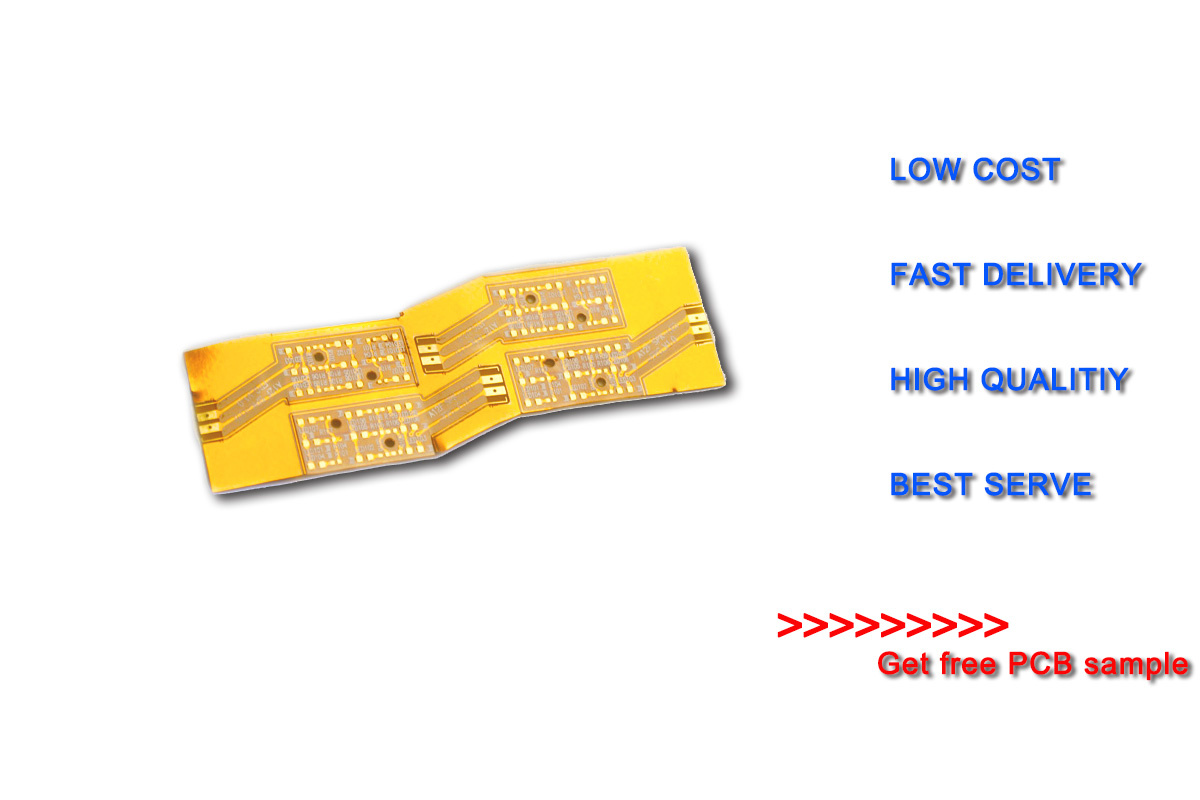

PCB FeatureFlexible printed circuit board.
Packaging & DeliveryPacking with carton and stuffed pearl cotton inside.
2 layer PCB delivery about 10days
ApplicationOur products are applied in aerospace& defence, communication equipment, medcial appliance, industrial, sensors, power generation, LED and so on...
Free PCB sampleWe can offer free PCB samples for you.
|
Item |
Capability |
|
PCB Layers |
1-24 Layers |
|
Base Material |
FR4,CEM1,CEM3,ALU,FR2,FR1,Polymide,Rogers,Arlon,Teflon |
|
Copper Thickness |
0.5-6 OZ |
|
Impedance Control |
Yes |
|
Peeable Mask |
Yes |
|
Min.Line Width |
0.08mm |
|
Min.Line Spacing |
0.08mm |
|
Min.Annual Ring PTH |
0.15mm |
|
PTH |
0.20mm±0.05mm |
|
Non-PTH |
0.15mm±0.05mm |
|
Hole Aspect Ratio |
10 |
|
Min.Board Thickness |
Singel&Double side 0.2mm |
|
Multilayer(4,6,8,10 layer)0.4mm,0.55mm,0.8mm,0,8mm |
|
Max Board Sixe |
600*900mm,400*1200mm |
|
Solder Mask Pitch |
0.1mm |
|
Outline Tolerance |
±0.15mm |
|
V-CUT Tolerance |
±0.10mm |
|
thickness Tolerance |
MIL-P-13949 Class 2 |
|
Gold Finger |
5u"-50u" |
|
Surface Finish |
HASL,LF HAL,Immersion Gold,Immersion silver,Flash Gold,Flux Coat&OSP |
|
Special Capability |
Burial/blind vias,Impedance Control,via plug,BGA,Gold Finger |
|
Test |
Fly probe test,E-test,Inspection AOI test |
|
Certificate |
RoHS,ISO9001:2000,ISO14001:2004,SGS,UL |
Multech Electronic Limited specializes in manufacturing Printed Circuit Boards from 2 to 24 layer. We offer quick-turn, high technology printed circuit boards in prototype and moderate production volumes. All of which are manufactured at our modern production plant in China.
In an increasingly competitive nowadays, Base material unceasingly rises, the pressure of competition continuously appear to every enterprise, so reduce the purchase cost became to the most important action in all enterprise. Well, In gazillion PCB factory in Chinamainland, MULTECH is one of PCB Manufacturer that you search for high quality and low cost.
We go on where other companies want to stop.
We can always provide you with the latest technologies because of our close cooperation with Universities and R&D departments.
We always are in close contact with material suppliers and want to test their latest material that they want to bring on to the market.
In this modern world where change is a daily common thing it's good to have a partner like "MULTECH".
We are more than happy to make your thoughts reality and make your first design to a real live Printed Circuit Board.
We are ISO9001 certificated, and UL approved. Follow up IPC-600F Class 2 standard.
Our Capability:
No. Of Layers Available 1- 24
Base material: FR4, CEM1, CEM3, ALU, FR2, FR1, Polymide, Rogers, Arlon, Teflon)
Flux Coat, Flash Gold, HASL, Immersion Gold & OSP
Min. Line Width: 0.08mm
Min. Line Spacing: 0.08mm
Min. Annual Ring PTH: 0.15mm
Non-PTH: 0.20mm
Min Hole Size PTH: 0.1mm
Non-PTH: 0.15mm
Hole Aspect Ratio: 10
Min. Board Thickness Single & Double Sided 0.2mm
Multilayer (4, 6, 8, 10) 0.4mm, 0.55mm, 0.8mm, 0.8mm
Max Board Size: 600mm X 900mm, 400*1200mm
Solder Mask Pitch: 0.1mm
Hole Tolerance: PTH +/-0.05mm
Non-PTH: +/-0.05mm
Hole Position Tolerance: +/-0.05mm
Outline Tolerance Routing: 0.15mm
Punching: +/-0.15mm
Thickness Tolerance: MIL-P-13949 Class 2
V-Cut Tolerance Depth: +/- 0.10mm
Position: +/-0.10mm
Gold Finger: 5 u" - 50 u".
