Product Specifications
| Prod Model: |
HC-FPC-022 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Exterior: |
Good Looking |
| Touch Feeling: |
Excellent Touch Feeling |
Product Description

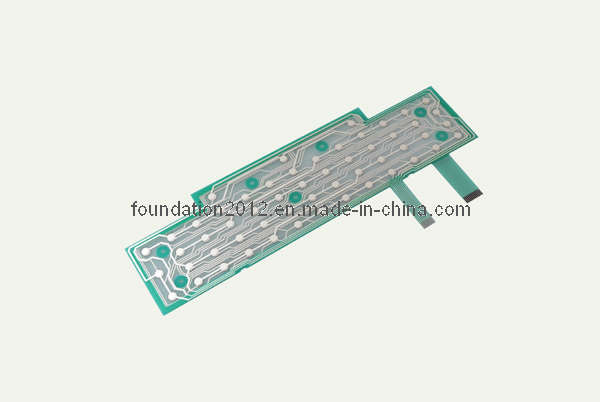

Flexible Printing Swith Panel FPC Control Keypad Circuit Board
(1) Features:
Overlay material: Polyester (PET)of AUTOTYPE or Polycarbonate(PC) of LEXAN
Rear adhesive: 3M 467MP, 3M 468MP, etc
Matching color: Pantone and RAL color matching system
Tail, pin and circuit layout: According to the requirement of customers
Metal dome or poly dome
(2) Electrical features
Maximum circuit rating: 50 V DC, 100mA, 500mW
Contact resistance: 0.5-10Ω (varied from the trace length and material used.
Insulation resistance ≥ >= 100MΩ At 100V
Dielectric withstand: 250VRms (50 to 60 Hz/min. )
Contract bounce ≤ <=10 ms
(3) Mechanical features
Actuation force: Flat type=57 to 284G (2 to 10oz), tactile type=170 to 397 g(6 to 14 oz)
Switch stroke: Flat type=0.1 to 0.5mm, tactile type=0.6 to 1.5mm
(4) Environmental features
Operation temperature: Flat/metal dome: -20 to 80, poly dome: -20 to 55
Storage temperature: Flat/metal dome: -40 to 80, poly dome: -40 to 60
Operation humidity 90% (40)for 240 hrs
Vibration 20GS max (10 to 200Hz, MIL-STD-202, M204, condition B)
|
|
Technical Specification Of Membrane Swithc |
|
|
wire lead resistance: |
<1Ω/CM |
|
Life time: |
>1 Million times |
|
rated current: |
25-100mA,0~30V DC |
|
Operation Temperature: |
-104°F~158°F |
|
Rated Voltage: |
<50V, DC |
|
Operation Humidity: |
at104°F,<98%RH |
|
Insulation resistance: |
<100MΩ,250V DC |
|
Dome springback time: |
<5 msec |
|
Switch travel: |
Flat Type 0.05-0.3mm |
|
Base Material voltage withstand: |
1500 V DC |
|
tactile type:0.3-1.5mm |
|
Tail flexiblility: |
any angle within 180 degree |
