YT-600 800 1000 1200 1500 2000 Paper cup roll to roll letterpress flexo printing machine
1. Resin plate
2. For producing packing bag
3. Adjustable longitudinal register device

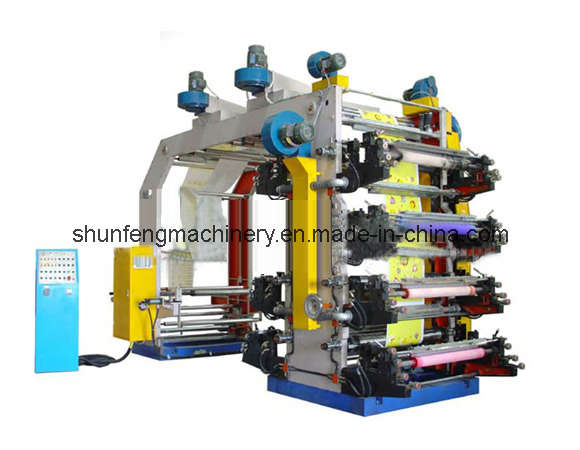

Paper cup roll to roll letterpress flexo printing machine, Flexographic printing machine, non-woven fabric printing machine.
Performance:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Model of Machine |
YT-8600 |
YT-8800 |
YT-81000 |
Max. Width of Printing Material |
600mm |
800mm |
1000mm |
Max. Printing With |
560mm |
760mm |
960mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
Max. Diameter of Roll Material |
φ 600mm |
φ 600mm |
φ 600mm |
Printing Speed |
60m/min |
60m/min |
60m/min |
Thickness of plate(Including Two-sides Glue Paper) |
2.38mm |
2.38mm |
2.38mm |
Total Power |
34kw |
37kw |
42kw |
Weight of Machine |
5500kg |
57500kg |
6000kg |
Overall Dimensions |
4800× 1850× 3200mm |
4800× 2050× 3200mm |
4800× 2450× 3200mm |
Ruian Shunfeng Packaging Machinery Company was founded in 1995, located in Zhejiang Ruian city. On the base of plastic packaging machines of China. It has a long historical standing and a large scale and specializing in plastic packaging machines and equipments.
We are engaged in manufacturing Complete sets of plastic packaging machines and equipments such as Film Blowing Machine, Co-extrusion Film Blowing Machine; Rotogravure Printing Machine or Flexographic Printing Machine; Bag-making Machine, Non Woven Bag Making Machine; Paper Bag Making Machine; Recycle Machine; Laminating Machine; Slitting and Rewinding Machine; Air Bubble Film Machine; Stretching Cling Film Machine, Laminating and Coating Machine, Label Printing Machine; Self-adhesive Label Die Cutting and Slitting Machine. Our products sell well at home and widely exported to lots of countries and regions. And they are favoured by domestic and oversea customers all along.
The products in our factory has passed ISO9001 certification and CE Certification. And Shunfeng enterprise has been awarded the honor of high-new technology enterprise, administrati- on example enterprise.
In the ten years, based on the enterprise theory of "Seeking existence through quality, seeking market through honesty and development through technology. " We pay attention to customers' needs, reinforce product research and development and perfect after-sale service. We insist on "Shunfeng can not develop without customers' success. "
We sincerely welcome the guests from home and abroad to visit for creating a brilliant future together.
