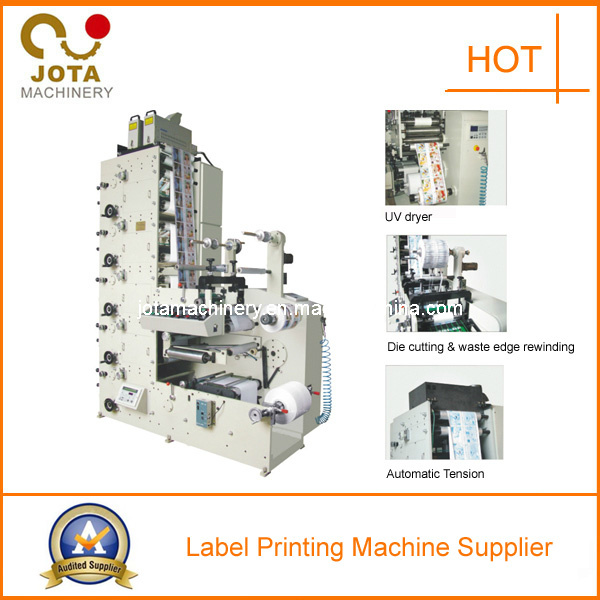

Flexographic Thermal Paper Printing Machinery
Ceramic Anilox Cylinder
Magnetic Powder Brake/Clutch
UV dryer
Specifications:
--Flexographic Thermal Paper Printing Machinery adopts the ceramic anilox cylinder to transfer the ink.
--Unwinding and rewinding are controlled by magnetic powder brake/clutch
--Each printing unit adopts 360° Plate adjustment
--Each printing unit equips with IR drier
--This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
--The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
--The main machine inverter is imported.
--The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label.
|
Printing speed |
10-60 m/min |
|
Printing color |
4 color |
|
Max. web width |
330 mm |
|
Max. printing width |
320 mm |
|
Max. unwinding diameter |
500 mm |
|
Max. rewinding diameter |
500 mm |
|
Printing length |
175-380 mm |
|
Power |
5.5kw |
|
Paper Thickness |
60-250g |
|
Precision |
±0.10mm |
|
Voltage |
three-phase,four-wire,380V,50HZ |
|
Weight |
1900kg |
|
Overall Dimensions(LxWxH) |
2000x 1100 x 2200mm |
Focusing on the Environment and Labor Safety, Jota Machinery Industrial (Rui'an) Co. Ltd is specialized in the Paper Slitter Rewinder, Paper Sheeter, Coating and Laminaiton as well as the complete range of other converting equipment with Innovance and high Technology.
