Product Specifications
| Prod Model: |
DELE-GL6060-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions(Mm): |
596*596*80 |
| Flicker Free: |
Yes |
| Light Source: |
LED |
| Type: |
Hanging |
| Certification: |
RoHS |
| Appearance: |
Square/Rectangle |
| Emitting Color: |
Pure White/Warm White/Neutral White |
| Housing Material: |
Aluminum Alloy |
| Voltage: |
AC100V~240V |
| Beam Angle: |
120° |
| Dimmable: |
Optional |
Product Description

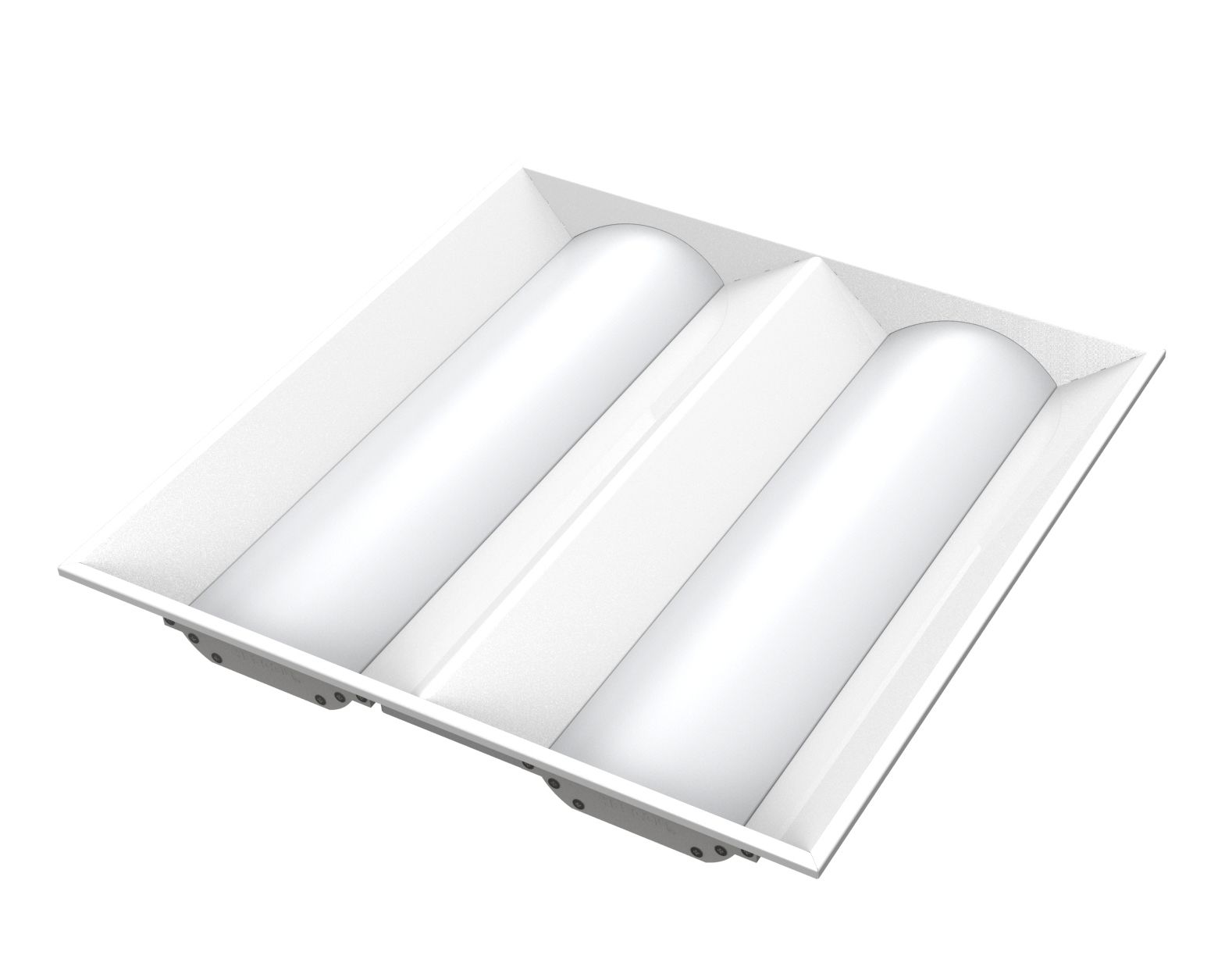

Flicker-free LED Ceiling Troffer, Panel Light
Features:
1. Double reinforcement structure design Redundant heat dissipation.
2. Optimized the LED permutation, achieve the best lighting effects.
3. SMD 2835 with imported LED chip, ensure the efficient, low consumption and stablty.
4. Kinds of luminous color, adapt to the requirements of different applications.
5. AC input by 100~240V, 50/60Hz, PF>0.9, high efficiency, low power consumption.
6. Energy saving, environmental protection, safety, non-pollution.
7. Epistar led chip, Higher LED luminous efficacy: 140lm/w Longer lifespan.
8. Ra=80, Power Factor>0.90.
Optical Parameters:
1. DELE-GL6060-36(3000K: 2628lm)
2. DELE-GL6060-36(4000K: 2916lm)
3. DELE-GL6060-36(6000K: 3240lm)
Panel Light with 6000K CCT
| Item No. | DELE-GL6060-36 |
| Dimensions(mm) | 596*596*80 |
| Power (W) | 36±1W |
| Input Voltage (V) | AC100V~240V 50Hz /60Hz |
| LED Qty(PCS) | 360 |
| LED Chip | Epistar SMD(2835) |
| PF | ≥0.9 |
| Luminous Plux(Lm) | Milky Cover: ( W1 ) 3240±10% |
| CCT | 5500-6500K( W1 ) Pure White |
| 2800-3200K( W2 ) Warm White |
| 4000-4500K( W3 ) Neutral White |
| Lens Beam Angle(2θ 1/2) | 120° |
| Ra | 70/80 |
| IP | IP54 |
| Working Tep. | -20°C~+50°C |
| Working Hum. | 10~90RH |
| NW(kg) | 3.68±10% |
| Packing Dimensions(mm) | 630*630*100 |
| Working Hours | 35,000 |
Hi-semicon is vertically integrated manufacturer. We manufacture our product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on
System reliability and compatibility
Optical quality: Flicker-free, Anti-glare, High CRI
Light dispersion
Heat-control technology
Nano-coating technology
Intelligent control-DALI, Zigbee, Sensor est.
What can we do for our customer
Reliable product
System integration merits
Balance between Reasonable cost and function
Responsibility warranty
Thoughtful in-depth customization
Hi-semicon create long-term value for our customers.
