Product Specifications
| Prod Model: |
A+E 66L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: |
< 3 Mpa |
| Media Density: |
> 0.7g/cm3 |
| Explosion-Proof: |
Exd II Bt4 |
| Principle: |
FBG |
| Kind: |
Input Type |
| Structure: |
All in One |
| Range: |
0-6m (0-19.68ft) |
| Material: |
316L |
Product Description

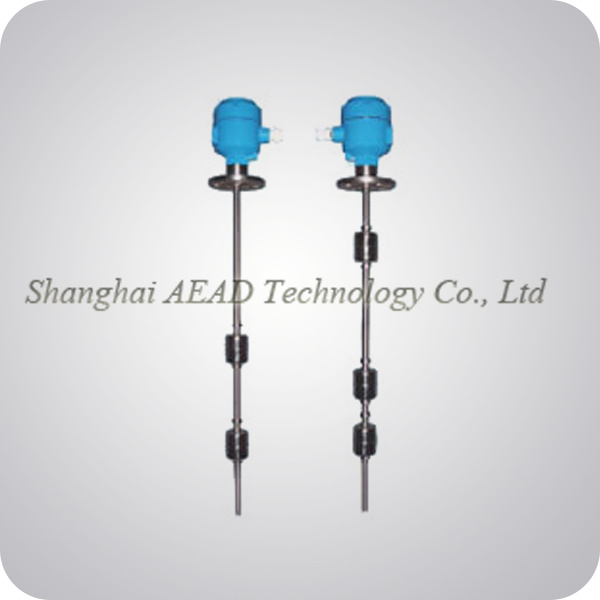

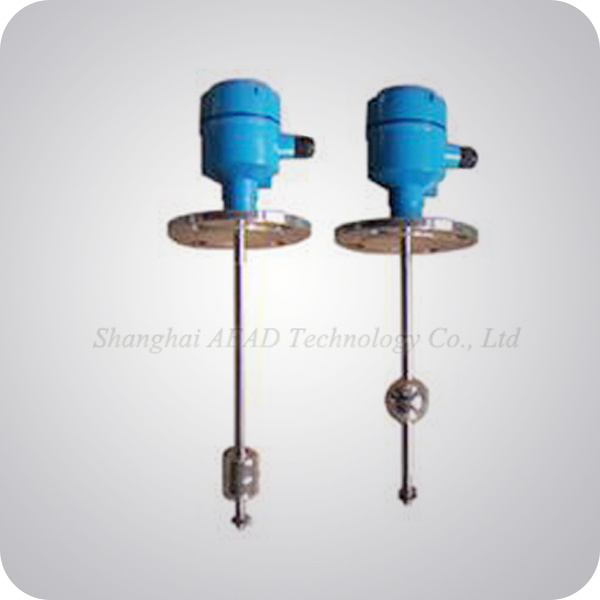

Floating Ball Liquid Level Meter (A+E 66L)
Overview
This floating ball level meter is composed of measuring tube, floating reed switch and other key components. There are several reed switches in the sensor. When the floater equipped with magnetic steel moves up and down along with liquid level, the reed switch in different position will move, making the resistance outputted by the sensor will change, and the liquid level signal will be transmitted.
Features:
--Able to overcome false liquid level effect caused by liquid bubbles.
--Indicate on site with 4-20mA standard output signal.
--Fixed-point alarm or continuous measurements can be selected arbitrarily.
The level meter is widely used in the oil refining, chemical industry, papermaking, food, and the sewage treatment industry. It can display, give alarm and control in the instrument control room for liquid level of medium in open, sealed containers and underground tank. The medium to be tested can be water, oil, acid, alkali, industrial effluent and other conductive and non-conductive liquids.
How to select?When you are not very clear about how to select a floating ball level meter model, please kindly tell us as much about the project so that we could recommend you an appropriate one, such as:
1) Where will be the meter used?
2) What's the measuring media?
3) How is the measuring range?
4) How is the working condition, temperature, pressure, foam & dust?
5) How about the process connection and installation?
6) Other specific requirements.
All your information would be highly appreciated.
Model | A+E 66L |
|
| Measuring Rang | xx |
|
| Process Pressure | 0 | normal |
| 1 | 1.6 Mpa |
| 2 | 2.5 Mpa |
| 3 | specialized |
| Flange | 1 | DN50 |
| 2 | DN80 |
| 3 | DN100 |
| 4 | DN150 |
| 5 | specialized |
| Explosion-proof | 0 | N/A |
| 1 | yes |
| Alarm Point | 1 | N/A |
| 2 | two points |
| 3 | three points |
| 4 | four points |
| Output | 1 | 4-20mA continuous value |
| 2 | alarm points |
