Flow Meter/Digital Flow Meter/ PD Flow Meter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

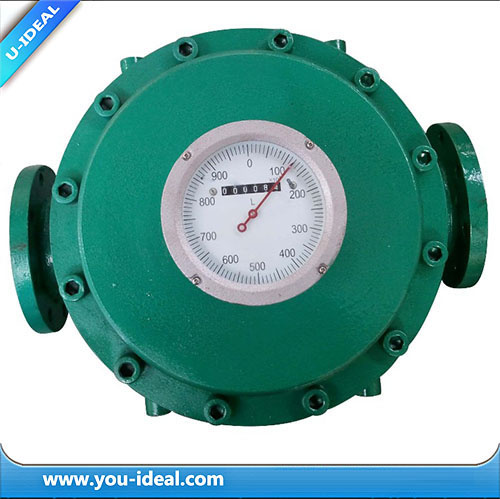

LC Digital Oval Gear Flow Meter Crude Oil Flow Meter Heavy Fuel Oil FLow Meter Vegetable Oil Flow Meter
Oval Gear Flowmeter/ LC OVAL GEAR FLOWMETER/ high viscosity fluid flow rate measuring/positive displacement meters
Usage: Is mainly used for low viscosity oil flow rate measurement which fluid viscosity from 0.1~1000MPas.
For liquid, oil, diesel oil volume measuring and control.
Diesel fuel flow meter/ oval gear flow meter is used to transfer high viscosity liquids with good repeatability and durability. It is widely used on petroleum, chemical, food industry ect.
Have
mechanical counter and
electric counter two models.
FeaturesDiesel fuel flow meter
Sereval materials option
Digital display available
Compact construction
Precision: <± 0.5% 0.2%
Shell Material: Cast steel/stainless steel/cast iron/ PPS, Bronze, Aluminium etc.
Rotor Material: Cast steel/stainless steel/cast iron/, Bronze, Aluminium,Hastelloy,
graphite etc.
Bearing material: graphite, ceramics, hard alloy, Bronze, stainless steel sealing bearing etc.
O ring Material: Viton, stainless steel, Teflon
Mechanical counter and electronic counter types: Pulse output; 4~20mA, RS485, Hart
Power supply: Battery 3.6V Lithium battery; 12VDC~24VDC, power consumption<2W
Zero reset functionOperation pressure: 1.6Mpa/2.5Mpa/4Mpa, 6.3MPa, 10MPa, 16MPa, 25MPa, 42MPa
Temperature: -40~+300 º C
Environment conditions: -30º C~+70º C;
humidity 5%~95%; atmospheric pressure 86Kpa~106kpa;Explostion-proof Class: IaII CT4, dII BT4
Advantages:
Output available;
Low pressure drop;
Mechanical display, easy operation;
Compact construction, easy maintenance;
Flexible installation: Horizontal or vertical.
Our other related products: level gauges, flow meters, pressure transmitters, indicators, industrial systemJenny Zhao
General Manager
Tianjin U-ideal Instrument Co., Ltd
Adds: Tianjin, China
|
|
Shell and cover |
cover plate |
oval wheel |
Rotary shaft |
Sheath of shaft |
Nominal pressure(MPa) |
|
LC-A |
Cast steel |
Cast iron |
Stainless steel |
Bronze(with oil) or rolling bearing |
1.6 |
|
LC-E |
Cast steel |
Cast iron\Stainless steel |
Under DN50 6.3
DN80-100 4.0
DN150-200 2.5 |
|
LC-Q |
Cast iron |
Cast iron |
Alloy aluminum, engineering material |
graphite |
1.6 |
|
LC-B\C |
Stainless steel |
Stainless steel |
Stainless steel |
graphite |
1.6\2.5 |
|
LC-L |
Cast
aluminum |
Cast iron,
Stainless steel |
Alloy
aluminum, engineering material |
Bronze(with oil)\graphite\rolling bearing |
1.6 |
Notes:1. OCr18Ni12Mo2Ti for type LC-C;OCr18Ni9Ti for type LC-B.
2. Flange is convex under 2.5MPa ,and roughness at 6.3 MPa;and both of the above at 4.0 MPa. |
|
Type |
DN |
Viscosity (MPa. s) |
|
<0.3
|
0.3~0.8 |
0.8~2 |
2~200 |
200~1000 |
1000~2000 |
|
LC-10 |
10 |
|
0.2-0.5 |
|
0.08-0.5 |
0.08-0.5 |
0.05-0.5 |
0.06-0.3 |
0.03-0.3 |
0.03-0.2 |
Flow Range
unit:m 3 /h |
|
LC-15 |
15 |
|
0.75-1. |
|
0.3-1.5 |
0.3-1.5 |
0.15-1.5 |
0.2-1.0 |
0.1-1.05 |
0.07-0.75 |
|
LC-20 |
20 |
|
1.5-3 |
1-3 |
0.4-3 |
0.5-3 |
0.3-3 |
0.4-2.1 |
0.2-2.1 |
0.15-1.5 |
|
LC-25 |
25 |
4-6 |
3-6 |
2-6 |
0.8-6 |
1-6 |
0.6-6 |
0.8-4.2 |
0.4-4.2 |
0.3-3 |
|
LC-40 |
40 |
9-15 |
7.5-15 |
5-15 |
2-15 |
2.5-15 |
1.5-15 |
2.1-10.5 |
1.0-10.5 |
0.7-7.5 |
|
LC-50 |
50 |
10-24 |
8-24 |
8-24 |
3-24 |
4.8-24 |
2.4-24 |
2.4-16.8 |
1.6-16.8 |
1.2-12 |
|
LC-B40\50 |
40\50 |
8-20 |
6-20 |
6-20 |
4-20 |
4-20 |
2-20 |
2.8-14 |
1.4-14 |
1.0-10 |
|
LC-B65 |
65 |
27-40 |
20-40 |
15-40 |
5-40 |
8-40 |
4-40 |
5.6-28 |
2.8-28 |
2-20 |
|
LC-80 |
80 |
40-60 |
30-60 |
20-60 |
8-60 |
12-60 |
6-60 |
8.4-42 |
4.2-42 |
3-30 |
|
LC-100 |
100 |
67-100 |
50-100 |
34-100 |
13.-100 |
20-100 |
10-100 |
14-70 |
6-70 |
5-50 |
|
LC-150 |
150 |
38-120 |
38-120 |
40-120 |
12-120 |
24--120 |
12-120 |
15-100 |
10-90 |
16-80 |
|
LC-200 |
200 |
227-340 |
170-340 |
114-340 |
43-340 |
56-340 |
34-340 |
47.6-238 |
23.8-238 |
17-170 |
|
LC-250 |
|
|
|
|
80~500 |
150~450 |
|
|
|
|
|
|
Accuracy class |
|
0.5 |
0.5 |
0.2 |
0.5 |
0.2 |
0.5 |
0.2 |
0.5 |
0.5 |
|
|
Note |
"gal/h" could be special ordered. |
|
Model
|
Nominal Diameter(mm)
|
Flow Rate(m³ /h)
|
Unit Pulse(mL/P)
|
LC-15
|
15
|
0.18-1.8
|
9
|
LC-20
|
20
|
0.25-2.5
|
10.48
|
LC-25
|
25
|
0.6-6
|
18.24
|
LC-40
|
40
|
1.5-15
|
31.5
|
LC-50
|
50
|
2.4-24
|
80.6
|
LC-80
|
80
|
5-50
|
148.7
|
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Zero Reset |
| Fluid: |
Diesel Oil |
| Measuring Principle: |
Mechanics |
| Accuracy: |
±0.2-0.5% |
| Sensor: |
Tube/Flange |
| Size: |
Dn10~Dn500 |
| Type: |
Coriolis Mass Flow Meter |
| Measuring Media: |
Liquid |
