Product Specifications

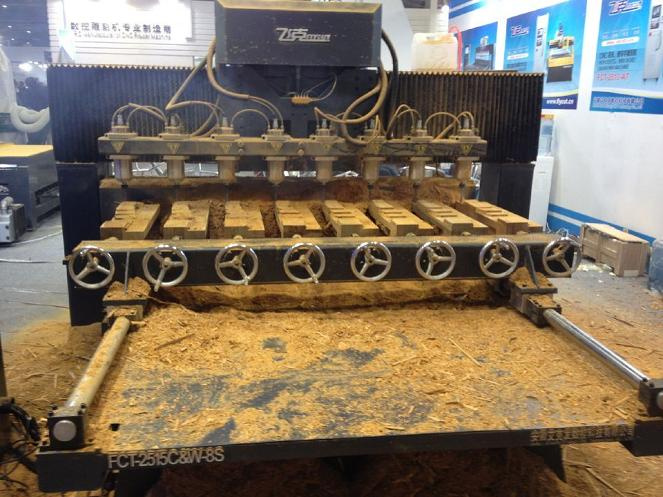

Prod Model: |
FCT-2515C&W-8S |
Markets: |
North America,Southeast Asia,Mid East |
Flat Working Size: |
2150X1500X200mm |
Rotary Length: |
1500mm |
Rotary Diamerter: |
250mm |
Spindle Type: |
Water Cooling Spindle |
Spindle Power: |
Water Cooling 2200wx8 |
Engraving Speed: |
10000mm/Min |
Motor: |
Stepper |
Control System: |
4 Axis Ncstudio |
Transmission: |
Taiwan Tbi Ball Screw |
Guide Rails: |
Taiwan PMI Linear Square Rails |
Spindle Layout: |
Horizontal |
Feed Mode: |
Mechanical |
Controlling Mode: |
CNC |
Certification: |
ISO |
Spindle Number: |
Eight Spindles |
Product Description
Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Techinical Paramerters:
Model | FCT-2515C&W-8S |
Rotary diameter | 250mm |
Rotary length | 1500mm |
Flat working size | 2150×1500×200mm |
Spindle power | Water cooling 2200W×8 |
Spindle rotate | 6000~24000RPM |
Tool diameter | 3.175,6,12.7mm |
Machine structure | Industry square tube structure |
Transmission | XYZ ALL WITH TBI ball screw |
XYZ rails | PMI square rails |
Dust-proof system | XYZ high quality dust cover |
Mechanical accuracy | less than 0.03/300mm |
Engraveing speed | 10000mm/min |
Data transmission | by pc connection directly or USB |
Support format | G code or HPGL |
Working voltage | AV220V/380V 50Hz |
Net weight | 3500kg |
The reason that you choose us :
1. One year warranty for the whole machine and maintenace for lifetime.
2. Free installation and test before shipping and free training for operators.
3. Advice for the best solutions for customers' requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
Any question,please contact us with no hesitation:
alice(overseas department manager)
Tel:+86-13966703473
Anhui AIkefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and offers services of numerical control and photoelectric products. The company has independent license for export and import, bears" Innovate technology and creat valus for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
