Product Specifications
| Prod Model: |
HD-F750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Operation: |
Easy to Operate |
| Capacity: |
200kg |
| Test Speed: |
100±20mm/Min |
| Type: |
Compression Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Display: |
Computer |
Product Description

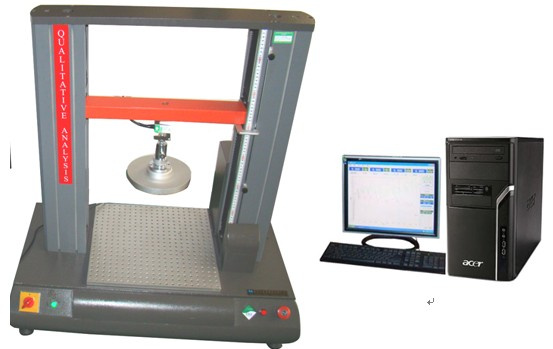

Foam Compression IFD Testing Instrument
Foam Compression IFD Testing Equipment is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen
With a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness
Of sponge, foam and other materials.
| Control and display | Computer |
| Sensor | Load cell |
| Capacity | 200KG |
| Unit | Kg, N, LB |
| Up plate | Diameter 200mm, bottom fillet R1mm |
| Low plate | 420×420mm, holes diameter 6mm, space 20mm |
| Max stroke | 200mm |
| Test speed | 100±20mm/min |
| Motor | AC motor |
| Driver | Taiwan high precision ball screw |
| Power | Single phase, 220V, 50Hz |
| Weight | 160KG |
| Dimension | 1220×750×1260mm |
