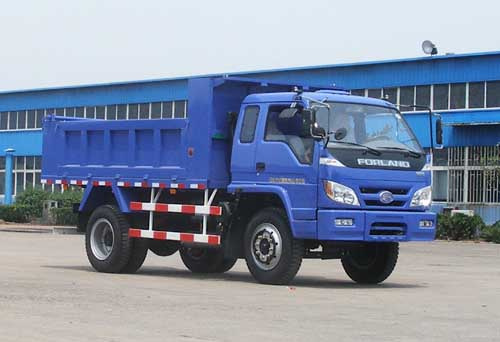

Dump truck, 6 ton load
Dumper, yuchai diesel engine
Tipper truck, foton truck
Body size: 4500*2300*800 mm
Payload: 6000 kg
Engine: Yuchai diesel engine, 135 hp
The engine with strong power is of safety, reliability, good acceleration on start-up, outstanding power performance.
Hydraulic power steering makes the steering convenient, safe and reliable. Adjustable steering wheel can effectively relieve the burden of driver.
Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance.
The cab has front tilting design. Easy engine maintenance and repair.
|
BJ3073DCPFA-S4/3072AEL34100L35-1 ( RHD ) |
|
Product positioning: short-distance transportation or transferring of agricultural and sideline products and construction materials. |
|
Working condition: rural roads, pavement of sand/cement roads and mountain roads. |
|
Engine |
|
Engine model and emission |
phaser135Ti (Euro II) |
|
Engine type |
Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler |
|
Rated power of engine (kw/rpm) |
101/2600 |
|
Maximum torque (N.m/rpm) |
445/1400-1600 |
|
Engine displacement (L) |
3.99 |
|
Gearbox |
|
Gearbox type |
WLT6T120 |
|
Gearbox speed ratio |
i1:6.32,i2:3.927,i3:2.283,i4:1.396,i5:1.00,i6:0.789 |
|
Rear axle |
|
Rear axle type |
Dead axle full float axle |
|
Rear axle load (T) |
7.6T |
|
Rear axle speed ratio |
6.33 |
|
Dumping type/oil cylinder size |
Single-top amplification mechanism/ HG-E160×700 |
|
Cabin type/width |
Right side driving, flat head,single-row/1900 |
|
Drive form |
4×2 |
|
Tire type/number |
8.25-20/6+1 |
|
Brake |
Service brake type |
Drum type, air braking |
|
Parking brake type |
Energy storage spring rear wheel braking |
|
Steering device |
Power steering |
|
Weight parameter |
|
Curb weight (Kg) |
4200 |
|
Rated load capacity (Kg) |
6000 |
|
Performance parameter |
|
Maximum speed (km/h) |
90 |
|
Maximum gradeability (%) |
≥ 25% |
|
Fuel consumption per hundred kilometers (L/100km) |
12.45 |
|
Minimum turning radius (m) |
7.599 |
|
Minimum ground clearance (mm) |
≥ 200 |
|
Maximum lift degree (°) |
51.9° |
|
Dimension parameters |
|
Overall dimensions (LxWxH)mm |
6130×2200×2600 |
|
Internal cargo body dimensions (LxWxH)mm |
4200×2100×800 |
|
Cargo body capacity (m³) |
7 |
|
Wheelbase (mm) |
3450 |
|
Front/rear wheel track (mm) |
1669/1680 |
|
Front/rear suspension (mm) |
1130/1550 |
|
Rated voltage (V) |
24 |
|
Capacity of the fuel tank (L) |
120 |
|
Standard configuration |
Heater,Spare tire, electronically controlled flameout, adjustable steering wheel |
|
Selective configuration |
air-conditioner |
|
The engine with strong power is of safety, reliability, good acceleration on start-up, outstanding power performance. |
|
|
|
|
|
Hydraulic power steering makes the steering convenient, safe and reliable. Adjustable steering wheel can effectively relieve the burden of driver. |
|
|
|
|
|
Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance. |
|
|
|
|
|
The cab has front tilting design. Easy engine maintenance and repair. |
