Product Specifications
| Prod Model: |
FR-120 20T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied For: |
Pipe/Tube |
| Force: |
20t |
| Drawing Speed: |
15m/Min |
| Drawing Pieces: |
3PCS |
| Drawing Length: |
9m |
| Manner: |
Chain |
| Appearance: |
Horizontal |
| Machine Power: |
55kw |
| Brand: |
Fr |
| Techonlogy: |
Taiwan |
| Type: |
Horizontal Metal Drawing Machine |
| Usage: |
Pipe, Bar |
Product Description

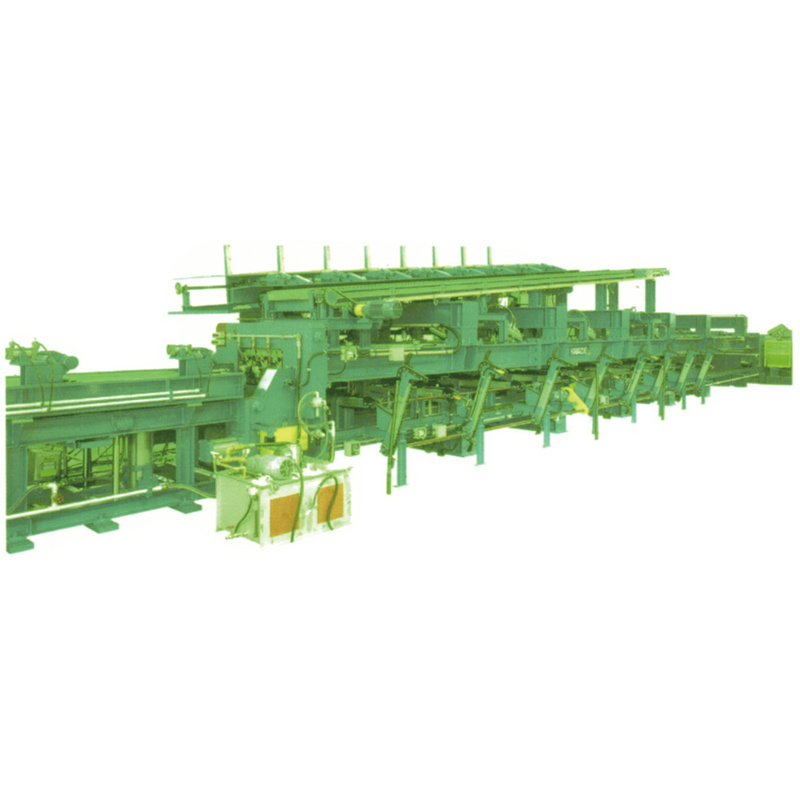

FR-120 Automatic double-chain drawing machine
FR-120 Automatic double-chain drawing machine is designed and developed by our company based on our many-year experiences of production and exploitation.
Our company is Fang-Rong Precision Machine Industry Co., Ltd. Fang-Rong Precision Machine Industry Co., Ltd. is founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines.
Features:
Cold drawing machine implement the strongly tensile or broaching for (bronze. Stainless steel. Iron. Silver. Aluminum) tube (bar) material
In the normal condition of the machine, implement the tensile strength to the ferrous metal materials (bar, tube) and non-ferrous materials (bar, pipe), it can also pull the steel, hexagonal and other shaped material, which is the professional equipment for drawing-based steel mills, steel plants, the standard factory and other machinery industries.
Metal tube (bar) material forming, tensile, pull light, broaching
| Model | FR-120 Automatic double-chain drawing machine |
| Parameter: |
|
| Rated drawing force | 20T |
| Maximum drawing length | 9m |
| Drawing speed | 15m / min |
| Drawing pieces | 3pcs |
| Motor Power | 55KW |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
