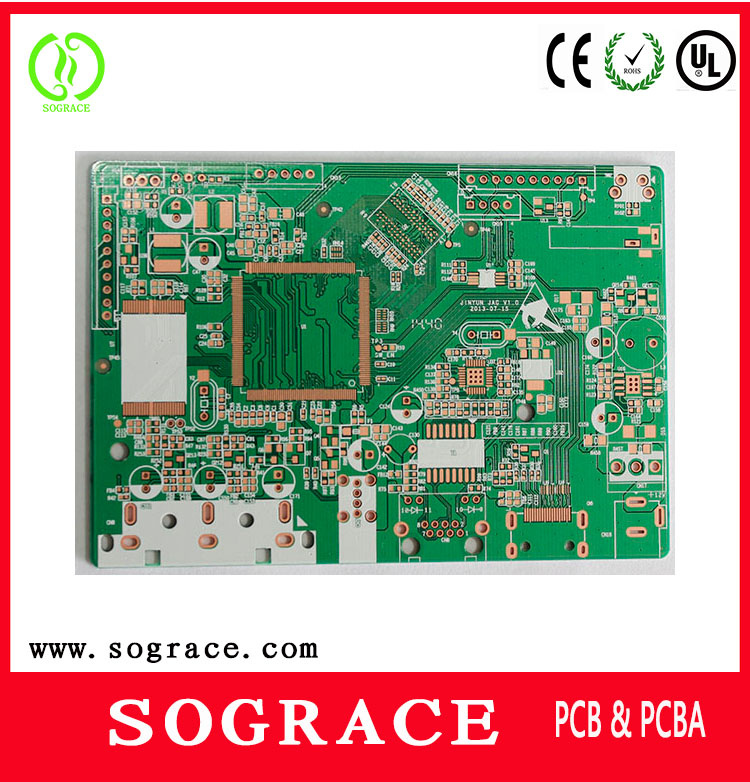

FR4 PCB Circuit Copper Board with Panel Prototype
Choose Sograce PCB, choose your perfect pcb board!
About Sograce
Sograce International Corporation Limited is a professional PCB manufacturer. It specialize in designing and producing all kinds of single side, double-side and multilayer pcb, also provide assembly service.
As a professional manufacturer in shenzhen, China, we have succeeded in releasing our PCB and PCBA products in European and American market. Our products have a good Reputation among them.
Product Feature:
1. OEM&ODM are availble, different shape for your choice
2. Programmable, it can change different colors and lighting ways
3. Green and Energy saving, best for your project
Top quality electronic pcba assembly supplier
PCBA assembly with through-hole technology &SMT mechanical assembly
1.10 years experience in PCB and PCBA
2...Low price with high quality
3. PCB certificate: ISO, , Rohs
4.100% E-tested
5. Track your oder on time
6. Lead time is manufacturing+shipping time.
We offer the following PCB assembly services:
1. Provide one-stop services from PCB TO PCBA assembly, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2. Provide PCB assembly with BGA, DIP, AI, SOP, QFN, PFP, THD, SMT, SMD, technology. Complete product assembly including structural parts, microchip programming and functional testing
3. High-precision 0201 size components SMT technology in lead-free or lead assembly process.
4. OEM/ODM electronic card assembly, print circuit board assembly (PCBA) including sourcing of components, welding, assembly and testing
Why choose us?
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Trade Terms:
1. Payment: T/T in advance (Western Union, payple is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shen zhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PCS
Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
PCB and PCB assembly Quote needed
1. PCB Gerber File
2. Bom List for PCB Assembly;
3. Send us a sample of PCBA to make the exactly same for you.
4. Test Method for PCB Assembly.
More info about PCB and PCBA, pls do not hesitate to inquiry now!
Technical Capacity |
Layer Counts |
1-24L |
Min Board Thickness(2-layer) |
0.2mm |
Max board size(mm) |
1200x400mm |
Min Board Thickness(4-layer) |
0.4mm |
Max copper |
12oz |
Min Inner-layer Thickness |
0.1mm |
Min Trace |
0.075mm |
Min Pad Ring |
0.1mm |
Min Clearance |
0.075mm |
Min Hole Location Tolerance |
± 0.075mm |
Min Hole Size(laser hole) |
0.1mm |
Min Hole Size Tolerance |
± 0.05mm |
Board Twist |
≤ 1° |
Min Outer Dimension Tolerance |
± 0.1mm |
Base Material |
FR4, High-TG FR4, CEM3, aluminum, High Frequency(Rogers, Taconic, Aron, PTFE, F4B) |
Surface Finish |
HAL, lead-free HAL, ENIG, Plated Gold, Immersion Gold, OSP |
Soldermask |
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Silkscreen |
White, Black, Blue, Yellow |
Acceptable File Format |
Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000 |
Certificate |
ROSH, ISO9001, UL |
Standard
Lead Time |
2-layer samples in about 3 days
4-layer samples in about 5 days |
Your inquiry will be answered within 24 hours.
Wishing to be your long-term partner, please feel free to contact us , we will do our best for you.
|
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.
Established in June, 2006, our factory is located in Wanxia Industrial zone, Xinhe Road, Shajing Town, Baoan district, Shenzhen, China. We have a variety of advanced production equipment, excellent engineering and technical personnel, accompanying with the mature management and service system. Since 2006, we have successfully serviced customers in the United States, Canada, Western Europe and other regions of the world spanning many applications, business lines, and industry sectors.
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce PCB and PCBA which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Our products meet IEC\IPC\DIN\MIN standard, and behave ISO-9001 quality system, UL and RoHS certificate. Fast lead time and competitive price with high quality are our advantages. Production capacity is 20, 000M2 per month, the PCB lead time is within 10days, and most can be within 7days. We also established a prototype team to meet customer' S prototype needs, and the prototype lead time often can be within 3days.
With our hard work, we always satisfy the customers' High quality demand in a fast lead time under our strict management...Following the principle of "be sincere with every customer", we treat the product quality as our life. We are glad to provide you one-stop services from schematic capture and routing, PCB producing to SMT.
"High quality, Competitive price and Excellent service" is our mission which also wins the customers' Trust. Our purpose is to produce the most effective product under the advisable cost. All our consideration is built on customers' Benefit, and we benefit mutually from the business cooperation. Basing on this point, we have built a long term business relationship with lots of customers around the world, just like a blooming flowers. Warmly welcome more customers to visit and cooperate with us!
