Product Specifications
| Prod Model: |
GA-GPS/GLONASS-278 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

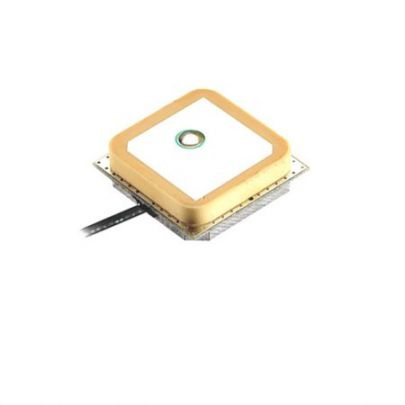

(1) Dielectric Antenna
Frequency(MHz): 1575/1602
Center Frequency(MHz): 1590
VSWR: 1.5: 1
Bandwidth(MHz): ± 5
Impedance(Ω): 50
Peak Gain >3dBi Based on 7cm× 7cm ground plane
Gain Coverage >-4dBi at -90'<0 <+90'(over 75% Volume)
Polarization: RHCP
(2) LNA/Filter
LNA Gain (Without cable) (dBi): 28 Typical
Noise Figure(dB): 1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V): 2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA): 11Max
(3) Mechanical
Weight(gram)<110
Size(mm): 27X27X8.2mm
Cable Length(cm): 5-20
Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting: Magnetic base
Housing: Black
(4) Environmental
Working Temp: -40'C~+85'C
Storage Temp: -45'C~+100'C
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof: 100%Waterproof
Guangzhou G-Antetech Telecom Antenna Factory is a high-tech company in Guangzhou Province. It locates on Guangdong-Hongkong Economy and Development zone. The company is professionally engaged in R$D, designing, manufacturing and selling GPS glonal position Products.
Main products: GPS Antennas, GPS/GSM antennas, GSM antennas, GPS/GSM/WiFi Antennas, GPS/GSM/FM/AM Antennas, GPS/WiFi Antennas, GPS/FM/AM Antennas, WiFi Antennas, XM Antenna, TMC Antenna, 4G LTE Antenna, RF Connector and all kinds of RF Cables.
Company has his own several patents. Antenna serial products acquire New and high technology Prize in Guangdong Province. And win National New product creation Fund. The corporation has passed ISO9001: 2000 Certificate. The products pass CE certificate and in compliant with RoHS directive. It is one of the professional manufacturers in high frequency antenna field.
