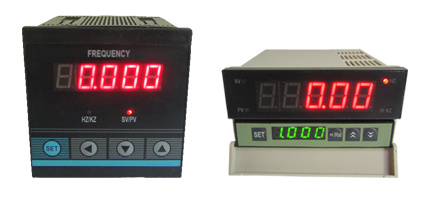

Frequency Signal Generator (GF)
| Price: |
US $ 2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
GF8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
90-260V AC/DC |
| Aux Power: |
24V/40mA |
| Control Output: |
5V Level or Oc Gate |
| Communication: |
RS485 / RS232 Modbus RTU Protocol |
| Frequency Range: |
0.01Hz-100.00Hz 0.1-10.00Hz 0-100kHz |
| Accuracy: |
0.01%F.S |
| Insulation Resistamce: |
>100m Ohm, (DC 500V Between Terminal and Outshell) |
| Withstand Strength: |
AC 1500V/1min(Between Terminal and Outshell) |
| Weight: |
About 350g |
Product Description
1, Dual line display & Intelligent settable digital output, such as: 0.01-10.000Hz, 1Hz-100kHz. Outpu: Square wave, duty cycle: 50%; Steady performance, dedicate in size, easy to carry; Widely used in industrial facture-debugging, factory/lab/PC remote control system, etc...
2, Accuracy: 0.05%, 5 digital output and measuremetn in-phase. As well as 0-100kHz input measurement
3, Output: Open collector, load current 60mA. Auxiliary power: 24V/80mA.
4, Standard RS232/RS485 communication interface, MODBUS RTU protocol. Can connect to other equipments/PC/PLC for remote control.
5, Power supply: Regular: 90-260VAC/DC, Others: 12--30V AC/DC.
6, Size: GF4: 48*48*80 GF6: 48*96*80 GF8: 96*48*80
GF7: 72*72*100 GF9: 96*96*100.
Case class: IP65.
|
Model |
LED display |
Output mode |
Communication |
Frequency range |
Power |
|
GF8-T2 |
5 digits |
OC Gate |
None |
1-100KHz |
220V AC |
|
GF8-T1 |
5 digits |
OC Gate |
None |
1-10.0KHz |
220V AC |
|
GF8-T42 |
5 digits |
OC Gate |
RS485 |
1-100KHz |
220V AC |
|
GF10-T20 |
5 digits |
OC Gate |
RS232 |
0.01-100.00Hz |
220V AC |
