Front End Loader with Wood Grapple Zl20f
Price: |
US $ 3000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |

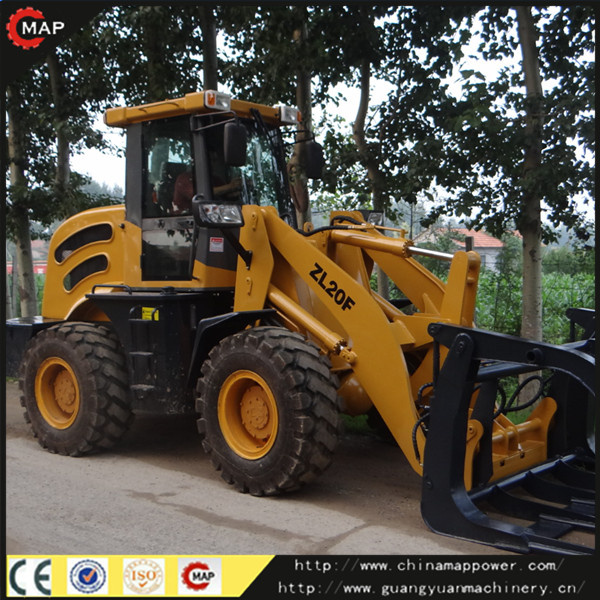

front end loader with wood grapple ZL20F
Application
The ZL20F wheel loader is used for loading or transporting sands, coal residue, and sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto truck of 3-5tons to load and unload goods, and can conduct bulldozing, digging hoisting and other operations.
Performance Features
The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation, and achieves higher economical and production efficiency.
The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieves short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantage of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment.
The wheel loader offers the drivers a comfortable drive and wide view.
Wheel loader model | ZL20F |
Engine Details | Model | Weichaihuadong 4102, 4105 or as customer' s requirment |
Engine Type | In-line arrangement, Water cooled, 4 cycle diesel engine |
Rated Power | 59kw |
Rated Speed | 2400rpm |
Buchet | Bucket Capacity | 1.0m³ |
Bucket Type | Heavy-duty bolt on teeth |
Max. Breakout Force | 50KN |
Rated Load Weight | 2000kg |
Operating Weight | 4500kg |
Overall Dimensions | Overall Length | 5600mm |
Overall Height | 2850mm |
Overall Width | 1800mm |
Max. Discharge Height | 3000mm |
Wheel Base | 2350mm |
Tread | 1500mm |
Operating Specification | Steering system | Articulated Frame with Hydraulic steering |
Min. Turning Radius | 4600mm |
Transmission | Hydraulic convertor |
Brake System | Service Brake | Four wheel Hydraulic spread-shoed brake |
| Parking Brake | Hand Operated |
Tyre | 16.70-20 |
Prod Model: |
zl20f |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Loader Rated Load: |
2000kg |
Wheel Loader Bucket Capacity: |
1.0cbm |
Wheel Loader Dimension: |
5600*1800*2850mm |
Wheel Loader Accessories: |
Available, Forks, 4 in 1 Bucket.Ect |
Steering System: |
Hydraulic Power Steering Wheel Loader |
Wheel Loader Engine: |
Weichai 4102/4105 Diesel Engine |
Max. Discharge Height: |
3000mm |
Transmission Of Wheel Loader: |
Hydraulic Converter |
Wheel Loader Tire: |
16.70-20 |
Type: |
Small Loader |
Walking Mode: |
Wheeled |
Load And Unload Method: |
Front Discharge |
Certification: |
CE |
Condition: |
New |
Color: |
Red, Yellow, Green.Ect |
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.
We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...
Our main products list.
Agricultural machinery:
1. Tractor from 18HO-130HP
2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.
Construction machine:
Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.
Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services
With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
