Product Specifications
| Prod Model: |
W156 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Front Loader: |
Wheel Loader |
| Rated Load: |
5000kg |
| Bucket Capacity: |
3m3 |
| Engine: |
Cummins or Cat C6121 |
| Gearbox: |
Zl50 |
| Tyre Size: |
23.5-25 |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

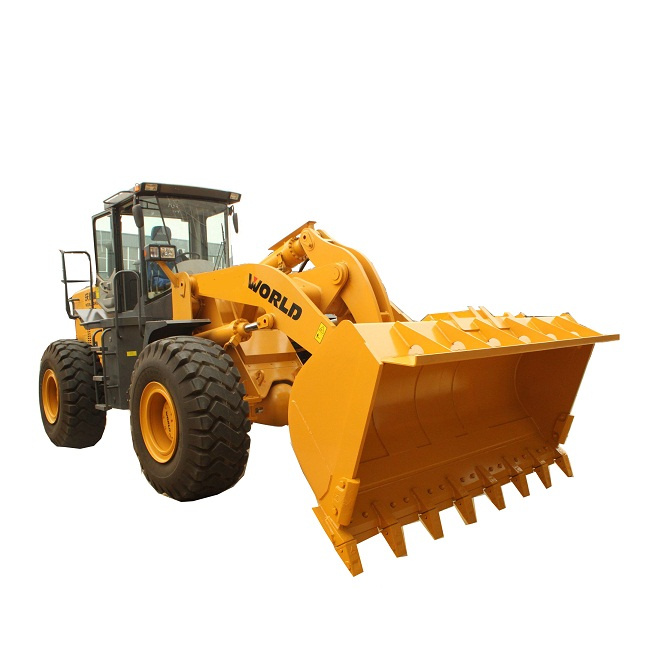

front loader
W156 wheel loader is a 5ton rated load loader with the bucket capacity from 2.5cbm to 3.6cbm. The longer 3427mm wheel base and bigger bucket cylinder provide bigger break out force and better stability. Self designed and produced structure fames and working equipments all use best steel material with good strength and tensile property. Computer finite element analysis ensures the design is reasonable. High quality welding and shot blasting treatment eliminate the welding stress effectively. Best hydraulic systems and transmission systems provide high efficiency and the total working cycle time is less than 11.1 second. Spacious cabin with air conditioner, shock absorbing seat with safety belt, radio and speaker provides comfort operation environment.
Specifications
| Basic Data |
| Bucket Capacity | 3.0m³ |
| Rated Load | 5000kg |
| Travelling Speed |
| Forward 1st | 0-11.5km/h |
| Forward 2nd | 0-37.5km/h |
| Reverse 1st: | 0-17km/h |
| Max. Traction | 165kN |
| Max. Break Out Force | 150kN |
| Wheel Base | 3427mm |
| Min. Turning Radius (outside tires) | 6700mm |
| Max. Dumping Height | 3100mm |
| Max. Reach | 1200mm |
| Total Hydraulic Cycle Time | ≤11.1s |
| Full Bucket Lifting Time | 5.7s |
| Dimensions (LxWxH) | 8075x2960x3500mm |
| Min. Clearance Over Ground | 450mm |
| Operating Weight | 16200kg |
| Diesel Engine |
| Model | CUMMINS 6CTA8.3 or CAT6121 or WEICHAI WD10G |
| Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
| Rated Output | 162/162/160kW |
| Rated Speed | 2200rpm |
| Max. Torque | 855/908/860N.m |
| Transmission |
| Hydraulic Torque Converter Model | Single stage, two phase, four components |
| Transmission Type | 2 forward and 1 reverse gears/hydraulic power shift, planet type |
| Max. Permissible Temp. | 120 |
| Transaxle & Tyre |
| Drive System | 4 wheel drive |
| Type of main Reducer | Spiral bevel gear, single stage |
| Type of hub Reducer | Planet gear |
| Rear Axle Oscillation | Center oscillation |
| Tyre Size | 23.5-25 |
| Pressure Of Tyre | 0.28-0.32MPa |
| Working Hydraulic System |
| Working Pump Type | Gear Pump |
| System Working Pressure | 17 MPa |
| Working Pump Max. Flow Rate | 328 l/min |
| Lifting Cylinder Bore x Stroke | 165x757mm |
| Tilting Cylinder Bore x Stroke | 200x540mm |
| Steering System |
| Type | Articulation, full hydraulic power steering system with flow-amplified system |
| Steering Pump Type | Gear pump |
| Max. Flow Rate | 43L (1920r/min) |
| Max. Working Pressure | 12MPa |
| Steering Cylinder Bore x Stroke | 100x342mm |
| Max. Steering Angle | 35° |
| Brake System |
| Type | Caliper disc brake, air over oil activate, 4 wheel brake |
| Drive Brake System Pressure | 0.71-0.784MPa |
| Parking Brake | Hand brake, drum type |
| Oil Injection Capacity |
| Fuel Tank | 300L |
| Engine Oil | 30L |
| Transmission | 45L |
| Hydraulic Oil Tank | 200L |
| Transaxle | 30L |
