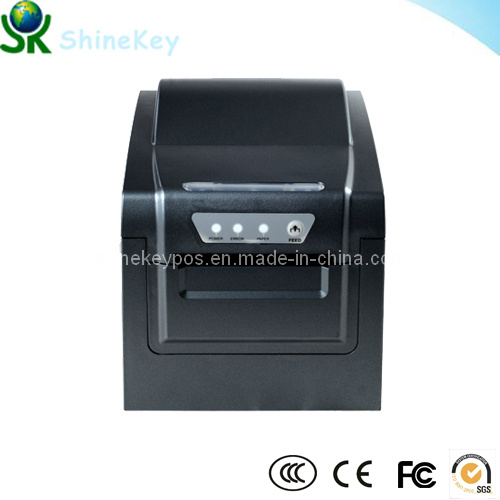

HOT SALE------80mm Thermal Receipt Printer80mm direct thermal receipt printer supporting interface LAN+USB+Serial
High-end front paper loading printer
Sealed quake-proof structure to avoid unnecessary losses and oil contamination in carrying or bad weather
With integrating the flip and front face, easily maintainance
Circular arc flip outside, high paper volume with 80~120mmFeatures:1.80~120mm huge
2. Printing image and characters with high speed, quality, performance
3. Support GB18030 simplified Chinese, traditional Chinese, buyer's language
4. Support printer states minitor function, control printer's states at any time
5. Partial/full option, no paper jamming problem, multiple choice for customer
6. Support print prompt and error alarm
7. Driving high speed download printing mode, support linux system
8. Support black mark orientation, overtype function
9. Support 256K bytes NV logo download store and print
10. Support Serial, USB and 100M Ethernet interface
Technical parameters:1. Item No.: SK C260M
2. Printing method: Direct thermal
3. Paper width: 79.5± 0.5mm
4. Resolution: 576dots/line or 512dots/line
5. Printing speed: 230mm/sec
6. Interface: Serial+USB+LAN
7. Auto cutter: Whole or Partial
8. Printing paper: 79.5± 0.5mm× φ 83mm
9. Line spacing: 3.75mm(Use command modifies line spacing)
10. Column number: 80mm paper: FontA-42 olumns or 48 olumns/FontB- 56columns or 64columns/Simplified Chinese, traditional Chinese-21columns or 24columns
11. Character size: ANK, FontA: 12× 24dots, FontB: 9× 17dots Simplified Chinese, traditional Chinese: 24× 24dots
12. Extension character sheets: PC347(Standard Europe), Katakana, PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, IranII, Latvian, Arabic, PT151(1251)
13. Barcode types: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ ITF/ CODABAR/ CODE93/ CODE128
14. Input buffer: 64k bytes NV Flash: 128k bytes
15. Cash drawer control: DC 12V/1A
16. Power supply: Input AC 110V/220V, 50~60Hz
17. Power adapter: Output DC 12V/2.6A
18. Weight: 1.45kg
19. Dimension: 224.5× 150× 161mm
20. Color: Black
21. Working environment: Temperature (0~45° C) humidity(10~80%)
22. Storage environment: Temperature (-10~60° C) humidity(10~90%)
23. Printing head lifetime: 100km
Application fields:Shops, Supermarket, Catering, Hotel, Stock market, Hospital, Air sevices, Warehouse, Public entertainment, Cinema, etc.
|
80mm thermal receipt printer |
|
Printing details |
|
Printing method |
Direct thermal |
|
Model No. |
C260M |
|
Paper width |
79.5±0.5mm |
|
Resolution |
576dots/line or 512dots/line |
|
Printing speed |
260mm/sec |
|
Interface |
Serial+USB+LAN |
|
Printing paper |
79.5±0.5mm×φ83mm |
|
LineSpacing |
3.75mm(Use command modifies line spacing) |
|
Column number |
80mm paper: FontA-42columns or 48columns/FontB-56 columns or 64columns/Simplified Chinese, traditional Chinese-21columns or 24columns |
|
Character size |
ANK,FontA:12×24dots,FontB:9×17dots Simplified Chinese,traditional Chinese:24×24dots |
|
Barcode Character |
|
Extension character sheets |
PC347(Standard Europe)\Katakana\
PC850(Multilingual)\PC860(Portuguese)\
PC863(Canadian-French)\PC865(Nordic)\
West Europe\Greek\Hebrew\East Europe\Iran\
WPC1252\PC866(Cyrillic#2)\PC852(Latin2)\
PC858\IranII\Latvian\Arabic\PT151(1251) |
|
Barcode types |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128 |
|
Buffer |
|
Input buffer |
1024k bytes |
|
NV Flash |
256k bytes |
|
Power supply |
|
Power supply |
Input: AC 110V/220V,50 ~ 60Hz |
|
Power adapter |
Output: DC 24V/2.5A |
|
Cash drawer control |
DC 24V/1A |
|
Physical characteristics |
|
Weight |
1.45kg |
|
Dimension |
224.5×150×161 mm |
|
Environmental Requirements |
|
Working environment |
temperature (0 ~ 45°c) humidity(10 ~ 80%) |
|
Storage environment |
temperature (-10 ~ 60°c) humidity(10 ~ 90%) |
|
Lifetime |
|
Reliability |
100km |
