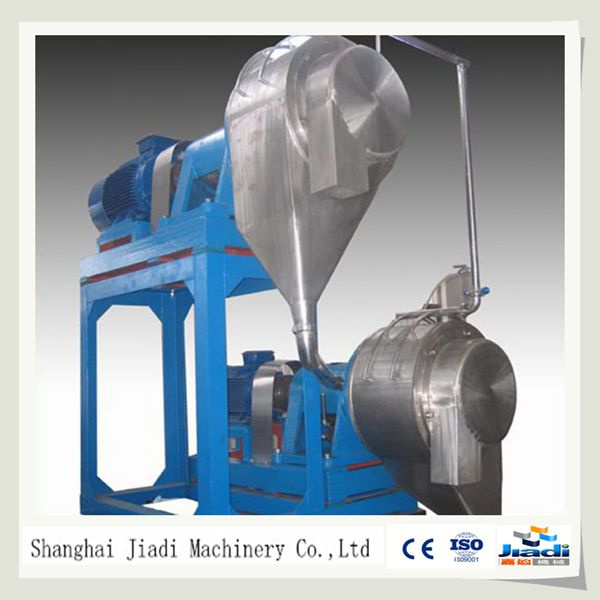

Fruit Pulping Machine,Fruit Pulper,Fruit Pulp Making Machine
The fruit pulping machine/pulper is applicable to pulp the tomato,onion,chili,strawberry,blackberry and carrot which has been destroyed enzyme in the previous procedure.
Technical Explanation:
1.The fruit pulp making machine brings in the foreign advanced technology and adopts of dual or single way taper screen structure. It can prevent block the screen.
2.Fruit pulping machine has a good effect of separating juice and dirt. The screen is adopt of friction proof material and has a long life.
3.There is a butter tank at the bottom with liquid level controller. It can achieve continuous control on line to convey the material well distributed to the concentrator.
Technical Parameter
Model |
JD-DJ-5 |
JD-DJ-20 |
JD-DJ-30 |
JD-DJ-40 |
Capacity(kg/h) |
5000 |
20000 |
30000 |
40000 |
Power( kw) |
11 |
22/15 |
30/15 |
37/22 |
Screen mesh diameter(mm) |
0.8-1.2 |
0.8-1.5 |
0.8-1.5 |
0.8-1.5 |
Dimension(mm) |
1500×830×1840 |
1700×900×2950 |
1800×900×2950 |
1900×950×2950 |
Material |
304/Q235 |
304/Q235 |
304/Q235 |
304/Q235
|
