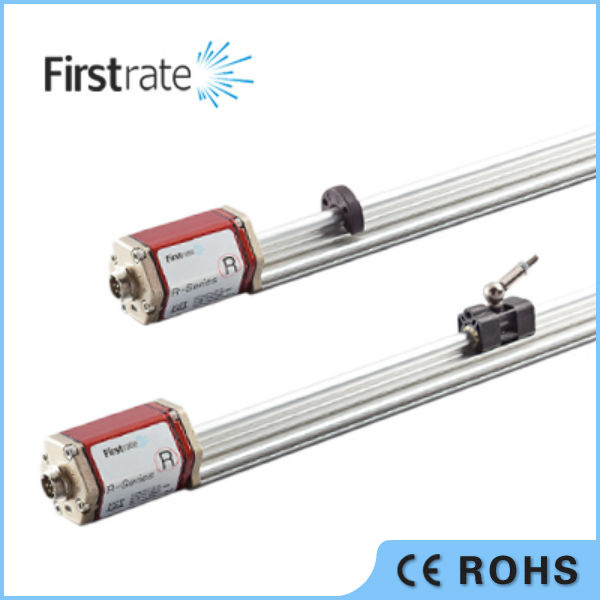

FST-RP Aluminum Shell Magnetostrictive Displacement Sensor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
FST-RP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industrial |
| Testing Range: |
50-5000mm |
| Pressure Signal: |
0~10VDC 0~10VDC |
| Current Signal: |
4~20mA 20~4mA |
Product Description
FST-RP Aluminum Shell Magnetostrictive Displacement Sensor Product Features
- Solid and firm, Fully closed design
- Linear measurement, absolute value output
- LED lamp diagnostic function
- Noncontact measurement, no abrasion
- Analog signal or digital signal output
- Double magnet position measurement.
Applicable Scope
- Metallurgical equipment, wind power generation
- Engineering machinery, rubber machinery
- Port Machinery, injection molding machine
- New energy
Technical Indexes
Project | Parameter |
Technical Index | Testing Data | Position |
Testing Range | 50-5000mm |
Pressure Signal | 0~10VDC 0~10VDC(Minimum load of controller: >5KΩ) |
Current Signal | 4~20mA 20~4mA(Minimum /Max load: 0/500Ω) |
Digital Signal | SSI CANBUS MODBUS PROFIBUS |
Resolution | 16bit D/A |
Non-linearity | ±0.03%FS ±0.05%FS |
Repeat accuracy | ±0.001%FS |
Updated Time | 0.5ms( Travel <1200mm)/1.0ms(Travel <2400mm) |
2.0ms(Travel <4800mm)/5.0ms(Travel <7600mm) |
Working Temperature | -40~+85°C |
Humidity/ dew point | Humidity 90%RH,Non-condensate |
Environmental Protection | IP65 |

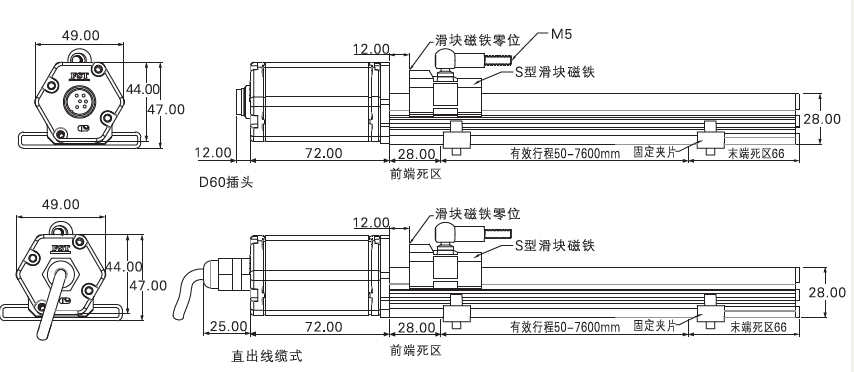

Dimension:
Buying GuidesIn order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
- what is your medium: gas, water or other ... ?
- sensor: pt100 or pt1000 ?
- tesing range:
- output: 4-20mA , 0-5V or ....?
- screw: G1/4, 1/4NPT, R1/4, M20*1.5.....?
- electrical connection: DIN43650, Packard, Direct lead ..... ?
- rod dia: 6mm or 8mm or... ?
- rod length: 50mm or ... ?
- Whether need cable ?
- quantity: ?
- price items: CIF or Exw or FOB ?
- Your complete company name,address, post code,contact person, tele, fax etc.
Our service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 7-10 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. 7 days free replace & 1 year free repair for quality warranty
