Fst700-206 Float Oil Level Sensor
| Price: |
US $ 20-40/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |

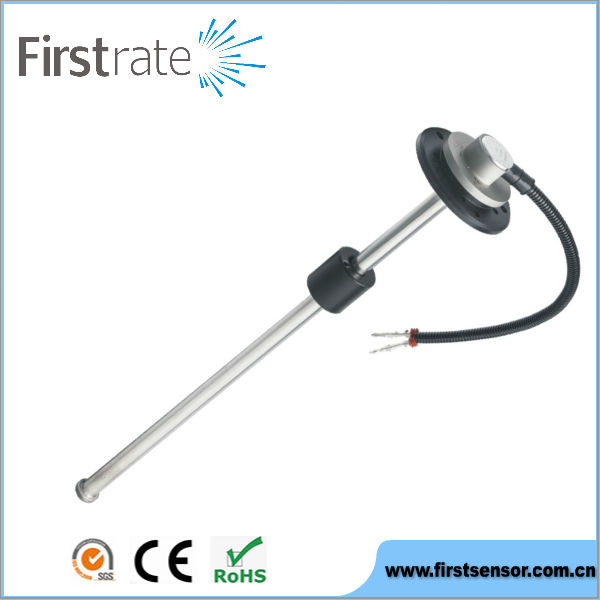

Fst700-206 Float Oil level sensor
Fst700-206 Fuel & Water level sensor is based on the principle of reed switch to test liquid level. When liquid level changes, the float will move up & down, the magnet built in the float will drive the reed switch, and the signal output will change immediately, liquid level change can be displayed by displayer. Only the float is a ocomotive part in the whole products, this can minimized reduce the mechanical problem and realize accurate level testing.
Feature:Simple construction, easy installationexcellent corrosion resistance, life long serviceAccurate signal output, good shockproofMultiple length optionalTechnical IndexTesting medium: petrol, kerosene, gasoline, hydraulic oil, biodiesel, waterTesting range: an interval of 25mm within 100~300mm An interval of 50mm within 300-1000mm > 1000mm, should be customizedOutput: 0-190, 240~30 or customizedResolution: 6~40mmrated power: 125mv/vWorking temperature: -40~+85°CStorage temperature: -40~+90°CInstallation: 5 hole SAEElectrical connection: AMP or customizedMaterial : Stainless steelIP rating: IP67Application:1. The liquid level testing of automobile or ship tanks2. The liquid level testing of engineering machinery, mechanical, or chemical tanksCompany Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 42years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service ?
A: Yes, we can offer OEM service and make the laser logo marking for you . But the minimum quantity is 100pcs for the first order .
Q: What is your delivery time ?
A: It is in about 7-9 working days since the payment confirmed . If quantity more than 100pcs /order, it will be add 3-5 days more .
Q: What payment ways do you accept ?
A: You can pay us by T/T , PayPal , and West Union .
Q: Do you offer free samples ?
A: Sorry , we do not offer free samples .
Q: Could we make a visit to your factory ?
A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
Q: How is your quality assurance service?
A: Our service is free exchange within three month and one year maintenance guaranteed for Non-human damage
Q: What is your normal delivery way?
A: Goods will be sent DHL / FEDEX / UPS / EMS / TNT / China Post
| Prod Model: |
FST700-206 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
0-100....1000mm |
| Output: |
0-190 Ohm, 240~30 Ohm or Customized |
| Resolution: |
6~40mm |
| Rated Power: |
125mv/V |
| Working Temperature: |
-40~+85°c |
| Storage Temperature: |
-40~+90°c |
| Installation: |
5 Hole SAE |
| Electrical Connection: |
AMP or Customized |
| Output Signal Type: |
Risistance |
Firstrate Sensor Co., Ltd., is a hight-tech joint venture specialized in researching, manufacturing, and sales of sensors. Our products include Pressure Transmitters, Temperature transmitters, Liquid-level Transmitters, Wind Speed and Direction Transmitters, and Intelligent Control Instruments. They are widely used in the field of aviation, aerospace, national defense, military project, engineering machinery, railway, urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control.

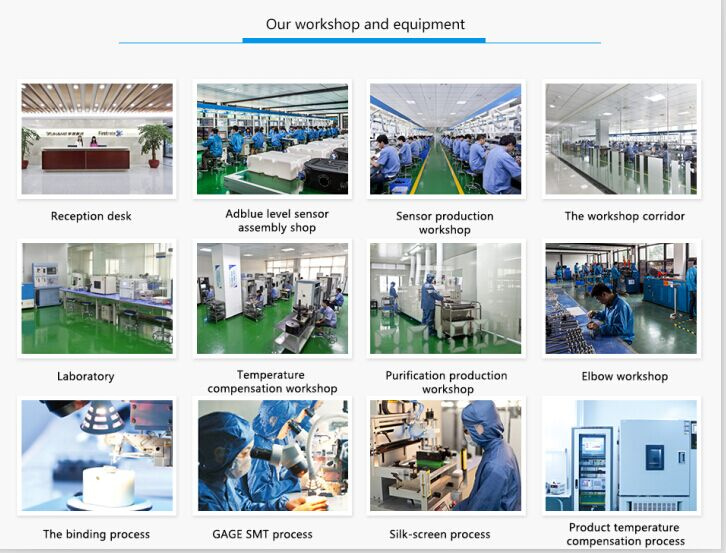

Firstrate currently employs nearly 300 people, more than 70% employees have bachelor degree or above, and cover an area of more than 20000 square meters. The company has now implemented the quality management system of ISO9001-2008, and with advanced technique & equipment, comprehensive product test method. Our advanced technique, high quality products, and fast delivery have earned us good reputation among customers from home & abroad. Our products have been exported to more than 40 countries and regions such as US, Germany, Italy, Russia, South Korea, and India. We also provide OEM/ ODM service for customers around the world.
Firstrate is committed to the research and development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique, Bus -technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 6 national invention patents, 20 plus utility-model patents. And have got the certificates of CMC, CE, Safety and Flame-proof certification and RoHS.
